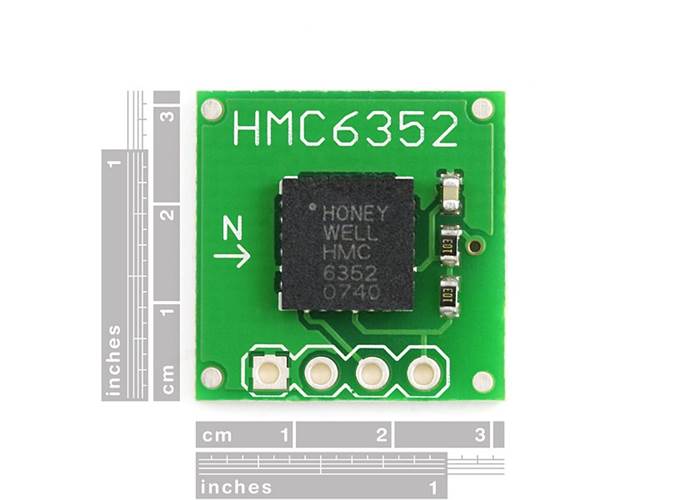

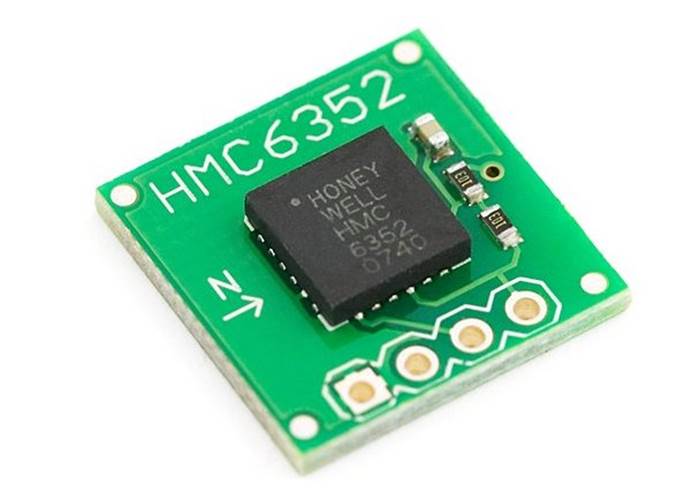

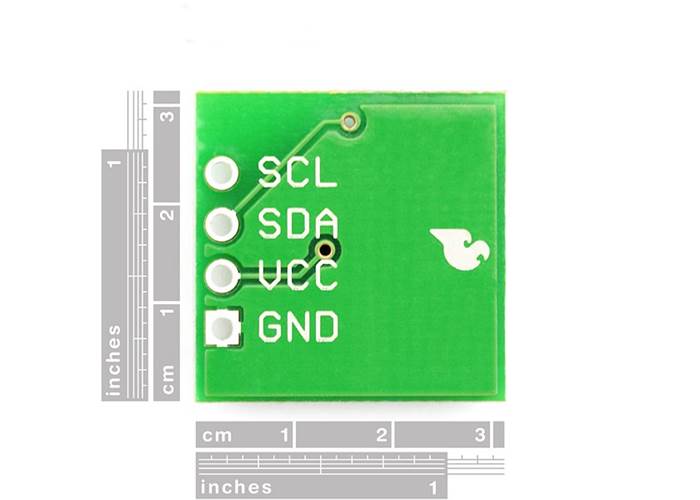

Honeywell HMC6352 Compass Module breakout board

With the addition of a breakout board the surface mount Honeywell HMC6352 IC becomes a compass module ready to plug into any project. Using an I2C interface the module is able to communicate with most microcontrollers.

Discontinued

No Stock Available

Our Code: MCU-60028

Supplier Link: [SparkFun MPN:SEN-07915]


Overview

This is a very simple breakout board for the popular HMC6352. Remember the KISS mantra? We really enjoy the simplicity and ease of use with the HMC6352. If you need simple, clean, degree resolution compass heading, this is the way to go.

Features:

  • Simple I2C interface
  • 2.7 to 5.2V supply range
  • 1 to 20Hz selectable update rate
  • True drop-in solution
  • 0.5 degree heading resolution
  • 1 degree repeatability
  • Supply current : 1mA @ 3V

Documents:

Dimensions: 0.6x0.6" (15x15mm)
