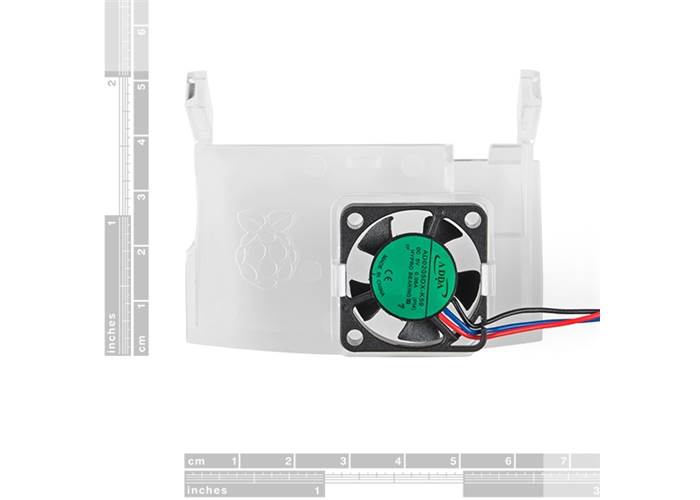

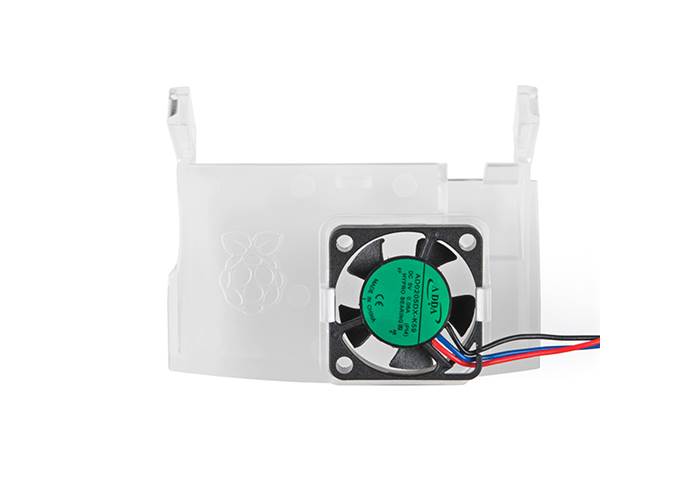

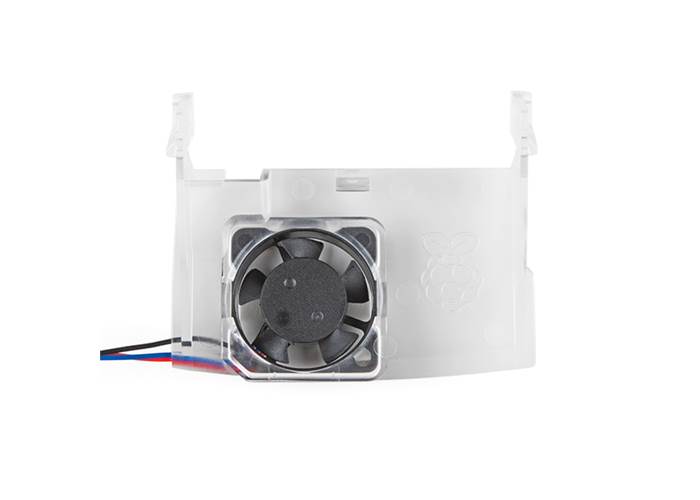

Raspberry Pi 4 Case Fan

The Raspberry Pi 4 Case Fan works with Raspberry Pi 4 and the Raspberry Pi 4 Case. Designed for overclockers and other power users, it keeps your Raspberry Pi 4 at a comfortable operating temperature even under heavy load.

The temperature-controlled fan delivers up to 1.4 CFM of airflow over the processor, memory, and power management IC. The bundled 18mm × 18mm × 10mm heatsink with self-adhesive pad improves heat transfer from the processor.

Includes:

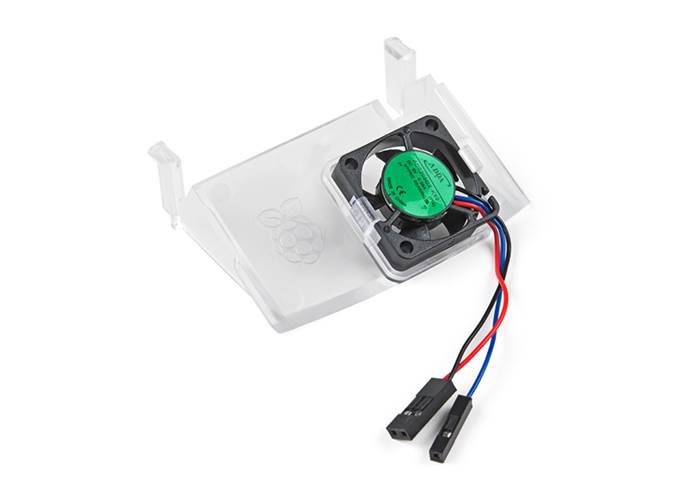

• Fan in clear PC Case with Wire Leads.
• Fin Style Heat Sink with Adhesive Thermal Tape.

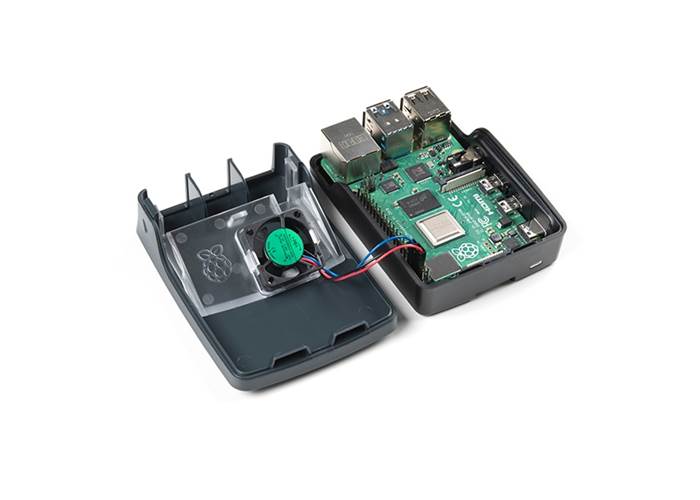

• Designed to fit in the Raspberry Pi 4 Official Case.
• 18mm × 18mm × 10mm heatsink with self-adhesive pad improves heat transfer from the processor.
• 5V Input Voltage (via 40 pin GPIO Header)
• Pulse width modulation speed control via user-selectable GPIO pin
• 1.4CFM Max Airflow
• Clear PC Fan Case

• Assembly Instructions
• Raspberry Pi Resource Page
