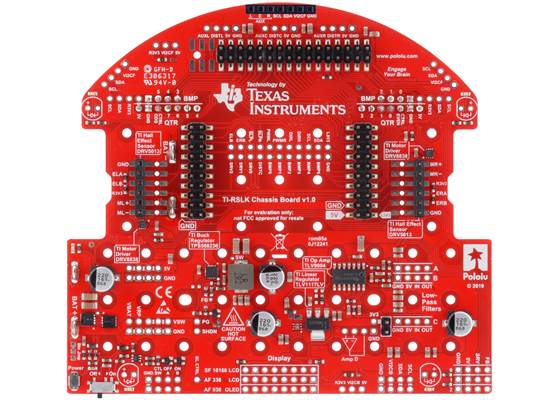

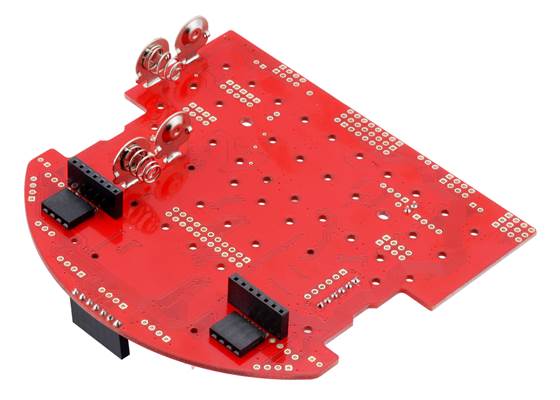

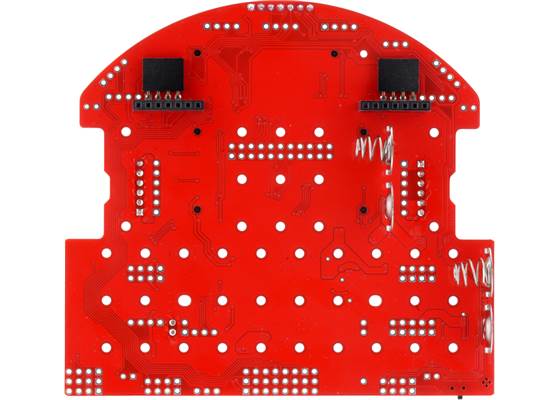

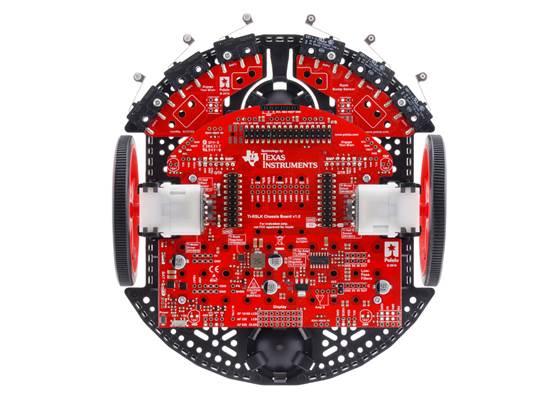

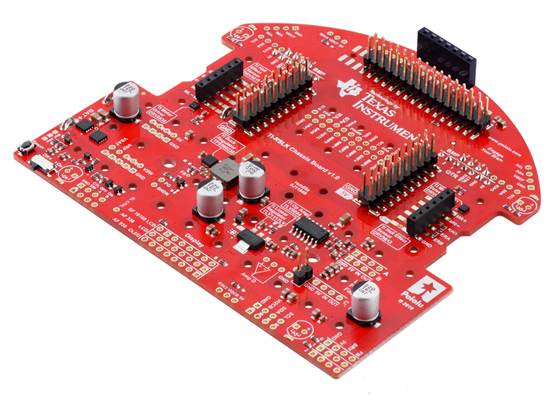

This is the main board for the Pololu Chassis Kit for TI-RSLK MAX , made available for replacements. It ships with the single battery contacts already soldered in, so no soldering is required to use it. Four #2-56 3/16″ screws and nuts are included for mounting the board to the Romi chassis.

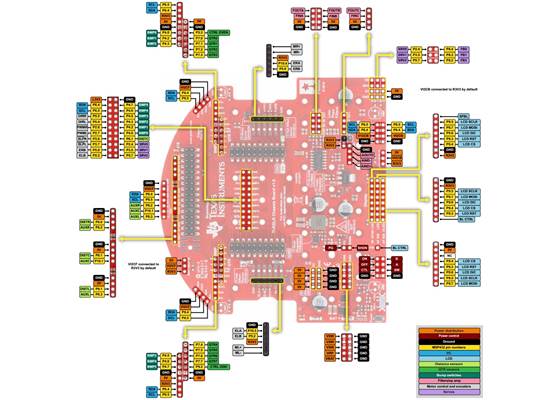

Pinout diagram for the TI RSLK MAX Chassis Board v1.0 Assembly.
This diagram is also available as a downloadable pdf (475k pdf).
| Weight: | 48 g |
|---|
| PCB dev codes: | rom05a |
|---|---|
| Other PCB markings: | 1J12241 |
