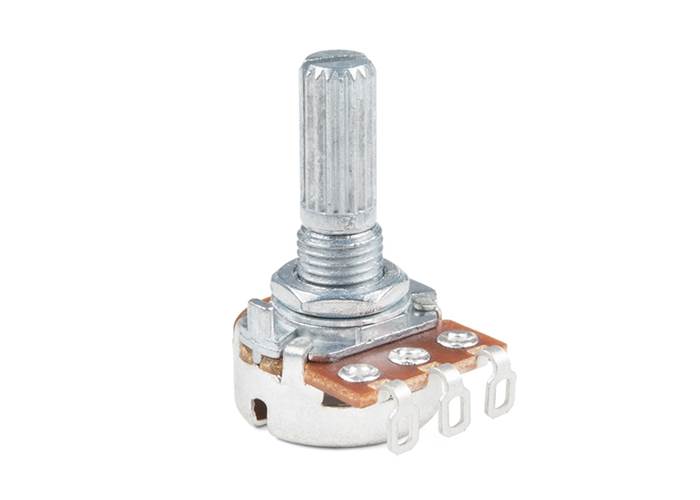

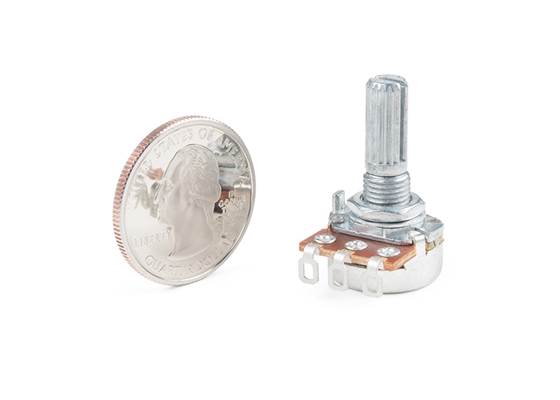

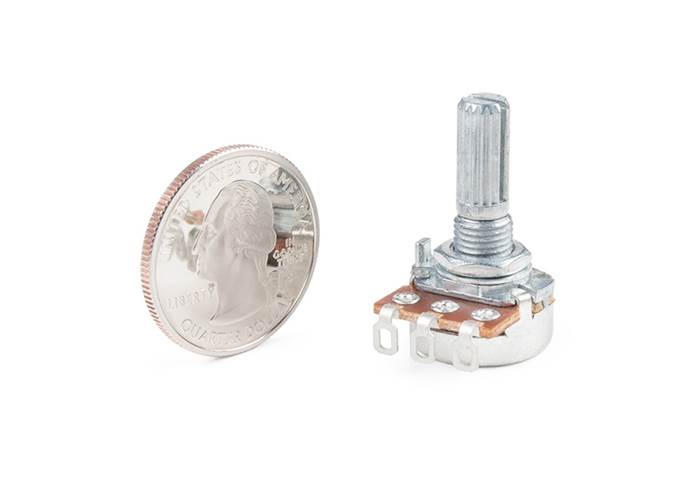

Rotary Potentiometer - 100k Ohm, Linear (Panel Mount)

AUD $1.65

Order As Required

Back orders: Ship 371 units in 7 days

Our Code: SKU-004621

Supplier: [SparkFun MPN:14622]

An adjustable potentiometer can open up many interesting user interfaces. With this rotary potentiometer just turn the dial and the resistance changes. This potentiometer from Bourns has a ¼" metal knurled shaft diameter, solder lug terminals, no detents, and has a 100K linear taper.


Description

An adjustable potentiometer can open up many interesting user interfaces. With this rotary potentiometer just turn the dial and the resistance changes. This potentiometer from Bourns has a ¼" metal knurled shaft diameter, solder lug terminals, no detents, and has a 100K linear taper.

Connect VCC to an outer pin, GND to the other, and the centre pin will have a voltage that varies from 0 to VCC depending on the rotation of the pot. Hook the centre pin to an ADC on a microcontroller and get a variable input from the user!

Includes:

  • 1x Rotary Potentiometer - 100k Ohm, Linear
  • 1x Mounting Nut
  • 1x Washer

Resources
