With possible gear ratios of 39.6:1, 47.6:1, 61.7:1, and 74:1, the Tamiya 72007 4-Speed High-Power Gearbox is well-suited for most applications that require a balance of speed and torque.

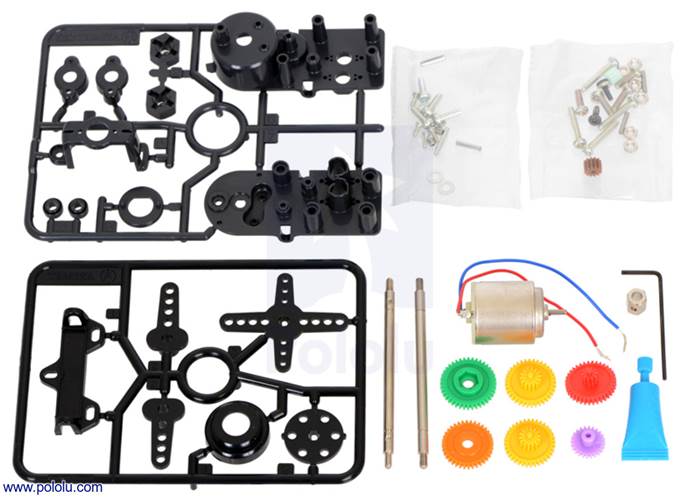

The Tamiya 72007 4-Speed High-Power Gearbox kit includes one brushed DC motor and all the gears and parts to build any of the four possible gear ratio configurations: 39.6:1, 47.6:1, 61.7:1, 74:1. The four gear ratio options give you the flexibility to choose the best speed and torque for your project.

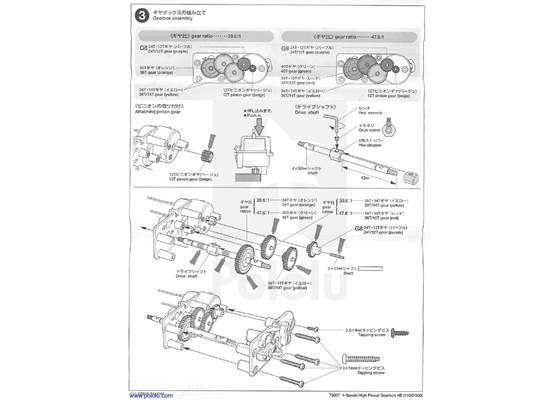

The kit includes step-by-step illustrated instructions in both Japanese and English. A scanned copy of the instructions is available on the Pictures tab. The kit can be built with just a screwdriver, but the instructions recommend having side cutters, pliers, and a modelling knife on hand.
This gearbox has a 4 mm diameter, round output shaft, which works with the wheels that are compatible with Tamiya 4 mm, round shafts and our 4 mm universal mounting hub. Our 3 mm universal mounting hub also fits on the smaller threaded end of the shaft, although it is not specifically intended to work with this type of shaft (the hub’s set screw could damage the thread on the shaft).
The low-voltage motor in this gearbox runs on 1.5-4.5 volts and draws up to a few amps when stalled, making it compatible with our DRV8833 motor driver carrier if appropriate precautions are taken to avoid stalling the motor.
The mounting holes on the gearbox are compatible with the Tamiya 70098 universal plate set and other Tamiya construction series products.
Note: The Tamiya 70203 Low-Current Motor Gearbox is a kit; assembly is required.
Typical operating voltage: | 3 V |
---|---|
Gear ratio options: | 39.6, 47.6, 61.7, 74.0 :1 |
Free-run motor shaft speed @ 3V: | 9400 rpm1 |
Free-run current @ 3V: | 150 mA2 |
Stall current @ 3V: | 2700 mA |
Motor shaft stall torque @ 3V: | 0.97 oz·in3 |
