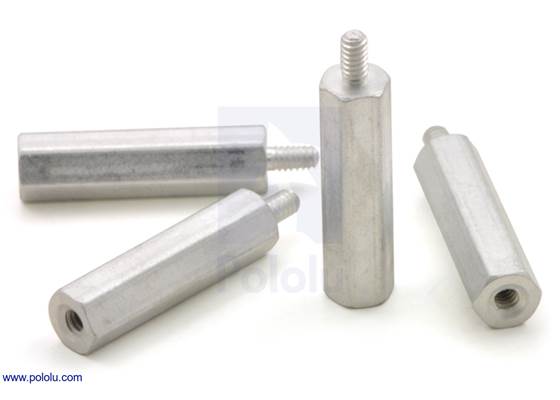

These hexagonal male-female aluminium standoffs keep parts spaced 0.75" (19 mm) apart and are great for building a multi-level robot chassis.Both ends of these 3/16" -wide standoffs have 2-56 threads. The standoffs are sold in packs of 4 .
Special Order
Shipping from $7.90
+72 more from our supplier in 7-10 days
Our Code: SKU-002912
Supplier Link: [Pololu MPN:1943]

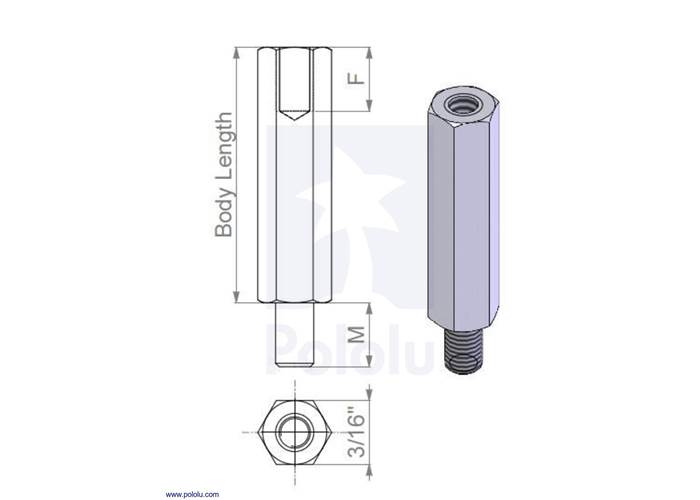

Mechanical drawing of male-female standoff

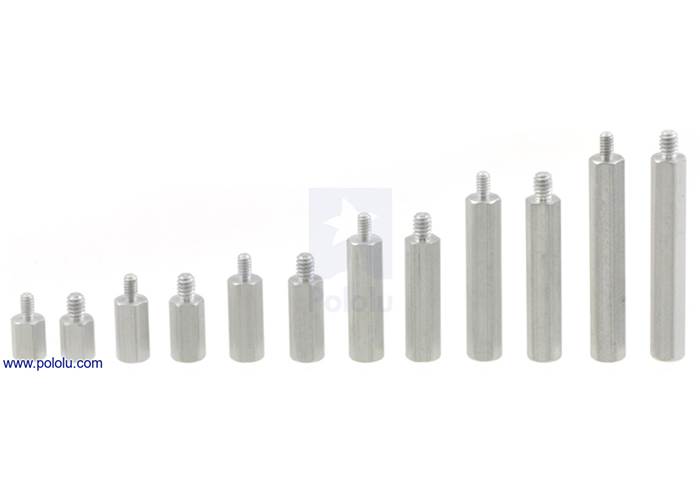

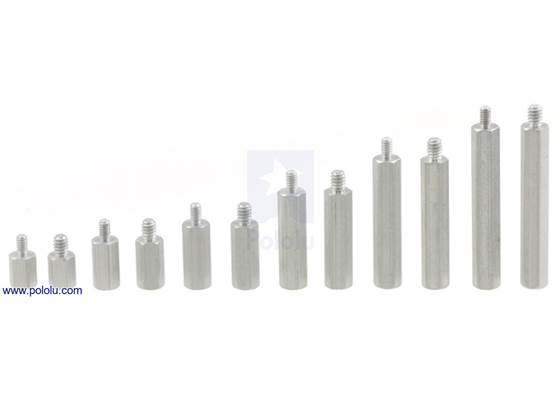

These M-F (male-female) aluminium standoffs are great for separating stacked components or chassis tiers. Each hexagonal standoff is 3/16″ wide with male threading extending 3/16″ to 1/4″ from one end (dimension M on the mechanical drawing to the right) and female threading to a depth of 3/16″ to 1/4″ in the other end (dimension F). A variety of lengths are available with either 2-56 or 4-40 threading:
Select options:The standoffs can be screwed together to make longer standoffs.
F-F (female-female) standoffs with threading running through the entire length of the body are also available:
Select options:We carry a variety of 2-56 and 4-40 screws and hex nuts that can be used with these standoffs.
| Length: | 0.75 in |
|---|
| Gender: | Male-Female |
|---|---|
| Thread type: | 2-56 |
