Invenscience i00800 Torxis Servo 800 oz.in. 0.75 sec/90 deg

The i00800 Torxis is an ultra-high-torque servo that can deliver a continuous duty torque of up to 800 oz-in (57 kg-cm) at 12 V. This monster servo is controlled via the standard radio-controlled hobby servo interface and can travel 90 degrees in 0.75 seconds.

AUD$ 664.95

Special Order

Shipping from $21.20

+1 more from our supplier in 7-10 days

Our Code: SKU-002569

Supplier Link: [Pololu MPN:1391]


Description

Overview

The industrial-grade Torxis high-torque servos by Invenscience are available in two different gear ratios that let you select for higher power or higher speed:

  • The i00600 Torxis can rotate 90° in 1.5 seconds while providing 100 lb-in (115 kg-cm) of continuous duty torque (200 lb-in peak torque).
  • The i00800 Torxis can rotate 90° in 0.75 seconds while providing 50 lb-in (57 kg-cm) of continuous torque (100 lb-in peak torque).

The servo is powered by 12 volts DC and draws approximately 3 A at full load. All of its gears are metal for increased durability, and the 3/8" hardened output shaft is supported by two ball bearings. It is pre-configured for a 90 degree range of motion, but this can be increased by reconfiguring the embedded controller (see the Bonus Feature section below for more information). The Torxis is controlled by the standard radio-controlled (RC) hobby servo signal used by most RC receivers and servo controllers.

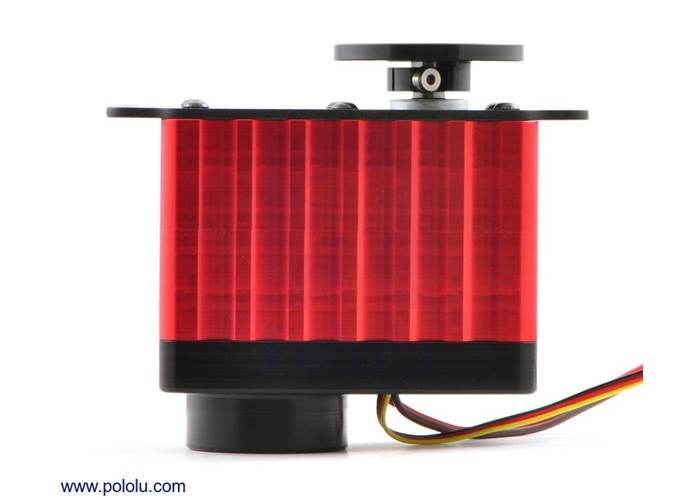

Side of Torxis servo

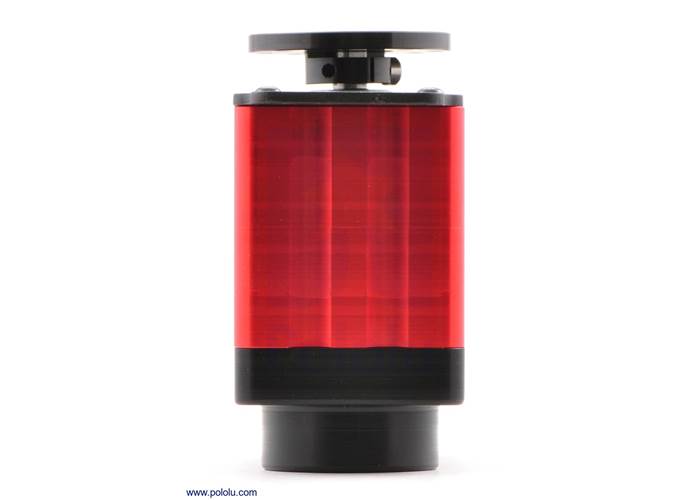

Short side of Torxis servo

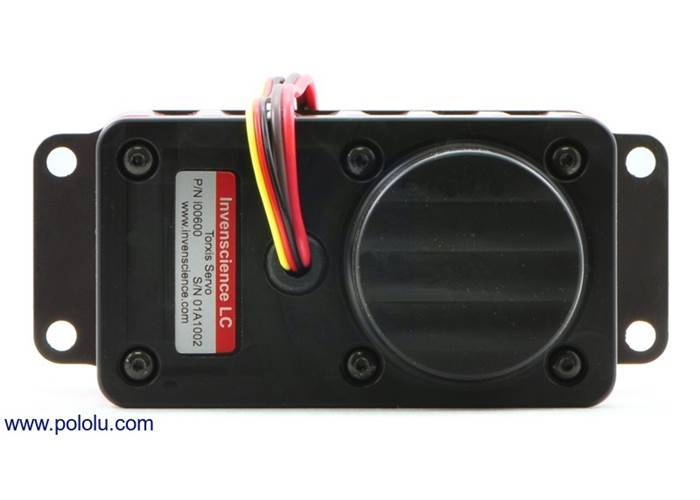

Bottom of Torxis servo

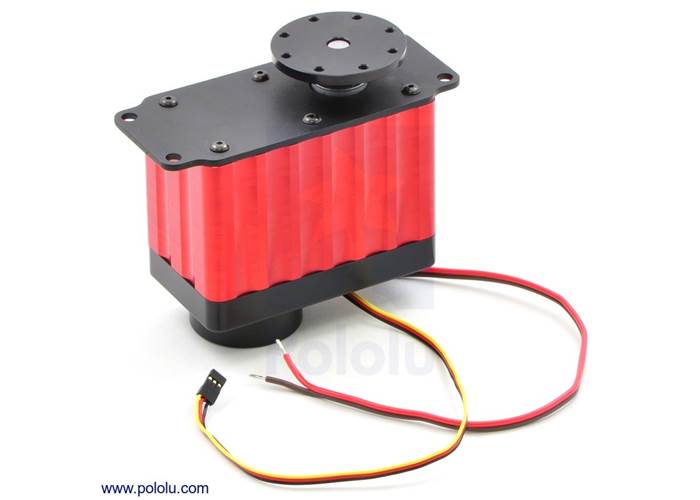

Torxis servo with quarter for size reference

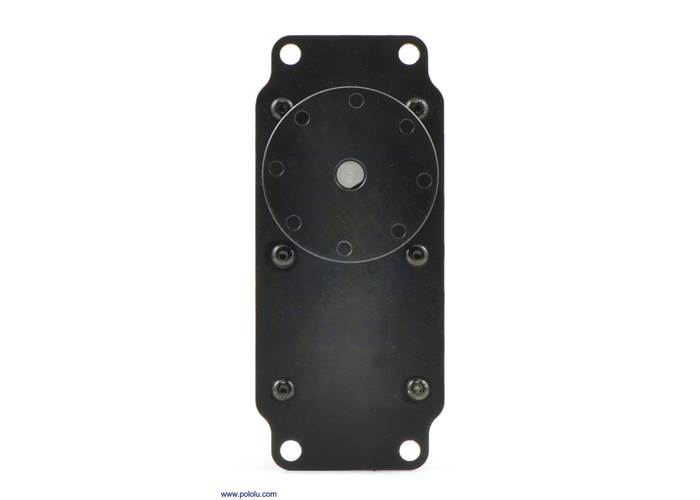

The servo includes a pre-mounted metal horn as shown in the pictures; the horn has eight 10-32 threaded mounting holes. (No mounting hardware is included.)

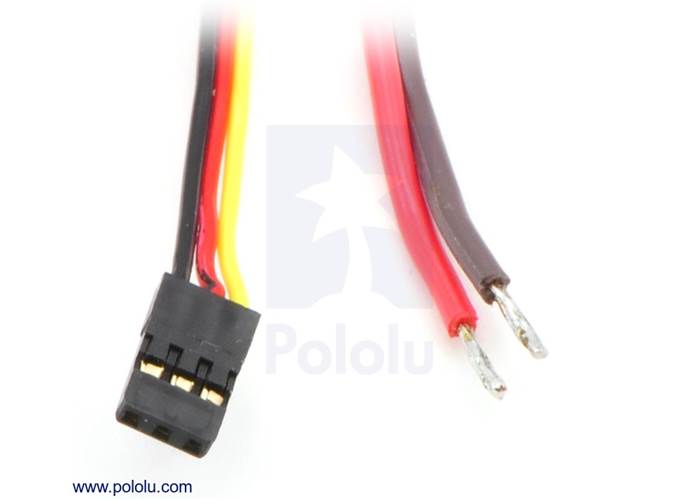

Torxis servo signal and power connections

The Torxis control signal lead is terminated with a standard “JR”-style connector. Of the three wires connected to the “JR” connector, only two are connected: ground (black) and RC PWM signal (yellow). Power is connected via the Torxis’ two separate, heavier-gauge wires.

The following video shows the i0060 Torxis servo lifting a 100 lb load as part of Invenscience’s servo cycle testing:

Applications

The Torxis servo’s power makes it suitable for ultra-high-torque applications that previously required custom feedback control systems including:

  • Unmanned ground vehicle controls
  • Factory automation and valve actuation
  • Heating ventilation and air conditioning airflow controllers
  • Solar panel sun tracking
  • Opening and closing gates and windows

Removing the end cap of the Torxis servo reveals a Pololu Jrk 21v3 (1)

Bonus feature: there’s a jrk inside!

The Torxis servo is controlled by an embedded jrk 21v3, a highly-customisable USB motor controller that also offers serial, analogue, and USB interfaces. Using the free jrk configuration utility, parameters including range, response curves, speed or current limits, and much more can be customised for your application. The jrk enables the Torxis servo to function as a USB-controlled servo while allowing the host computer to monitor and graph position, current, and other parameters in real time. For more information about these features, please see the jrk 21v3 user’s guide.

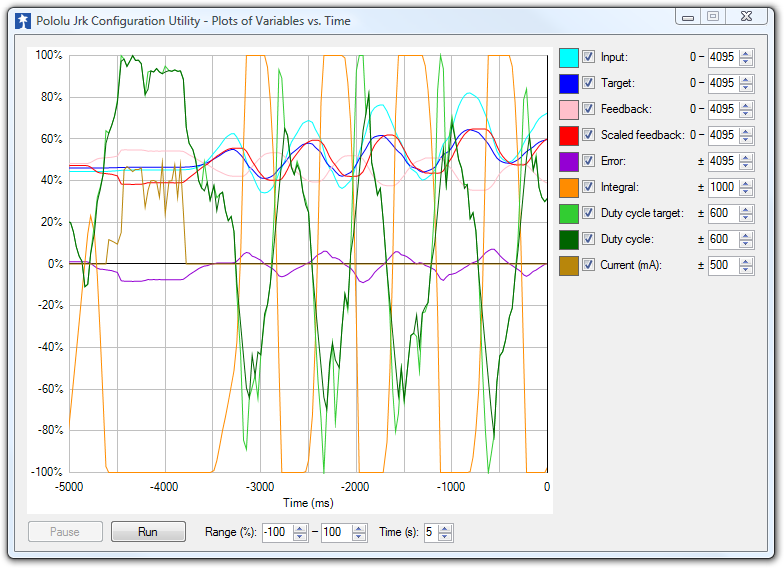

Pololu - The jrk plot window, showing all variables simultaneously


Specifications

Dimensions

Size: 5.50" x 2.40" x 4.66"
Weight: 37.8 oz

General specifications

Digital?: Y1
Stall torque @ 6V: 800 oz·in2
Speed @ 12V: 0.5 sec/60°
Stall torque @ 12V: 1600 oz·in3
Reverse voltage protection?: Y
Lead length: 12 in
Hardware included?: N4

Notes:

1
Serial and USB interfaces also available.
2
This product is intended for 12V operation.
3
The continuous duty torque rating for this product is 800 oz-in. Exceeding this rated torque for a prolonged period of time or attempting to stall this servo can damage it.
4
The only included hardware is the circular horn shown in the product picture.

Resources

Documentation and other information

Pololu Jrk USB Motor Controller User’s Guide (Printable PDF)

The user’s guide for the Jrk 21v3 USB Motor Controller and the Jrk 12v12 USB Motor Controller.


File downloads

Torxis datasheet (488k pdf)
Torxis Servo Instructions and Cautions (55k pdf)
The instructions and warnings included with a Torxis servo.

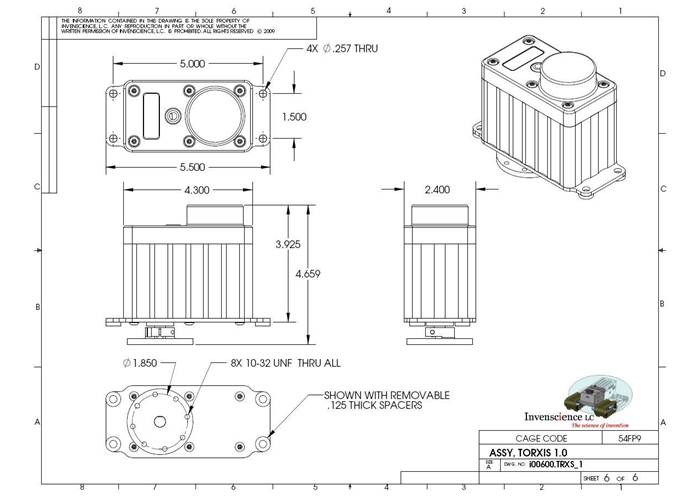

Torxis servo mechanical drawing (117k pdf)
A mechanical drawing of the Torxis servo with horn attached.
Torxis servo e-drawing (1MB EPRT)
An e-drawing for the Torxis servo.
Torxis servo Solidworks file (2MB SLDPRT)
Jrk Motor Controller Windows Drivers and Software (release 121204) (5MB zip)
This ZIP archive contains the installation files for the Jrk Configuration Utility, the jrk command-line utility (JrkCmd), and the jrk drivers for Microsoft Windows.
