10 Segment LED Bar Graph - Green

AUD $3.90

Order As Required

Back orders: Ship 18 units in 7 days

Our Code: SKU-000531

Supplier: [SparkFun MPN:9938]

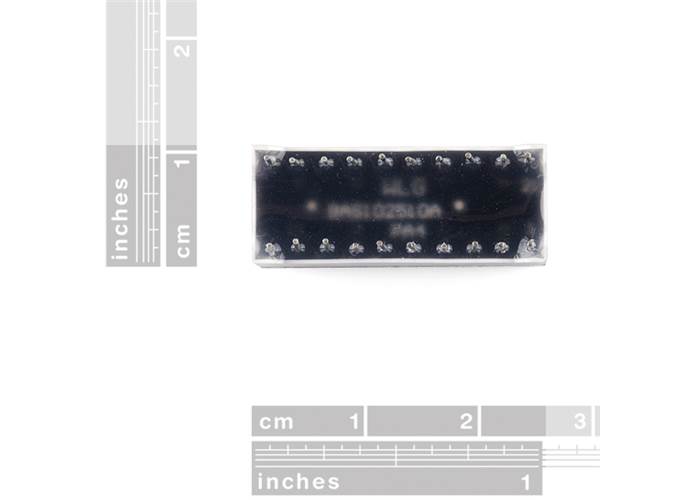

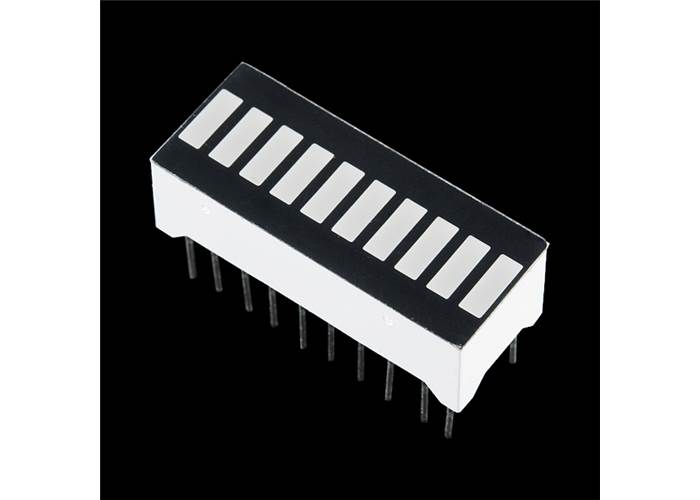

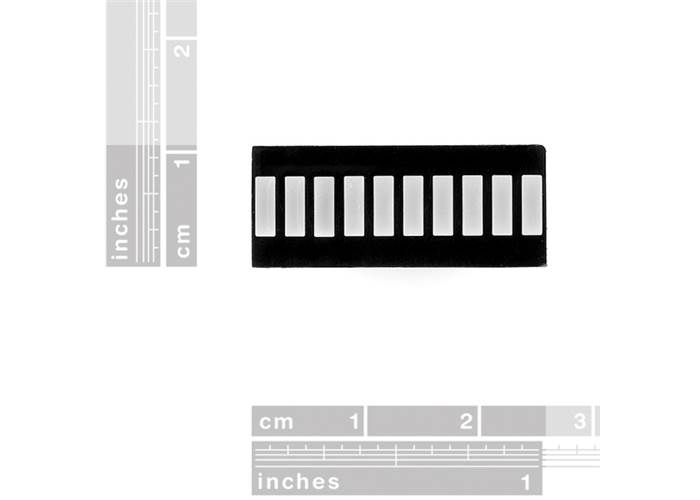

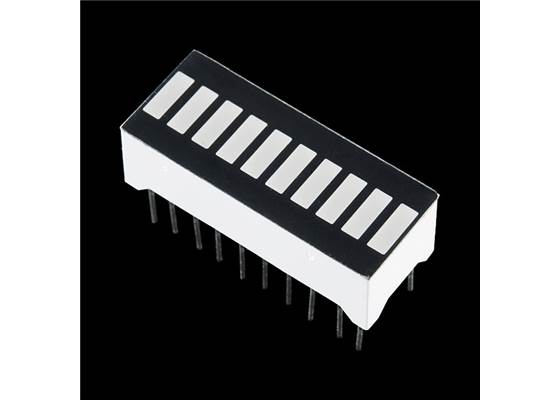

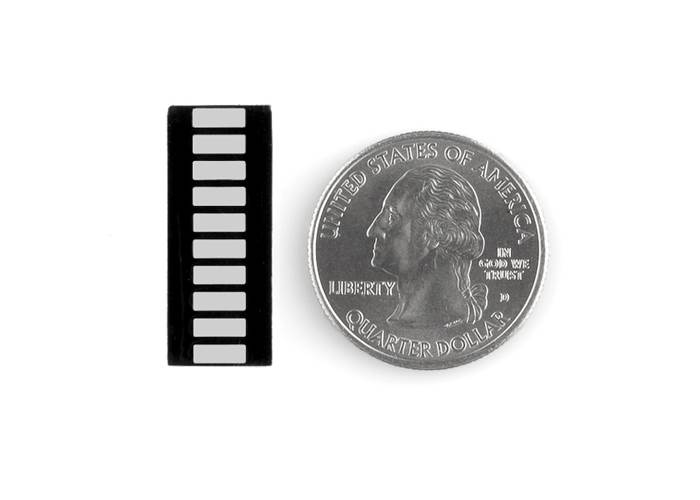

These 10 segment bar graph LEDs have many uses. With a compact footprint, simple hookup, they are easy for prototyping or finished products. Essentially, they are 10 individual green LEDs housed together, each with an individual anode and cathode connection.


Description

These 10 segment bar graph LEDs have many uses. With a compact footprint, simple hookup, they are easy for prototyping or finished products. Essentially, they are 10 individual green LEDs housed together, each with an individual anode and cathode connection.

We also carry these in yellow, blue, and red.

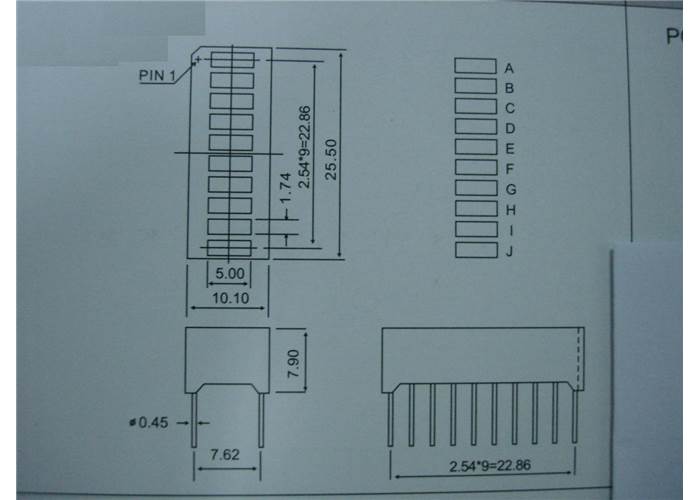

Note: The pinout on these bar graphs may vary from what is listed on the datasheet. Rotating the device 180 degrees will correct the change making pin 11 the first pin in line. We have contacted our supplier to correct this mistake in the future.
