SparkFun Joystick Shield Kit

AUD $24.95

In Stock: Ships Today

Back orders: 0 Available

Our Code: SKU-000498

Supplier: [SparkFun MPN:9760]

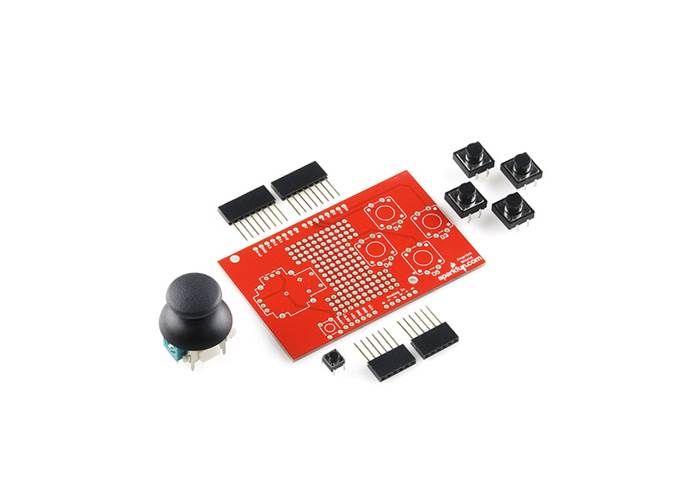

The SparkFun Joystick Shield Kit contains all the parts you need to enable your Arduino with a joystick! The shield sits on top of your Arduino and turns it into a simple controller.


Description

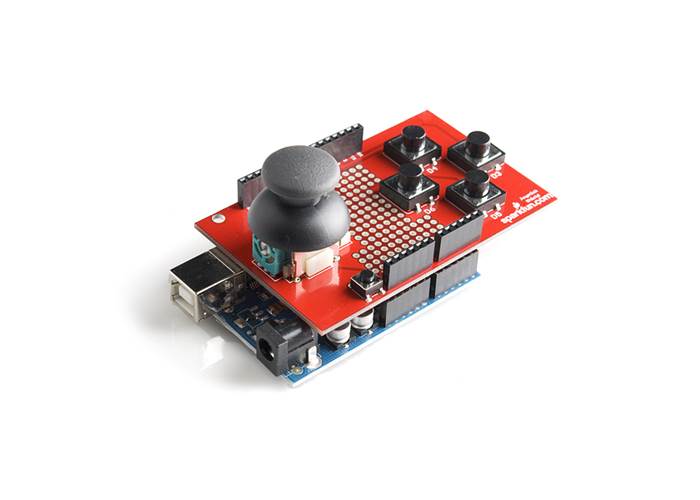

The SparkFun Joystick Shield Kit contains all the parts you need to enable your Arduino with a joystick! The shield sits on top of your Arduino and turns it into a simple controller. Five momentary push buttons (4+ joystick select button) and a two-axis thumb joystick gives your Arduino functionality on the level of old Nintendo controllers. Soldering is required, but it’s relatively easy and requires minimal tools. We even have a step by step guide!

The momentary push buttons are connected to Arduino digital pins 2-6; when pressed they will pull the pin low (utilising the internal pull-ups of the Arduino). Vertical movement of the joystick will produce a proportional analogue voltage on analogue pin 0, likewise, horizontal movement of the joystick can be tracked on analogue pin 1.

Kit Includes:
