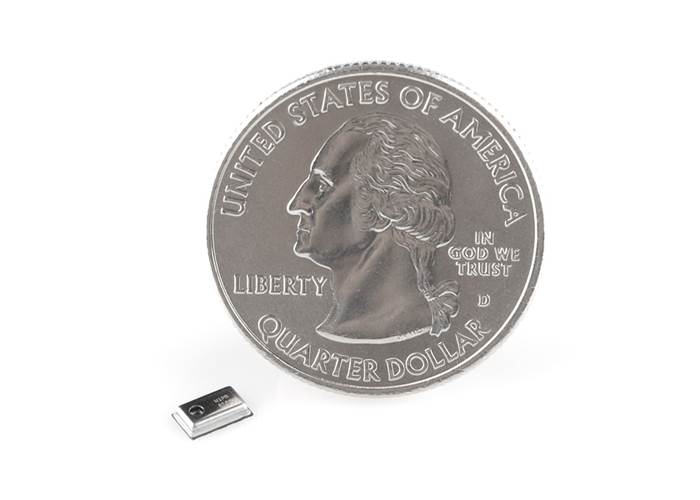

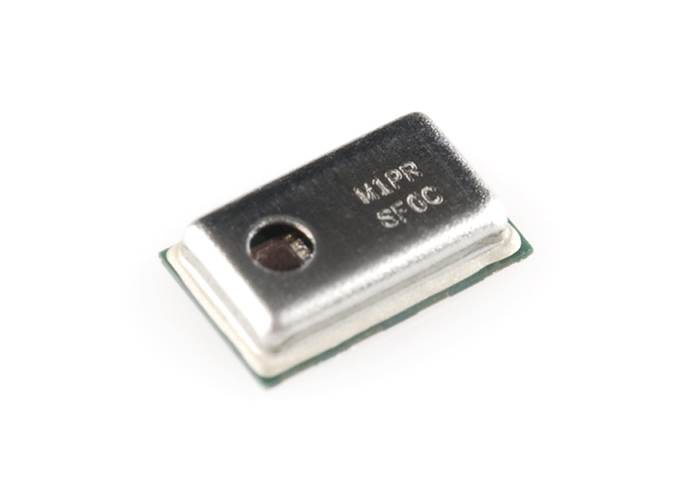

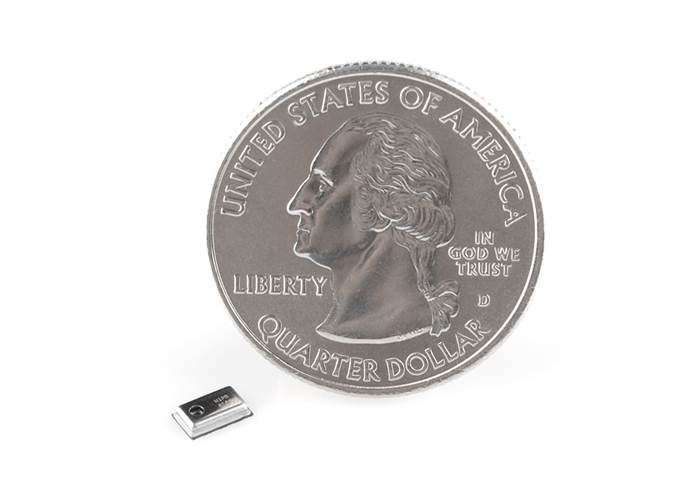

Barometric Pressure Sensor - MPL115A1

AUD $10.95

Order As Required

Back orders: Ship 5 units in 7 days

Our Code: SKU-000468

Supplier: [SparkFun MPN:9602]

The MPL115A1 is a digital barometer that uses MEMs technology to give accurate pressure measurements between 50kPa and 115kPa. We stock the SPI interface version of the sensor. Average current consumption is 10µA at one measurement per second.


Description

The MPL115A1 is a digital barometer that uses MEMs technology to give accurate pressure measurements between 50kPa and 115kPa. We stock the SPI interface version of the sensor. Average current consumption is 10µA at one measurement per second.

The sensor outputs both temperature and pressure readings on the SPI bus. See page 3 of the datasheet for information on how to take readings from the pressure sensor.

Breakout board coming soon!


Specifications

  • Wide supply voltage range
  • -40°C to 105°C maximum temperature range
  • Low power consumption
  • Monotonic pressure and temperature data outputs
  • kPa accuracy

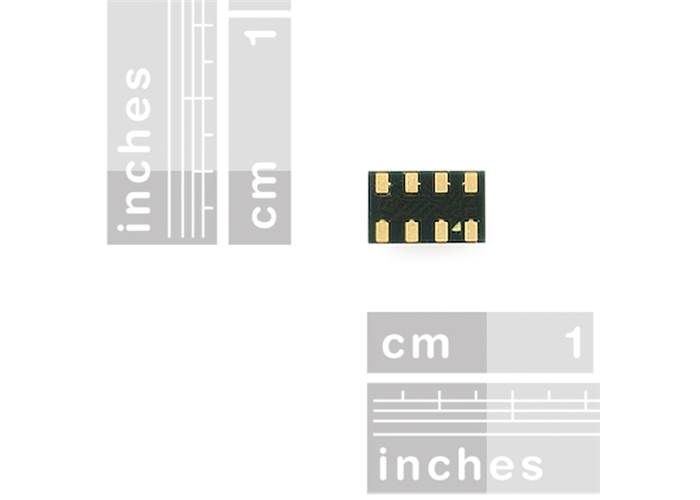

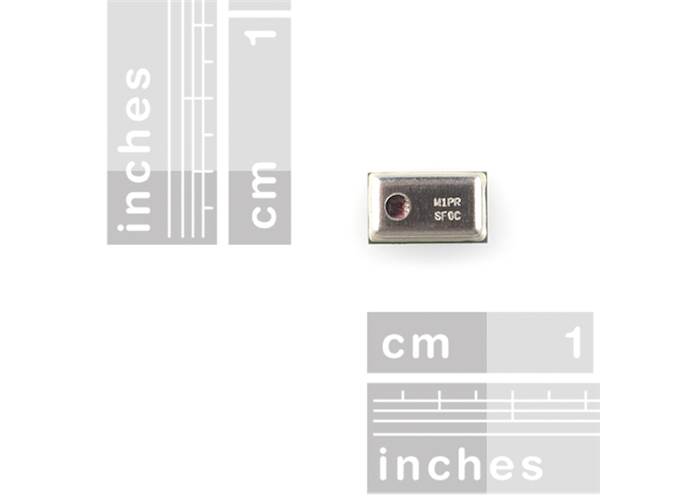

Dimensions

  • 5 x 3 mm (1.2mm height)
