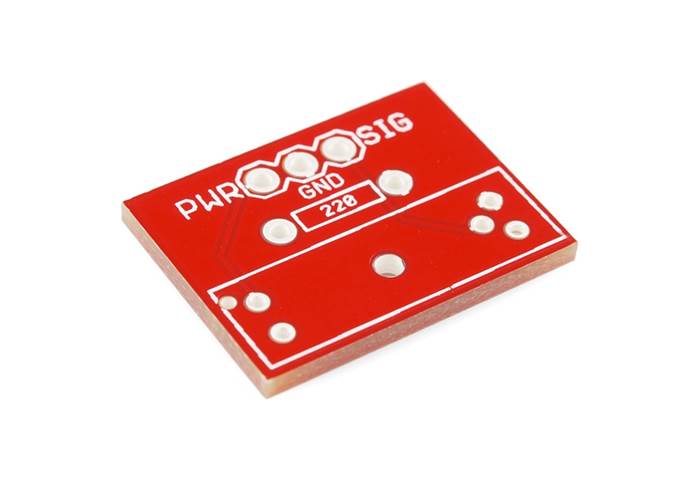

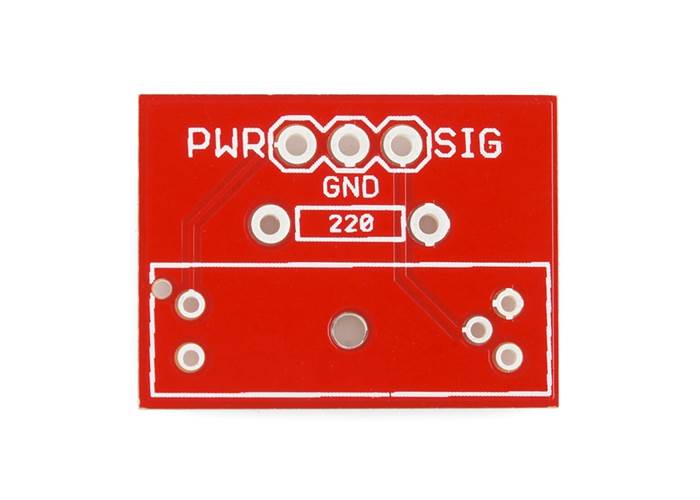

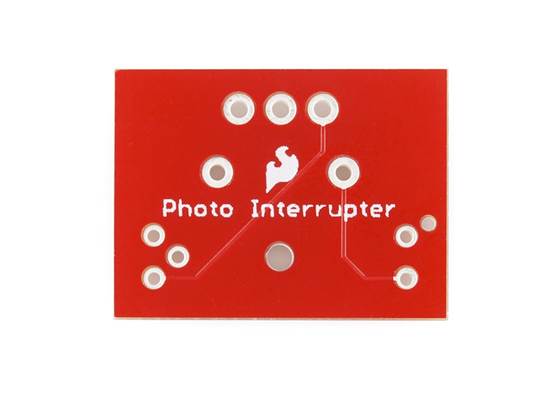

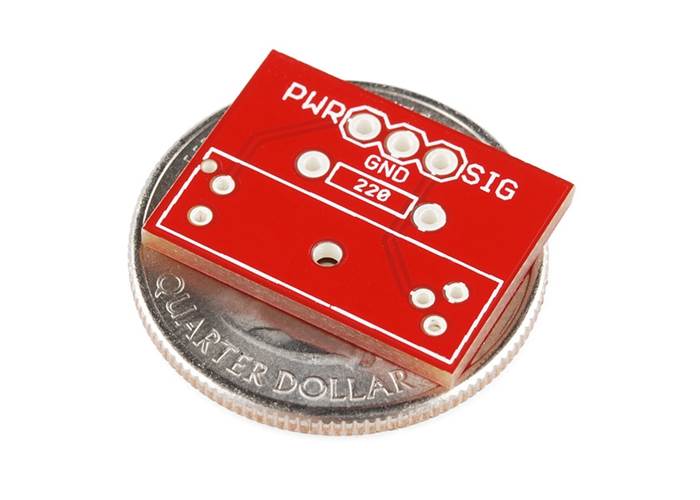

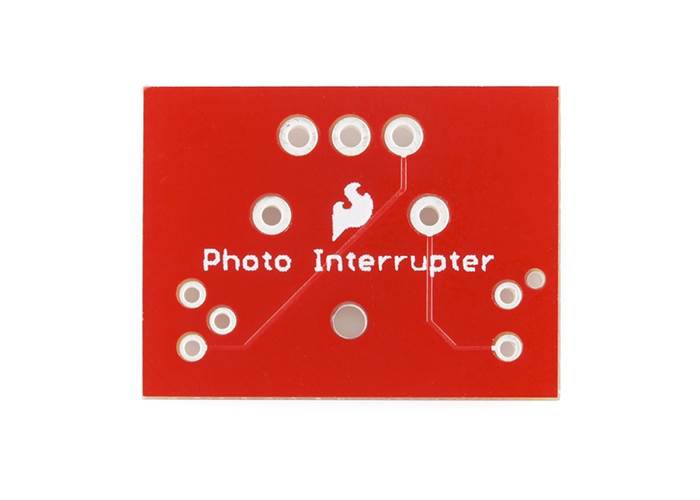

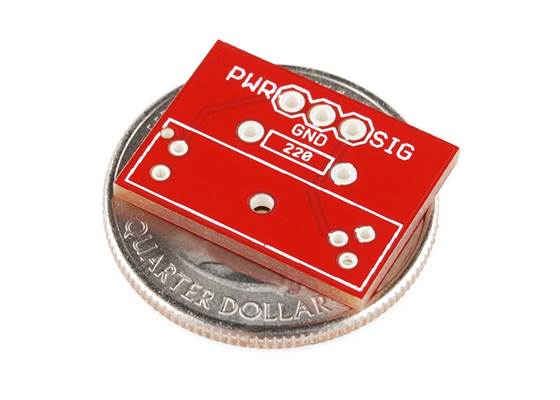

A simple breakout PCB for the GP1A57HR photo interrupter (also known as a photogate photodiode or phototransistor). This PCB has three connections for PWR GND and Signal.When the gate is clear SIG will be high (>4.9V).
In stock in Australia
Shipping from $2.90
+458 more from our supplier in 7-10 days
Our Code: SKU-000381
Supplier Link: [SparkFun MPN:9322]
A simple breakout PCB for the GP1A57HR photo interrupter (also known as a photogate, photodiode, or phototransistor). This PCB has three connections for PWR, GND, and Signal.
When the gate is clear, SIG will be high (>4.9V). When the gate is blocked by a finger, writing utensil, food pellet, or anything else - SIG will go low (<0.4V).

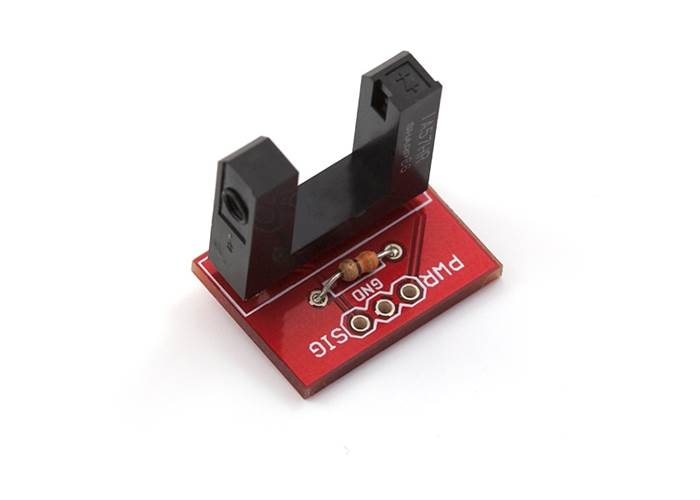

Assembled picture is for reference only, board comes bare; photo interrupter and the 220Ω (330Ω, works as well) current limiting resistor are listed below.
