Buzzer Audio Magnetic

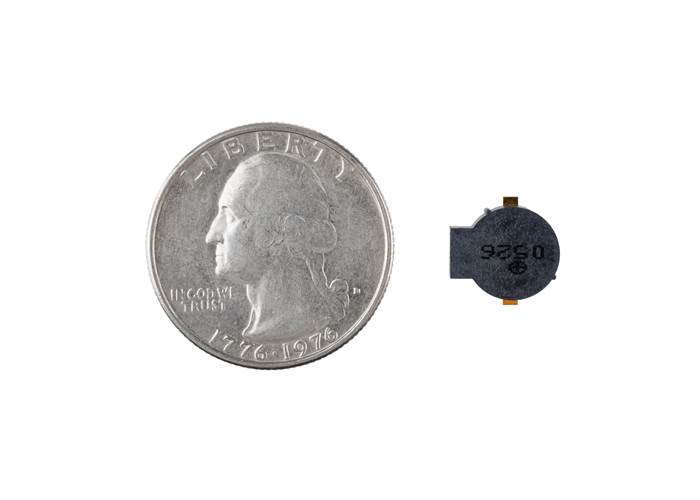

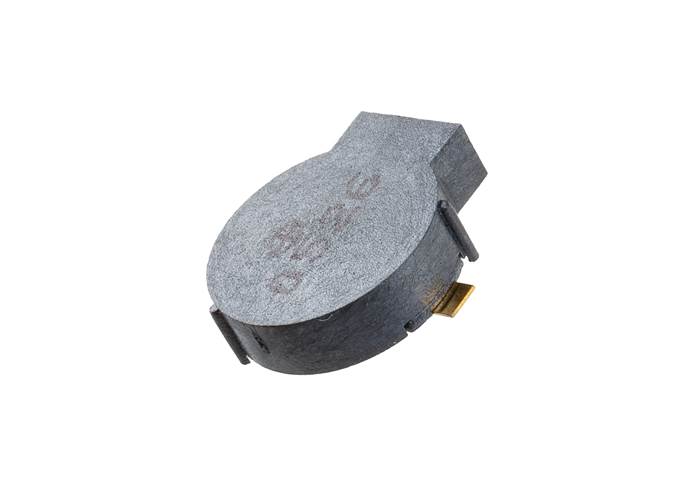

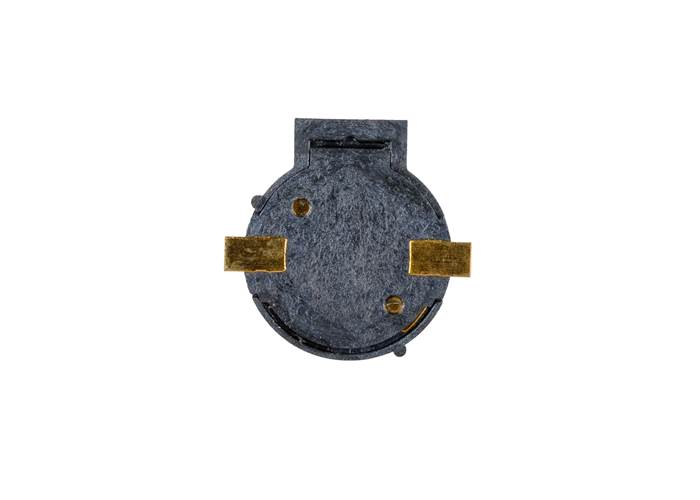

This is an externally driven surface mount magnetic buzzer transducer.

AUD$ 5.95

Special Order

Shipping from $4.90

+1000 more from our supplier in 7-10 days

Our Code: SKU-011451

Supplier Link: [SparkFun MPN:31569]

Description

This is an externally driven surface mount magnetic buzzer transducer.

Specifications

Driver Circuitry: Transducer, Externally Driven
Input Type: Zero-Peak Signal
Voltage - Rated: 3.6V
Voltage - Range: 2.5 ~ 4.5V
Frequency: 2.73kHz
Technology: Magnetic
Operating Mode: Single Tone
Sound Pressure Level (SPL): 83dB @ 3.6V, 10cm
Current - Supply: 110mA
Port Location: Side
Operating Temperature: -40°C ~ 85°C
Mounting Type: Surface Mount
Termination: Solder Pads
Size / Dimension: 0.354" Diameter (9.00mm)
Height - Seated (Max): 0.106" (2.70mm)

Resources

Datasheet
