REV Robotics SRS Programmer

Unlock advanced modes on your Smart Robot Servos and test any standard RC servo on-the-fly with this essential handheld programmer and tester.

AUD$ 57.95

Special Order

Shipping from $9.90

+18 more from our supplier in 7-10 days

Our Code: SKU-011235

Supplier Link: [SparkFun MPN:30117]

Description

The REV Robotics SRS Programmer is a key handheld tool for configuring Smart Robot Servos (SRS) and testing standard RC servos on the fly, no separate controller needed. It gives you direct access to the advanced features of your SRS, allowing you to switch modes instantly:

Continuous Rotation: Convert your servo into a geared motor for driving wheels.
Custom Angular Limits: Define a specific range of motion for precise, repeatable movements.
Factory Reset: Quickly revert a servo to its original settings.

As a standalone tester, you can use the integrated knob to sweep any standard RC servo through its full pulse range (550 µs to 2450 µs) to validate its function or find its limits. Powered by four AA batteries and designed for portability, the SRS Programmer's clear LED feedback and compact size make it an essential addition to any workshop or competition toolkit.

Specifications

Supports three programming modes: continuous rotation, angular limits, and reset to factory defaults
Test modes include automatic sweep and manual position/direction control
LED indicators provide feedback during programming
Pulse output range: 550 µs to 2450 µs, with 1500 µs as centre
Output logic level: 3.3 V; drive voltage for servo output: 6 V nominal
Dimensions: 70.5 mm × 64.5 mm × 35.5 mm

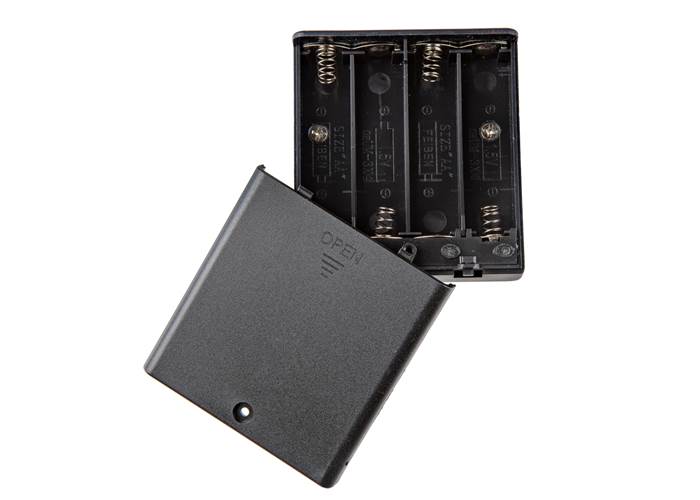

Power source: 4 × AA batteries (not included)
Acts as a servo tester for any standard RC servo in addition to programming SRS units
