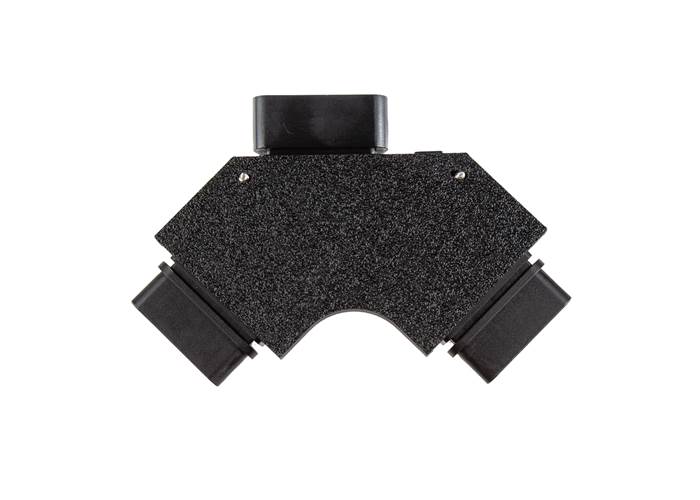

Macchina OBD-II 3-Way Breakout

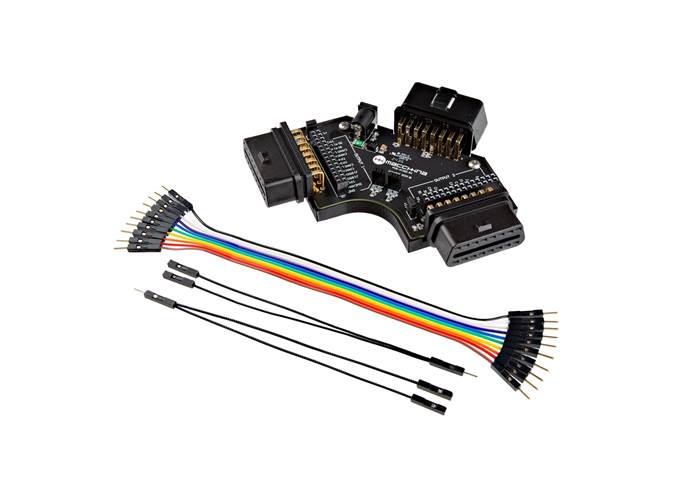

This OBD2 Breakout board is designed to simplify OBD2 device development.

AUD$ 102.95

Special Order

Shipping from $9.90

+16 more from our supplier in 7-10 days

Our Code: SKU-011049

Supplier Link: [SparkFun MPN:25069]

Description

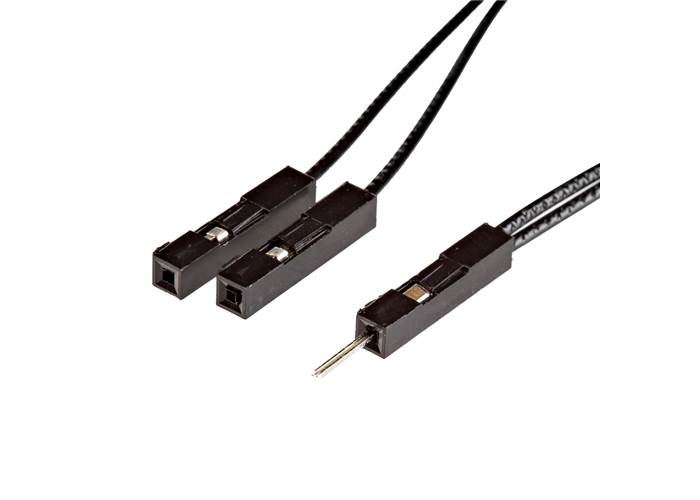

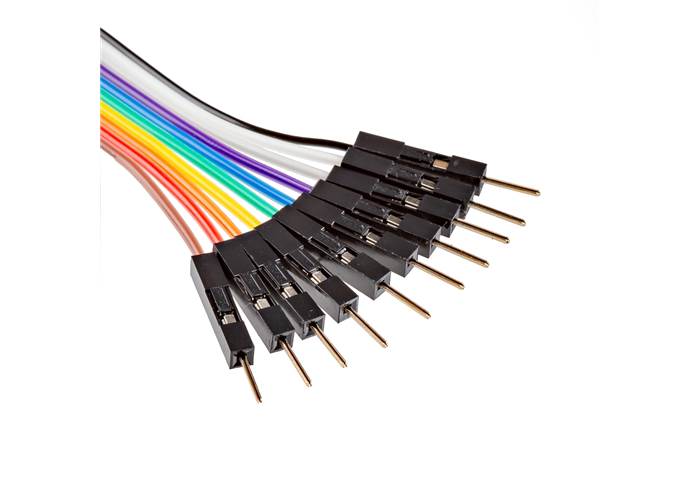

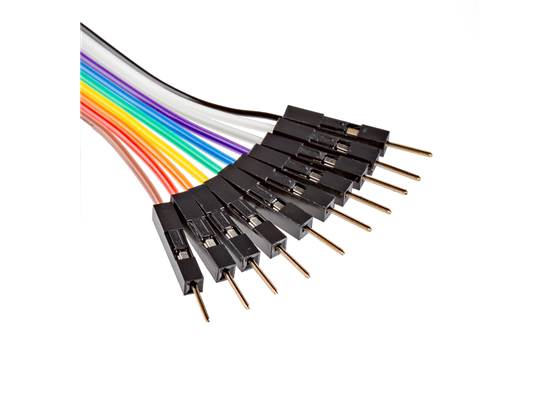

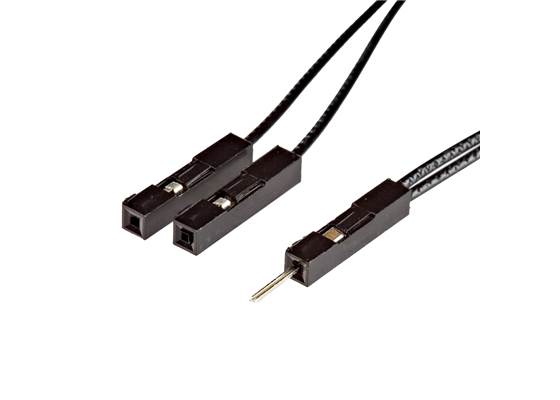

This OBD2 Breakout board is designed to simplify OBD2 device development. The junction blocks allow you to change how signals move between connectors. Install a jumper wire between rows to make "through" connections or jump over to other pins to rearrange signals. The board can function in several "modes" by altering how the signals route through the system.

Specifications

1 input OBD2 connector (MALE pins)
2 output connectors (FEMALE pins)
12V input power source: Use an external 12V power adaptor when doing desktop OBD2 development. If an OBD2 extension cable is used, you'll get power from the car
Power jumpers: Control power to each output by installing jumpers
Junction blocks: Route OBD2 signals to the connectors as needed. All signals are broken out and available
CAN termination resistors: 2 sets available
Green LED confirms power is ON
