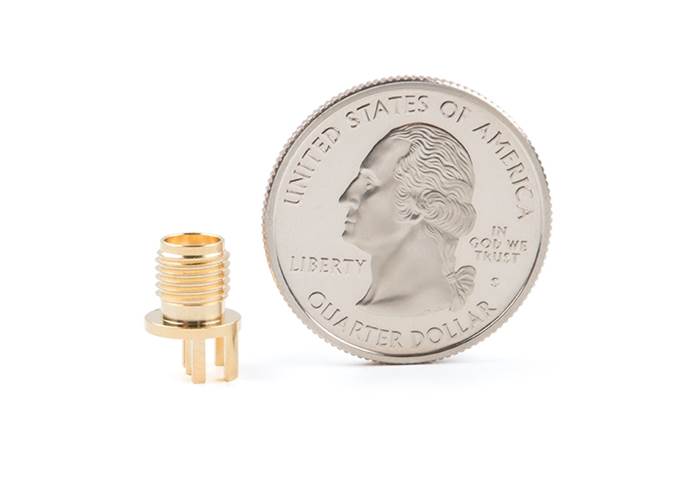

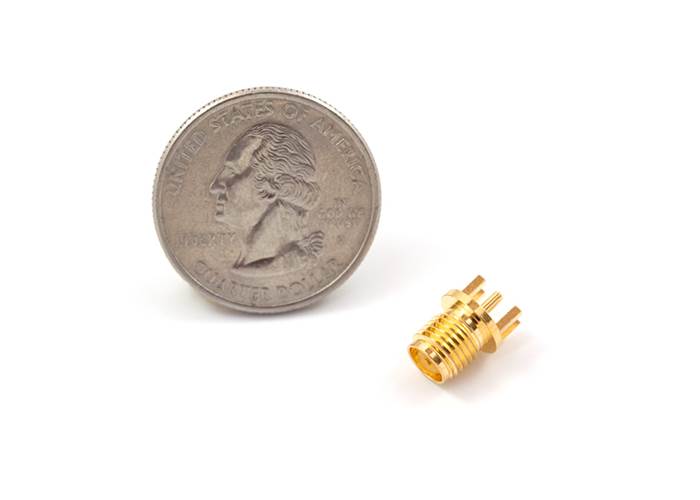

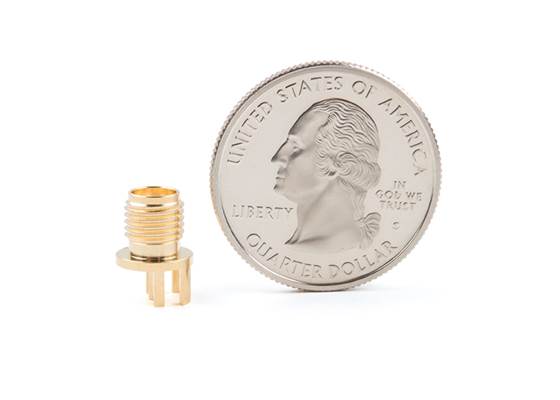

SMA Connector

Add a secure antenna connection to your custom circuit boards with this PCB edge-mount SMA connector. Whether you are building a custom communication module or testing an early-stage hardware design, this connector provides a solid, straightforward link between your board and an external antenna.

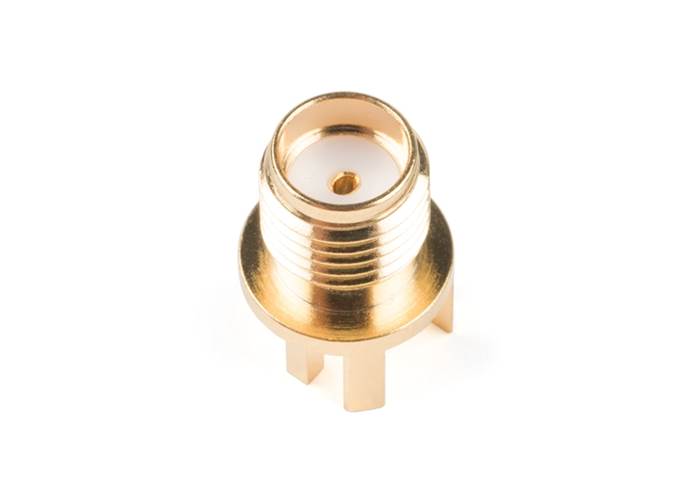

• Standard Compatibility: Features a standard female signal pin to mate cleanly and correctly with original SMA-type antennae.

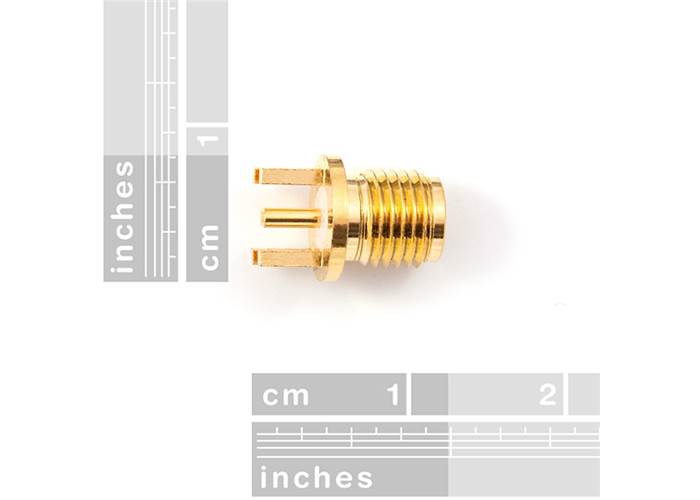

• PCB Edge Mount: Designed to slide directly onto the edge of your printed circuit board for a clean, low-profile solder connection.

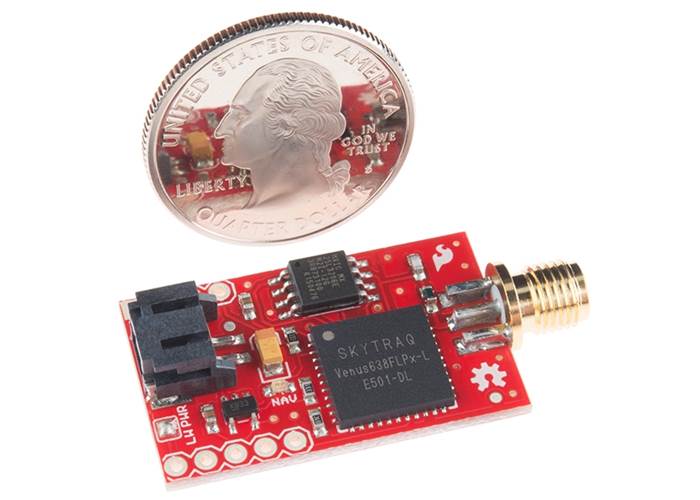

This small component is effective for adding antenna capabilities to GPS receivers, cellular modems, and standard radio modules.
