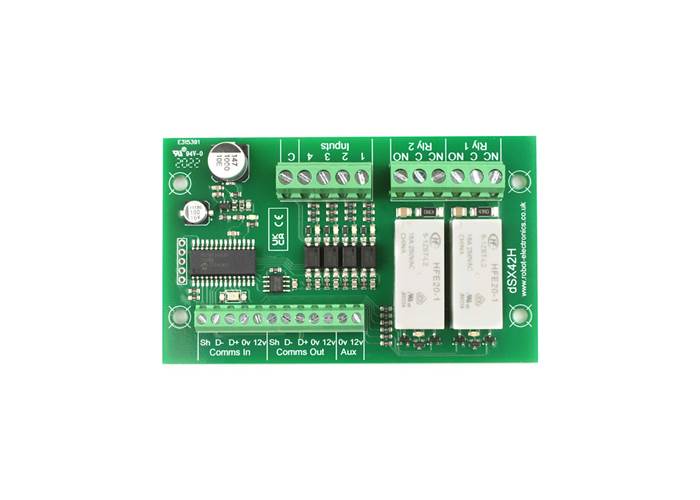

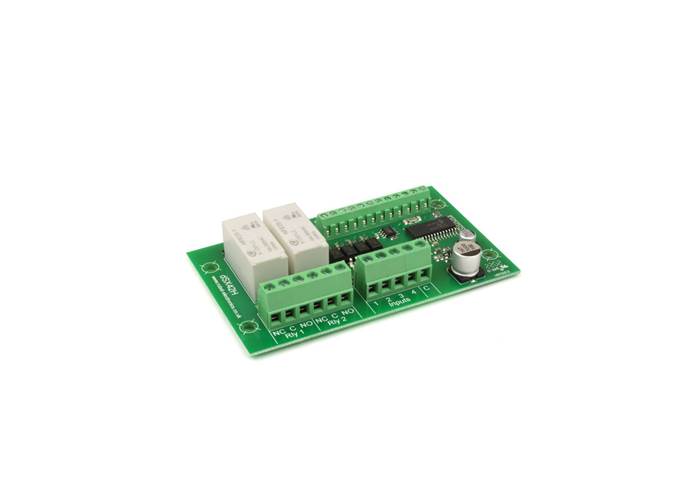

Expansion board for the dScript modules providing low voltage DC inputs (analogue or digital) and two extra relays, powered and controlled through the dS modules RS485 port.
In stock in Australia
Shipping from $7.90
+lots more from our supplier in 7 days
Our Code: MCU-060261
Expansion board for the dScript modules providing low voltage DC inputs (analogue or digital) and two extra relays, powered and controlled through the dS modules RS485 port.
Hardware
Serial ports - 1 x RS485 port.
Relays - 2 with up to 16Amp @24vdc or 250vac, screw Terminals for N/O N/C and Common contacts
Inputs - 4 which may be digital or analogue 0-5v 10-bit.
Power - 12v from connected dScript module (requires twin pair cable) or directly on screw terminals if required.
Compatible dScript modules:
dS2242, dS378, dS3484, dS2824, dS2832, dS2408.
Cable length
up to 300 meters, depending on cable quality.
Configuration
Easy setup via dSx configuration page on the dScript module
After configuration Relays and Inputs operate as if they were local.
dScript editor requirements - Windows 10 or later, Linux or macOS.
