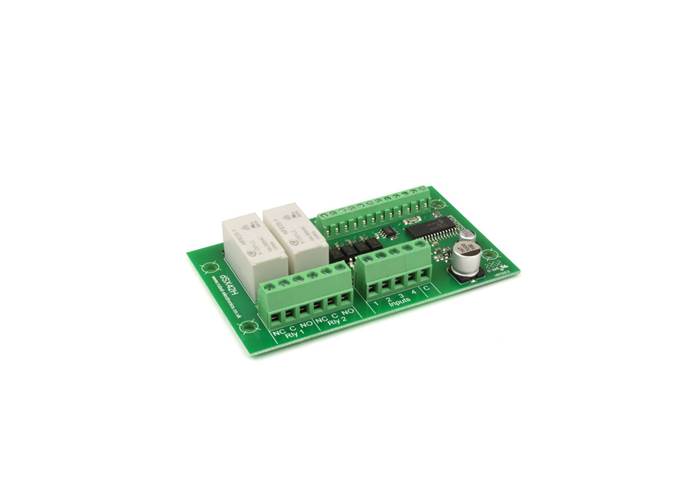

dSX42H - dScript expansion module

Expansion board providing 230VAC opto inputs and two extra relays for the dScript modules, powered and controlled through the dS modules RS485 port.

Hardware

Serial ports - 1 x RS485 port.
Relays - 2 with up to 16Amp @24vdc or 250vac, screw Terminals for N/O N/C and C contacts
Inputs - 4 optically isolated 230vAC inputs.
Power - 12v from connected dScript module (requires twin pair cable) or directly on screw terminals if required.

Compatible dScript modules:
dS2242, dS378, dS3484, dS2824, dS2832, dS2408.

Cable length
up to 300 meters, depending on cable quality.

Configuration
Easy setup via dSx configuration page on the dScript module
After configuration Relays and Inputs operate as if they were local.
