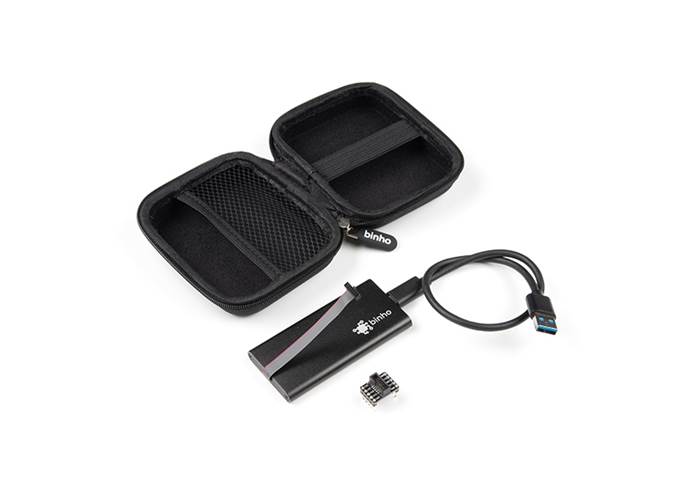

The Binho Nova Multi-Protocol USB Host Adaptor allows one to interface their computer directly to hardware circuits. This device is powered by the USB connection to the host PC and is also able to provide downstream power to test circuits.
Special Order
Shipping from $12.90
+5 more from our supplier in 7-10 days
Our Code: SKU-006352
Supplier Link: [SparkFun MPN:16382]
The Binho Nova Multi-Protocol USB Host Adaptor allows one to interface their computer directly to hardware circuits. This device is powered by the USB connection to the host PC and is also able to provide downstream power to test circuits.

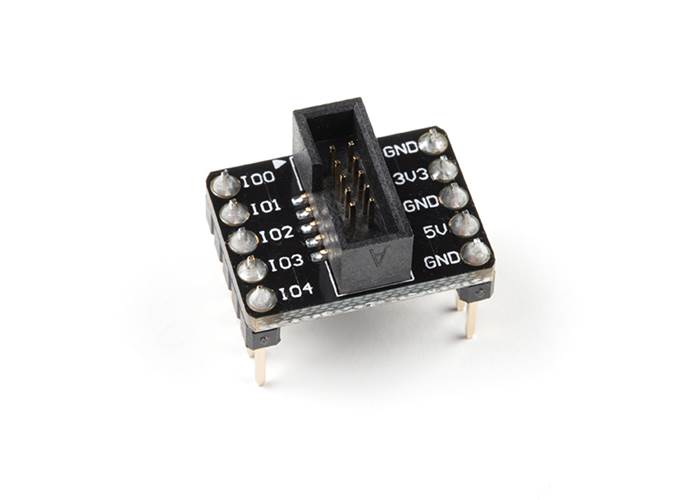

The Binho Nova Multi-Protocol USB Host Adaptor features 5 signal pins, one x 3v3 pin, one x VUSB pin, and three x GND pins on its 10pin wire harness. The wire harness terminates with a female 1.27mm 2x5 IDC connector. In IO Mode, the five signal pins can be used for varying functions such as Digital Input, Digital Output, PWM Output, Digital Interrupt (on rising edge, falling edge, or change), Analogue Input, or Analogue Output.
Additionally, the host adaptor is able to utilise these pins to communicate on several digital buses: I2C, SPI, UART, (Dallas) 1-Wire, and (Atmel) Single-Wire Interface. While in these modes of operation, remaining available pins can be assigned to other related or unrelated purposes such as gpio, interrupts, chip selects, PWM signals, or analogue input or outputs.
The Binho Nova Multi-Protocol USB Host Adaptor is ideal for manual testing during firmware development and debugging as well as a perfect way to automate hardware testing and validation. A common use-case of this product in production environments is for EEPROM/Flash Memory programming along with functional testing activities.
Includes:
