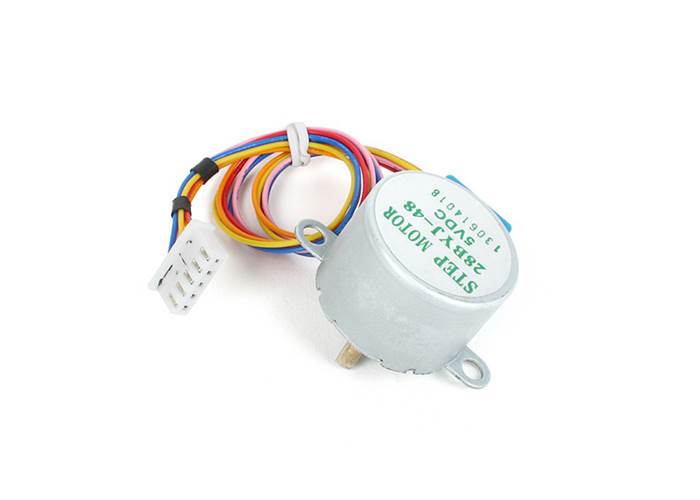

Step Motor 5V

The 28BYJ-48 is a small stepper motor suitable for a large range of applications. Features: Rated voltage: 5VDC Number of Phase 4 Speed Variation Ratio 1/64 Stride Angle 5.625° /64 Frequency 100Hz DC resistance 50Ω±7%(25℃) Idle In-traction Frequency > 600Hz Idle Out-traction Frequency > 1000Hz In...

Not currently available

Our Code: SKU-008633

Supplier Link: [SparkFun MPN:19515]

Description

The 28BYJ-48 is a small stepper motor suitable for a large range of applications.

Specifications

Rated voltage: 5VDC
Number of Phase 4
Speed Variation Ratio 1/64
Stride Angle 5.625° /64
Frequency 100Hz
DC resistance 50Ω±7%(25℃)
Idle In-traction Frequency > 600Hz
Idle Out-traction Frequency > 1000Hz
In-traction Torque >34.3mN.m(120Hz)
Self-positioning Torque >34.3mN.m
Friction torque 600-1200 gf.cm
Pull in torque 300 gf.cm
Insulation grade A

Resources

Datasheet
