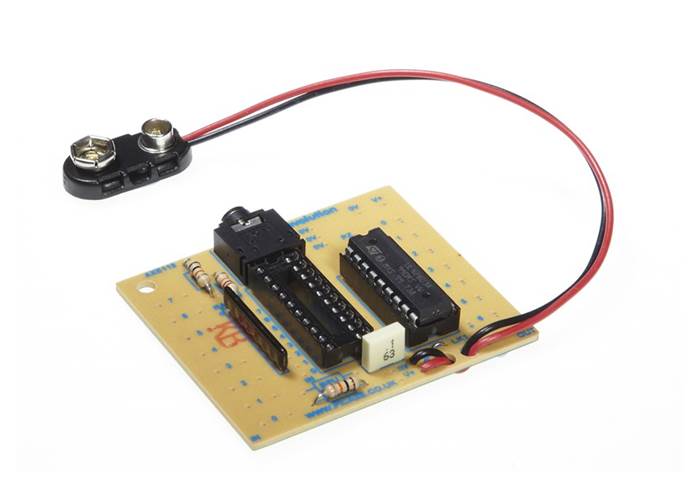

PICAXE-20 Project Board (AXE118)

PICAXE 20 Project Board is supplied with all essential PCB components including IC and download sockets plus a ULN2803A Darlington driver buffer chip that enables you to connect higher power output devices (such as motors, solenoids, relays) directly to the board (current up to 500mA). Purchase PICAXE-20M2 or PICAXE-20X2 microcontrollers separately.

Not currently available

Our Code: KIT-70043

Overview

A self assembly board to allow rapid prototyping of PICAXE-20M2 and PICAXE-20X2 circuits.

The board is supplied with all essential PCB components including IC and download sockets plus a ULN2803A Darlington driver buffer chip that enables you to connect higher power output devices (such as motors, solenoids, relays) directly to the board (current up to 500mA). Purchase PICAXE-20M2 or PICAXE-20X2 microcontrollers separately.

The PICAXE-20 Project Board can be used with any software application that supports the PICAXE hardware, including the free PICAXE Programming Editor and/or Logicator for PIC Micros software.

Specifications

Pack size 160x100x10mm
Pack weight 22g

Resources

PICAXE-20 Project Board Datasheet PDF Datasheet
PICAXE-20M2 Microcontroller Datasheet PDF Datasheet
PICAXE USB Download Cable Datasheet PDF Datasheet
