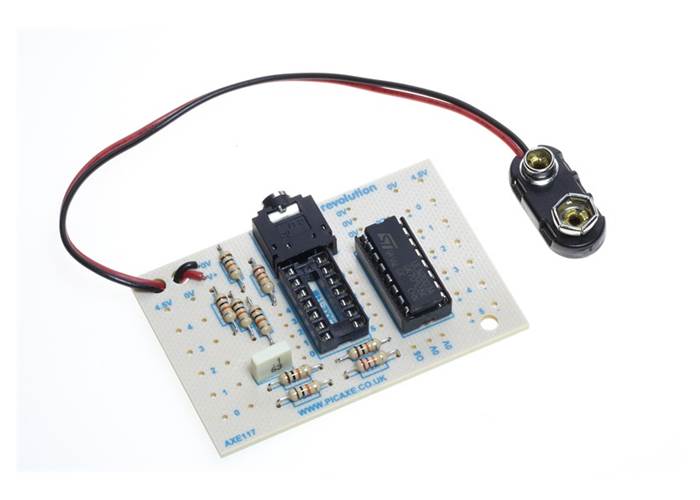

PICAXE-14 Project Board (AXE117)

PICAXE 14 Project Board is supplied with all essential PCB components including IC and download sockets plus a ULN2803A Darlington driver buffer chip that enables you to connect higher power output devices (such as motors, solenoids, relays) directly to the board (current up to 500mA). Purchase PICAXE-14M2 microcontroller separately.

Discontinued

No Stock Available

Our Code: KIT-70042

Overview

A small self assembly board to allow rapid prototyping of PICAXE-14M2 circuits.

The board is supplied with all essential PCB components including IC and download sockets plus a ULN2803A Darlington driver buffer chip that enables you to connect higher power output devices (such as motors, solenoids, relays) directly to the board (current up to 500mA). Purchase PICAXE-14M2 microcontroller separately.

The PICAXE-14 Project Board can be used with any software application that supports the PICAXE hardware, including the free PICAXE Programming Editor and/or Logicator for PIC Micros software.

Specifications

Pack size 160x100x15mm
Pack weight 21g

Resources

PICAXE-14 Project Board Datasheet PDF Datasheet
PICAXE-14M2 Microcontroller Datasheet PDF Datasheet
PICAXE USB Download Cable Datasheet PDF Datasheet
