Pololu RC Switch with Medium Low-Side MOSFET

This compact board converts hobby radio control pulses to digital on/off signals for use in RC switch and simple RC adapter applications. An integrated medium, low-side MOSFET can be used to drive moderate loads (up to around 15 A), such as a relay, when the switch is on.

Not currently available

Our Code: MCU-60124

Supplier Link: [Pololu MPN:1211]

Overview

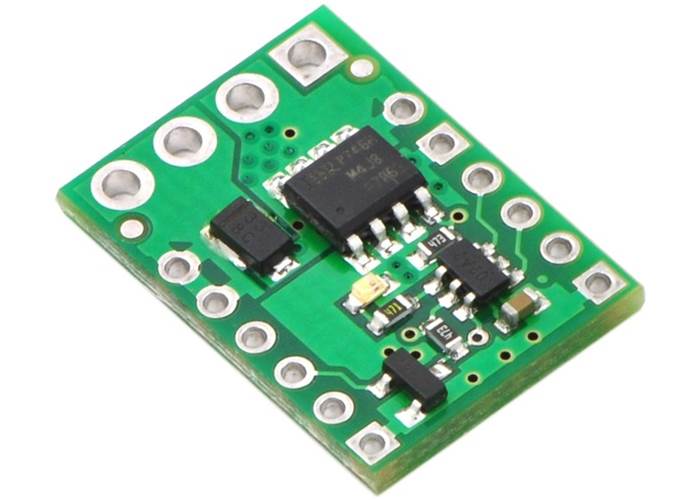

RC switch with medium low-side MOSFET

The Pololu RC switch with medium low-side MOSFET can be used with standard hobby radio control systems for radio control switch applications or simple interface applications. Example applications include converting extra RC receiver or servo controller outputs to simple high/low signals that can control LEDs or relays and connecting RC systems to microcontroller projects that do not have the necessary resources for decoding the RC interface. Two outputs indicate the presence of a valid signal and whether the switch is on or off, and an integrated low-side MOSFET turns on when the switch is on, allowing the board to drive moderate loads directly. The switch also features a flyback (or freewheeling) diode across the drive outputs so that you can connect a coil to them, such as a motor or relay, without any additional external components.

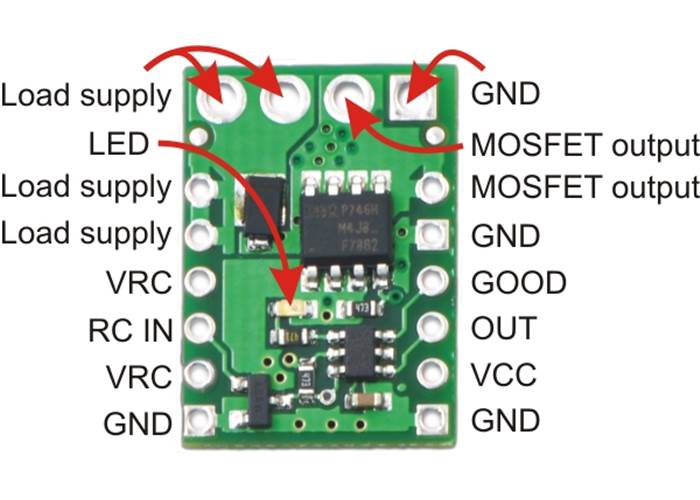

RC switch with medium low-side MOSFET - labelled

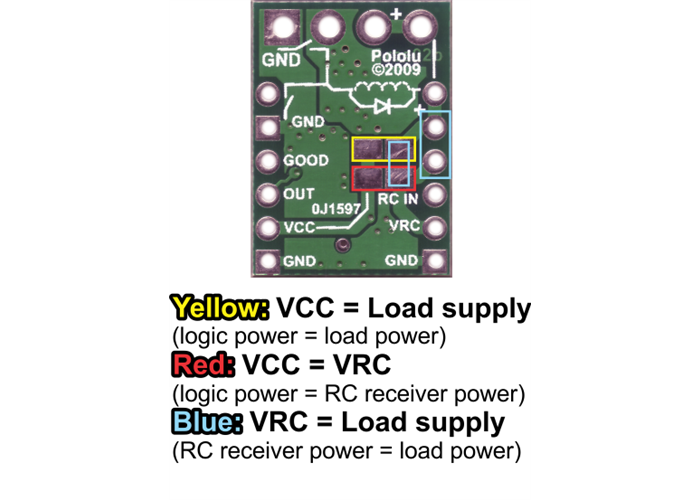

RC switch with medium low-side MOSFET - jumper connections

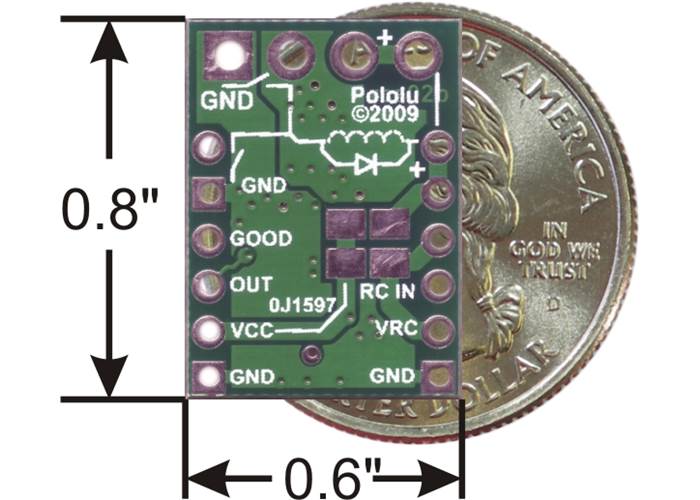

This compact unit measures a mere 0.6" x 0.8" and weighs just over a gram (0.04 oz) without the included header pins.

Using the RC Switch

Connections

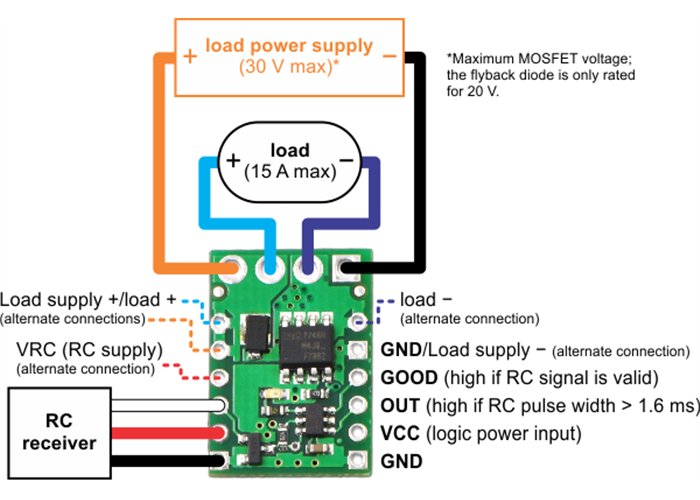

RC switch with medium low-side MOSFET - wiring diagram

The lower-left side of the PCB (as shown to the right) contains three pins that can connect directly to an RC receiver or servo controller, and the four pins on the lower right side of the PCB are the board’s power supply connections and digital outputs. These outputs will be at the same levels as the VCC power connection, which can range from 2.0 V to 5.5 V. VCC is also the gate voltage that is used to turn the MOSFET on, so it should be noted that lower VCC voltages will lead to higher MOSFET on resistances (which in turn limits the maximum current the device can switch). The RC signal input pin, RC IN, can handle voltages from 0 to 7 V, and the threshold for a logic high is approximately 1 V.

The load power supply and the load itself can be connected via the pins near the top of the board, with the positive side of the load on the left and the negative side of the load on the right. The negative load supply should connect to the ground pad on the top-right side of the board, and the negative side of the load itself should connect to the pin labeled “MOSFET output”. The two pins labeled “Load supply” are internally connected and intended to give you convenient connection points for both your load and your load power supply. There is a flyback (also known as a “freewheeling”) diode between the MOSFET output and load supply, which allows you to safely connect an inductive load such as a motor or relay. The MOSFET can deliver up to 15 A with VCC at 5 V; the performance will be worse if the input voltage is lower or if the MOSFET isn’t kept cool. The MOSFET can tolerate voltages as high as 30 V, but the flyback diode is only rated for 20 V, so an external diode should be used for load voltages that can exceed 20 V. If an external diode is used, the load supply pins should not be used; these connections should be made off of the board.

The VCC pin can be connected to the RC supply, VRC, by shorting across the pads on the back side of the PCB marked by the red box in the picture to the right, allowing either the RC receiver to power the digital device or allowing the digital system to power the RC receiver. If the connection between the two power pins is not made, VRC can be left disconnected since it is not used by the RC switch board.

The VCC pin can also be connected to the load supply by shorting across the pads on the back side of the PCB marked by the yellow box in the picture to the right, allowing either the load supply to power the digital device or allowing the digital system to power the load.

The blue rectangles show where shorts can be added to connect the load supply to the RC supply, VRC.

Outputs and Indicator LED

The board has two digital outputs, each of which is capable of sourcing or sinking 20 mA. The primary output, OUT, goes high (on) when a valid signal is detected and the pulse width is above the threshold of 1.6 ms. There is approximately ±0.1 ms of hysteresis on the threshold, meaning that the pulse width will have to get to approximately 1.7 ms before the output turns on, and once on, the signal will have to fall below 1.5 ms to turn off. A secondary digital output, GOOD, indicates the presence of a valid RC signal (10-100 Hz pulse rate, 0.5-2.5 ms pulse width).

An LED on the RC switch indicates the status of the RC signal (and outputs). When a valid RC signal is not detected (GOOD and OUT both low), the LED flashes with a duty cycle of approximately 50% (i.e. the LED is on for as long as it is off). When a valid signal is detected but the pulse width is below the threshold (GOOD high and OUT low), the LED flashes at a very low duty cycle (i.e. very short flashes). When a good signal is detected and the pulse width is above the threshold, both outputs are high, the LED turns on (no flashing), and the MOSFET is on.

Included Hardware

A 12-pin 0.1" straight breakaway male header and two 3.5mm 2-pin terminal blocks are included with the Pololu RC switch with medium low-side MOSFET. The header pins can be used to connect the RC switch to perfboards or breadboards.

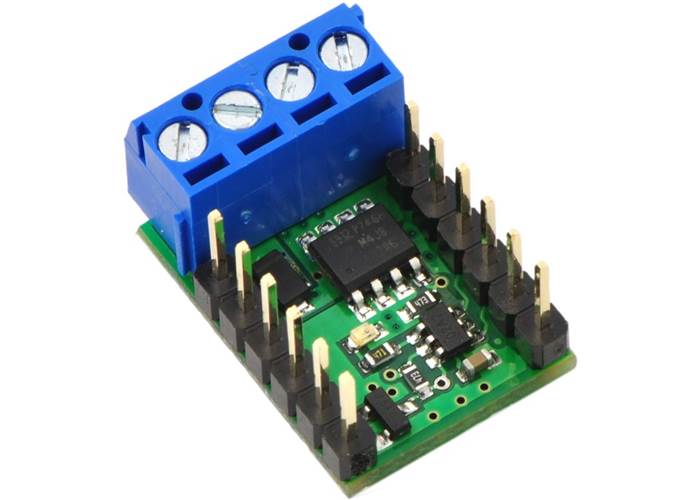

RC switch with medium low-side MOSFET - assembled

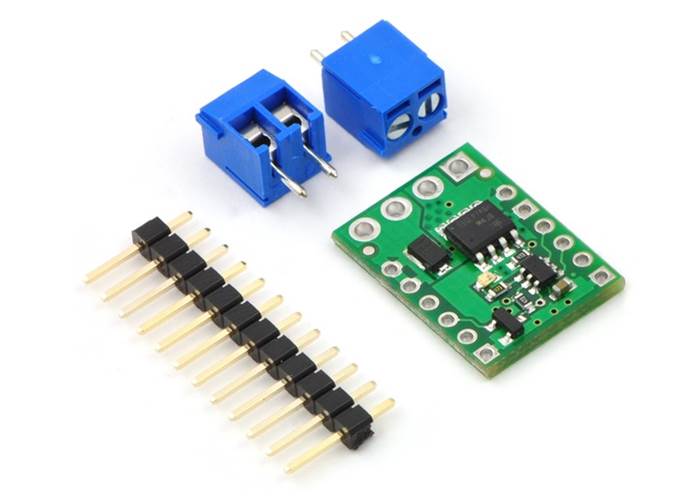

RC switch with medium low-side MOSFET - included bits
