128:1 Gear Motor with two 90 deg outputs

This 128:1 gearmotor (gearbox with motor) has a low-current motor and provides power and speed that is comparable to an RC servo at a fraction of the cost. Designed to work with our plastic wheels.

Discontinued

Back orders: 0 Available

Our Code: MEC-30156

Discontinued: Please see our 48:1 gearbox

Overview

This motor is a low cost drive system for robots and other robotics applications. The hobby DC motor has a wide operating voltage and the two output shafts allow for wheel and encoder mounting.

These gearboxes fit nicely with our plastic & rubber wheels and we also stock plastic gearmotor brackets to fit.

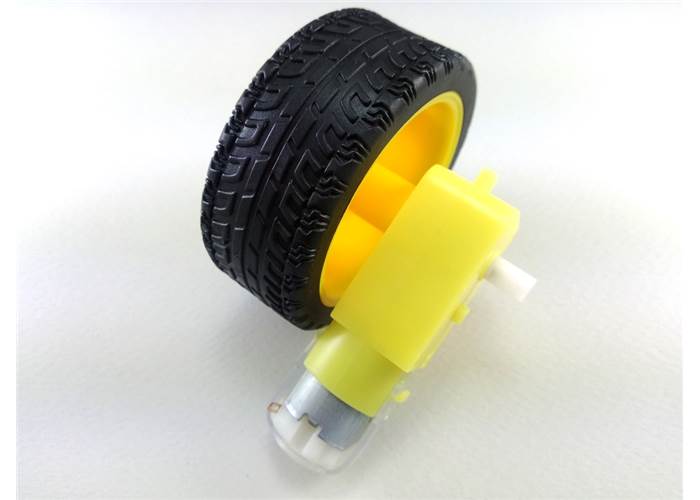

128:1 Plastic Gearmotor with 90 output - wheel mounted



Note: these motor shafts are not compatible with Solarbotics wheels and mounts (GMW).

Specifications

These are approximate specifications:

  • Speed at unload: 40r/m @3.0V 93r/m @6.0V
  • Current at unload: ≤160mA @3.0V ≤250mA @6.0V
  • Stall Torque: 2100g-cm
  • Stall Current: 870mA

Dimensions

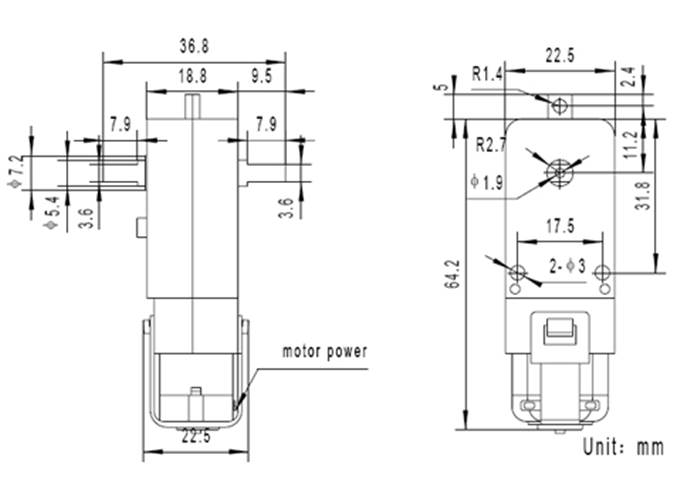

128-1 Gearmotor Dimensions
