The HD-1440A analog servo from Power HD is one of the smallest servos we carry and is a great, inexpensive, tiny actuator for a small robot mechanism. Servo horns and associated hardware are included. Key specs at 6 V: 0.10 sec/60°, 14 oz-in (1.0 kg-cm), 4.3 g.
This is a great general purpose servo when you want something very small. It's lead uses JR-style connector, which is Futaba-compatible.

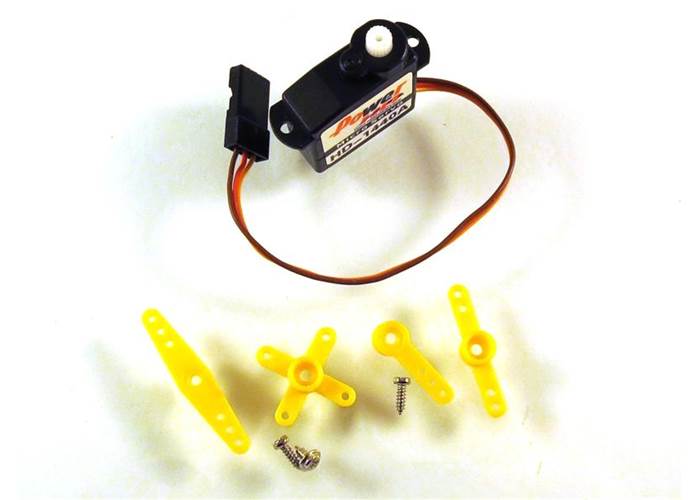

Power HD Sub-Micro Servo HD-1440A - included hardware
| Size: | 20.2 x 22.2 x 8.5 mm |
|---|---|
| Weight: | 4.3 g |
| Digital?: | N |
|---|---|
| Free-run current @ 6V: | 110 mA |
| Stall current @ 6V: | 320 mA |
| Speed @ 6V: | 0.10 sec/60° |
| Stall torque @ 6V: | 1.0 kg·cm |
| Speed @ 4.8V: | 0.12 sec/60° |
| Stall torque @ 4.8V: | 0.8 kg·cm |
| Lead length: | 4 in |
| Hardware included?: | Y |
