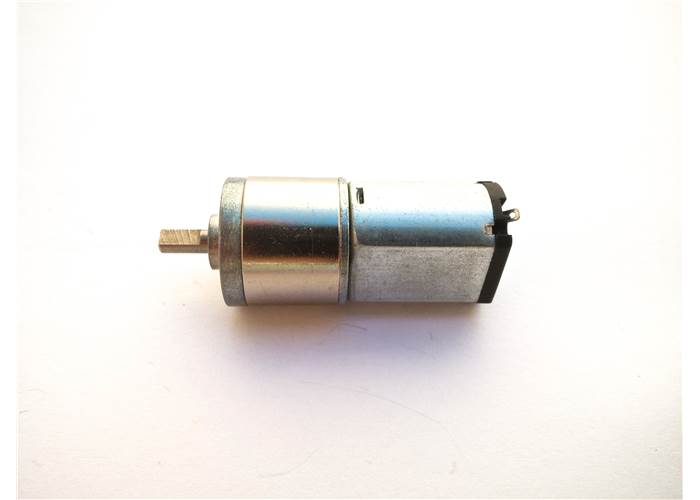

This metal gearmotor is a compact (33.2 Len x 16mm Dia) brushed DC motor with an enclosed 115:1 metal gearbox. These units have a 6mm-long, 3 mm-diameter D-shaped output shaft. Key specs at 6 V: 140 RPM and 60 mA free-run, 35 oz-in (2.5 kg-cm) and 0.8 A stall.
Not currently available
Our Code: MEC-030221
This brushed DC gearmotor has a 6mm long, 3 mm-diameter D-shaped metal output shaft that matches our assortment of wheels . Alternatively, our 3mm universal mounting hub can be used to mount custom wheels and mechanisms to the gearmotor’s output shaft.
The face plate has two mounting holes threaded for M2 screws.
| Size: | 16D x 33L mm |
|---|---|
| Weight: | 19 g |
| Shaft diameter: | 3 mm D-Shaft |
| Shaft length | 6mm |
| Gear ratio: | 115:1 |
|---|---|
| Free-run speed @ 6V: | 140 rpm |
| Free-run current @ 6V: | 60 mA |
| Stall current @ 6V: | 800 mA |
| Stall torque @ 6V: | 35 oz·in / 2.5kg-cm |
