Our Code: MEC-30094
The strongly made Rover 5 tracked chassis from Dagu Electronics is an excellent base for tank style robots. A unique design allows the tread height to be adjusted for extra clearance. Independant motors for each wheel include quadrature encoders for precise control. This version has 2 motors with encoders - one motor per rear wheel.

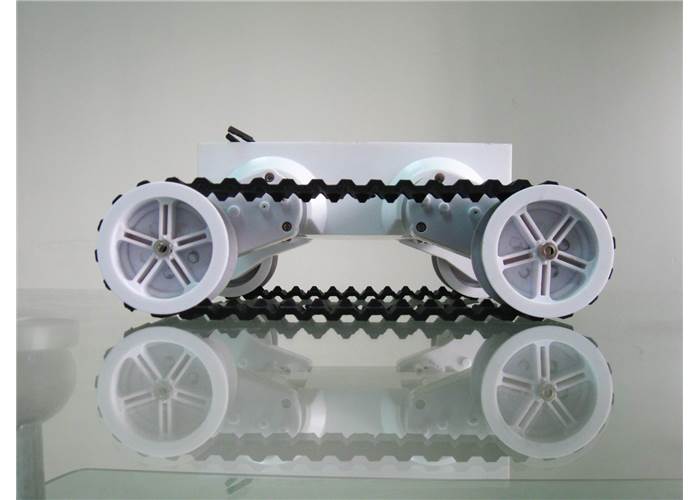

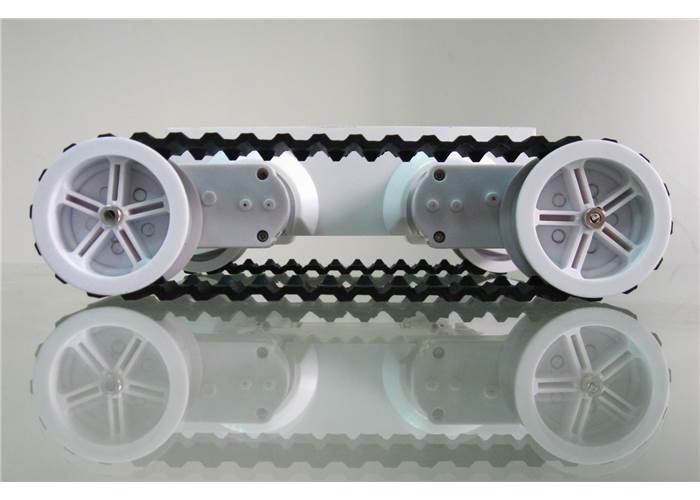

Rover 5 is a new breed of tracked robot chassis designed specifically for students and hobbyist. Unlike conventional tracked chassis’s the clearance can be adjusted by rotating the gearboxes in 5-degree increments. “Stretchy” rubber treads maintain tension as the clearance is raised.

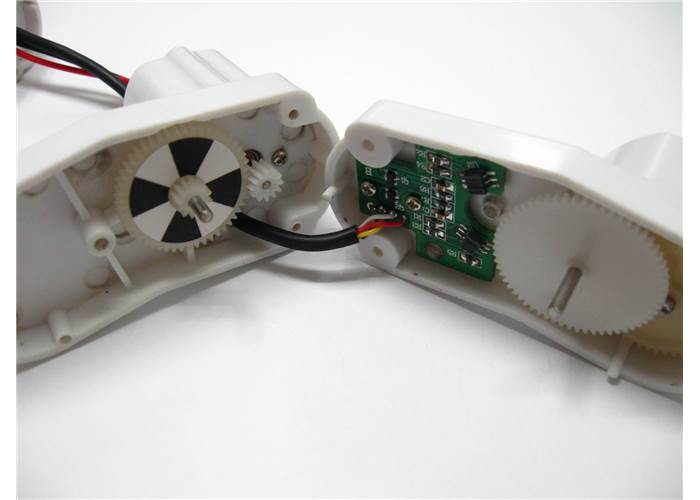

Each gearbox has an 87:1 ratio includes an optical quadrature encoder that gives 1000 pulses over 3 revolutions of the output shaft.
Inside of the chassis are 4 noise suppression coils at the bottom and a battery holder that accepts 6x AA batteries. It is recommended to use NiMh batteries as they last longer and have a higher current output than Alkaline batteries.

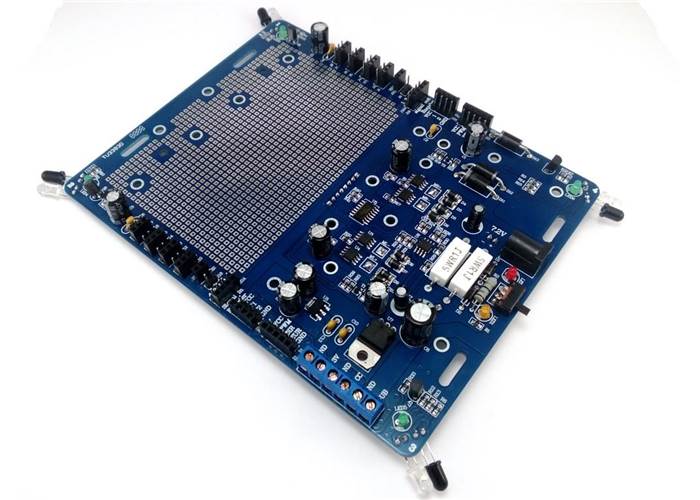

The quickest way to get the 2WD Rover chassis moving is with the Dagu Rover 5 Explorer PCB. This includes motor drivers, voltage regulators, encoder support and lots of places to plug in servos and sensors.
Dagu Rover 5 Explorer
The RP5 expansion plates from Pololu are also compatible with the Rover chassis. Both wide and narrow plates fit giving lots of space to add things on top.
Rover 5 with Pololu expansion plate and Orangutan Controller
We also stock the Dagu 4 Channel Motor controller that was designed for use with the Rover 5
Motor rated voltage: 7.2V
Motor stall current: 2.5A
Output shaft stall torque: 10Kg/cm
Gearbox ratio: 86.8:1
Encoder type: Quadrature
Encoder resolution: 1000 state changes per 3 wheel rotations
Speed: 1Km/hr ~25 cm / second
