Arduino Pro Mini 328 - 3.3V-8MHz

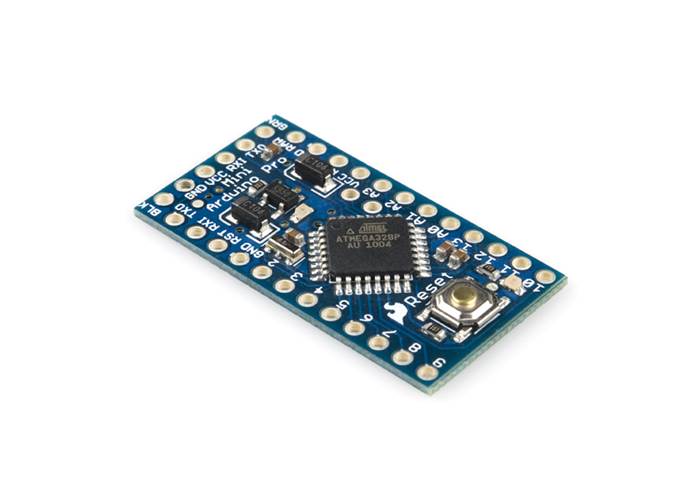

The Arduino Pro Mini 328 3.3V/8MHz is miniature Arduino microcontroller board by SparkFun Electronics. At a tiny 18mm x 33mm and 0.8mm high this board uses the same ATmega328 chip as the Arduino Uno but is much smaller, lighter and cheaper.

Discontinued

Our supplier is out of stock

Our Code: MCU-60054

Supplier Link: [SparkFun MPN:DEV-09220]

It's blue! It's thin (0.8mm)! It's the Arduino Pro Mini! SparkFun's minimal design approach to Arduino. This is a 3.3V Arduino running the 8MHz bootloader (select 'Arduino Duemilanove w/ 328' within the Arduino software). Arduino Pro Mini does not come with connectors populated so that you can solder in any connector or wire with any orientation you need. We recommend first time Arduino users start with the Duemilanove. It's a great board that will get you up and running quickly. The Arduino Pro series is meant for users that understand the limitations of system voltage (3.3V), lack of connectors, and USB off board.

We really wanted to minimize the cost of an Arduino. The Arduino Pro Mini is like the Arduino Mini (same pin out) but to keep the cost low, we used all SMD components, made it two layer, etc. This board connects directly to the FTDI Basic Breakout board and supports auto-reset. The Arduino Pro Mini also works with the FTDI cable but the FTDI cable does not bring out the DTR pin so the auto-reset feature will not work.

Features:

  • ATmega328 running at 8MHz with external resonator (0.5% tolerance)
  • Low-voltage board needs no interfacing circuitry to popular 3.3V devices and modules (GPS, accelerometers, sensors, etc)
  • USB connection off board
  • Supports auto-reset
  • 3.3V regulator
  • Max 150mA output
  • Over current protected
  • Reverse polarity protected
  • DC input 3.3V up to 12V
  • On board Power and Status LEDs

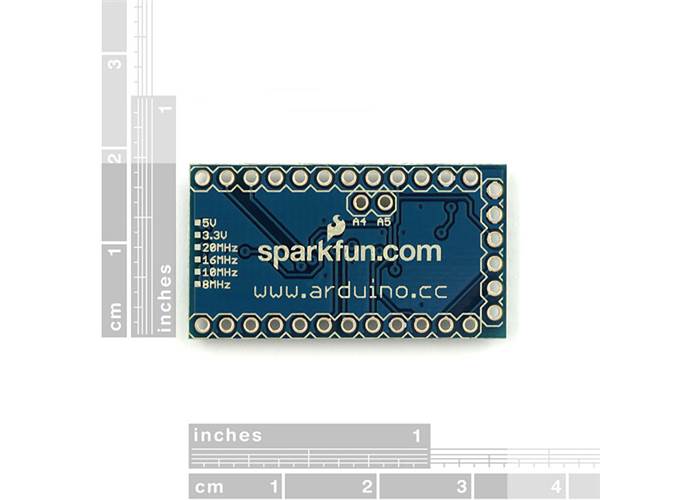

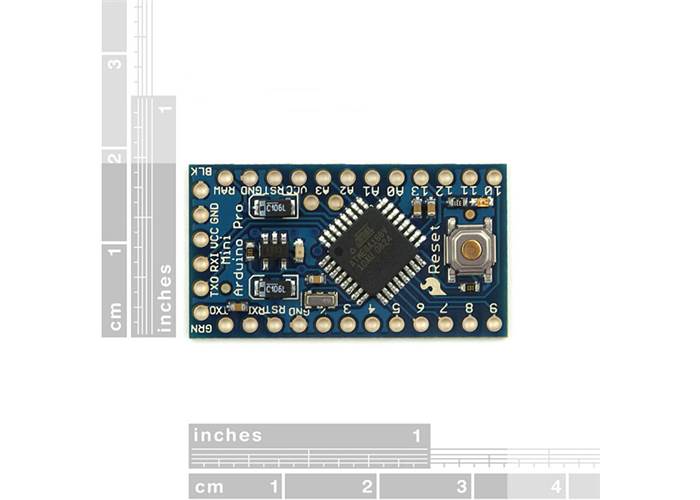

Dimensions:

  • 0.7x1.3" (18x33mm)
  • Less than 2 grams
