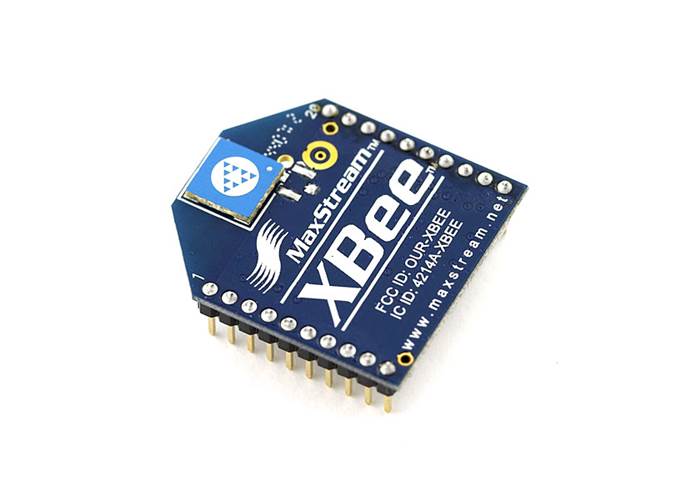

XBee 1mW Chip Antenna

This is the very popular 2.4GHz XBee module from Digi (formally Maxstream) which allows simple wireless communication between microcontrollers or any serial device with point-point or multi-point networking supported over a 100m range. Features a chip antenna.

Not currently available

Our Code: COM-40020

Supplier Link: [SparkFun MPN:WRL-08664]


Overview

This is the very popular 2.4GHz XBee module from Digi (formally Maxstream). These modules take the 802.15.4 stack (the basis for Zigbee) and wrap it into a simple to use serial command set. These modules allow a very reliable and simple communication between microcontrollers, computers, systems, really anything with a serial port! Point to point and multi-point networks are supported.

Features:

  • 3.3V @ 50mA
  • 250kbps Max data rate
  • 1mW output (+0dBm)
  • 300ft (100m) range
  • Built-in antenna
  • Fully FCC certified
  • 6 10-bit ADC input pins
  • 8 digital IO pins
  • 128-bit encryption
  • Local or over-air configuration
  • AT or API command set
