Pololu QTR-1A Reflector Sensor with Analog Output

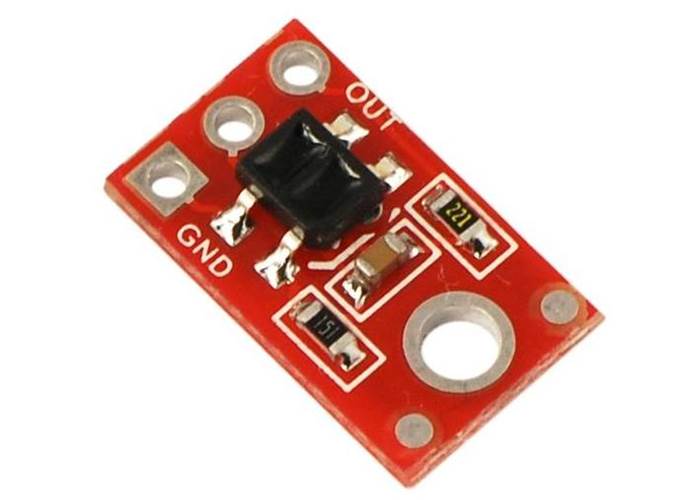

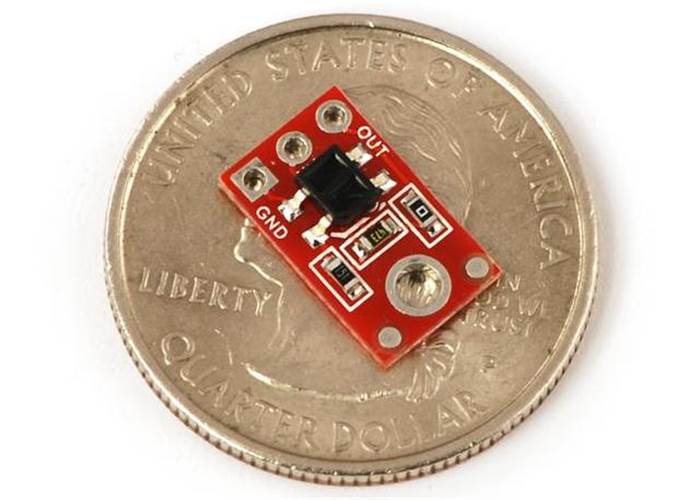

The QTR-1A reflectance sensor carries a single infrared LED and phototransistor pair in an inexpensive, tiny 0.5" x 0.3" module that can be mounted almost anywhere and is great for edge detection and line following applications. The reflectance measurement is output as an analog voltage.

Not currently available

Our Code: SEN-10030

Supplier Link: [Pololu MPN:958]

Discontinued. Replaced by SEN-10061: Pololu QTR-1A Reflector Sensor with Analog Output (2 Pack)

Overview

Note: The QTR-1A reflectance sensor requires an analog input to take readings. The similar QTR-1RC reflectance sensor is available with a digital I/O-compatible output.

Functional Description

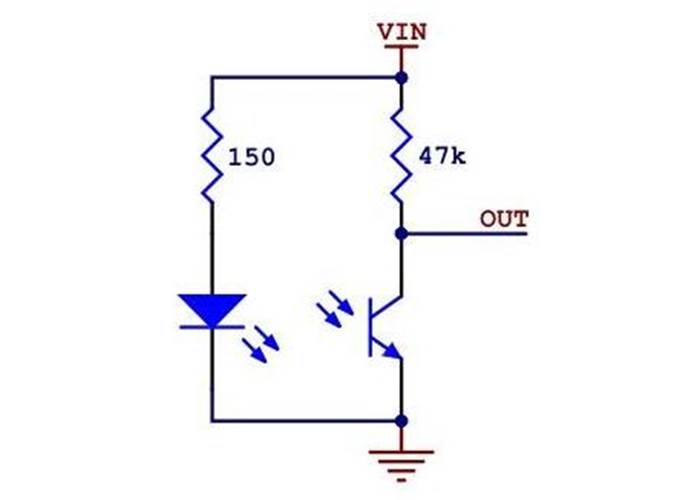

The Pololu QTR-1A reflectance sensor carries a single infrared LED and phototransistor pair. The phototransistor is connected to a pull-up resistor to form a voltage divider that produces an analog voltage output between 0 V and VIN (which is typically 5 V) as a function of the reflected IR. Lower output voltage is an indication of greater reflection.

The LED current-limiting resistor is set to deliver approximately 20-25 mA to the LED when VIN is 5 V. The current requirement can be met by some microcontroller I/O lines, allowing the sensor to be powered up and down through an I/O line to conserve power.

Because of its small size, multiple units can easily be arranged to fit various applications such as line sensing and proximity/edge detection.

Specifications

Dimensions: 0.3" x 0.5" x 0.1" (without header pins installed)
Operating voltage: 5.0 V
Supply current: 25 mA
Output format: analog voltage
Output voltage range: 0 to supplied voltage
Optimal sensing distance: 0.125" (3 mm)
Maximum recommended sensing distance: 0.25" (6 mm)
Weight without header pins: 0.008 oz (0.23 g)

Interfacing with the QTR-1A Output

There are several ways you can interface with the QTR-1A output:

Use a microcontroller’s analog-to-digital converter (ADC) to measure the voltage.
Use a comparator with an adjustable threshold to convert the analog voltage into a digital (i.e. black/white) signal that can be read by the digital I/O line of a microcontroller.
Connect the output directly to the digital I/O line of a microcontroller and rely upon its internal comparator.

The Pololu AVR library provides functions that make it easy to use these sensors with our Orangutan robot controllers and other AVR-based controller boards such as Arduinos.

Included Components

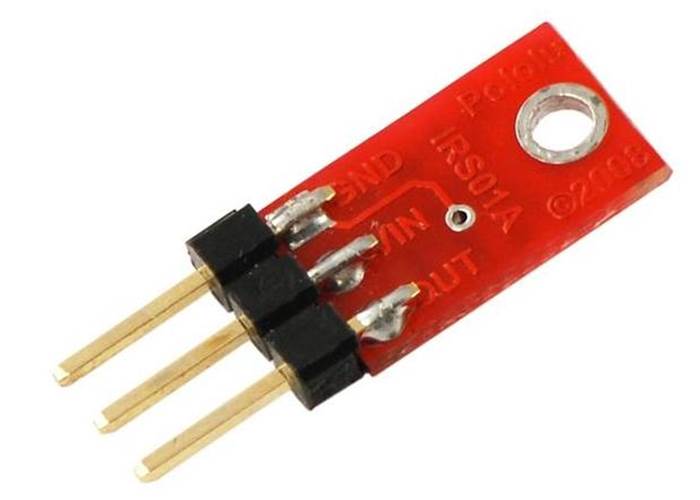

This module has a single mounting hole intended for a #2 screw (not included); if this mounting hole is not needed, this portion of the PCB can be ground off to make the unit even smaller. The reflectance sensor ships with a 3-pin 0.1" header strip, which can be soldered in the conventional perpendicular orientation or parallel to the PCB, as shown below. You can also solder wires, such as ribbon cable, directly to the pads for the smallest installation.

Resources

Documentation and other information

Pololu QTR Reflectance Sensor Application Note (Printable PDF: QTR_application_note.pdf)

Information about using the Pololu QTR-xA and QTR-xRC reflectance sensors, including sample oscilloscope screen captures of sensor outputs.

Pololu AVR C/C++ Library User’s Guide (Printable PDF: pololu_avr_library.pdf)

Information about installing and using the C/C++ libraries provided for use with Pololu products.

Arduino Library for the Pololu QTR Reflectance Sensors (Printable PDF: QTR_arduino_library.pdf)

This guide explains how to use the QTRSensors library to read Pololu QTR sensors and QTR sensor arrays with Arduinos and Arduino-compatible devices like the Pololu Orangutan robot controllers.

Pololu AVR Library Command Reference (Printable PDF: avr_library_commands.pdf)

A reference to commands provided in the Pololu C/C++ and Arduino libraries for the AVR.

Building Line Following and Line Maze Courses (Printable PDF: building_line_courses.pdf)

Step-by-step instructions for building your own line-following courses.

File downloads

Datasheet for Fairchild’s QRE1113GR reflective object sensor (202k pdf): This is the sensor that we initially used in the Pololu QTR reflectance sensors, but we have since switched to a similar generic unit that has slightly longer range.
