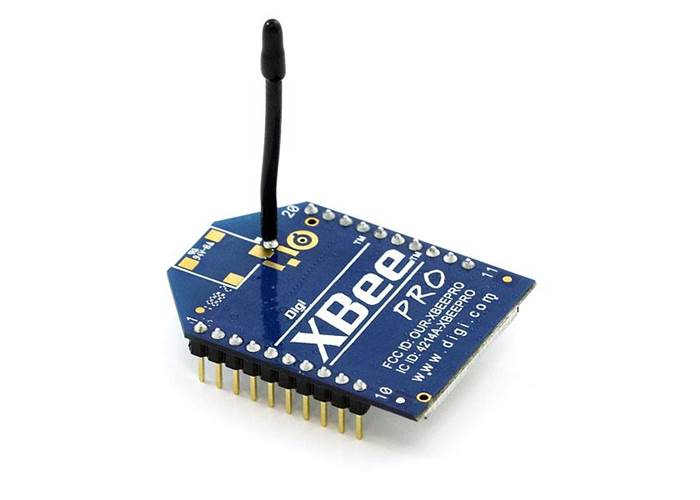

XBee Pro Module 60mW Series 1 - Wire Antenna

The 2.4GHz XBee series 1 Pro module from Digi (was Maxstream) enables wireless serial communication between microcontrollers or any other serial device. It supports point-point or multi-point star networking and a range up to a huge 1500m. This version has a wire antenna.

Not currently available

Our Code: COM-40017

Supplier Link: [SparkFun MPN:WRL-08742]


XBee series 1 Pro modules are a great option when you want to wirelessly network microcontrollers together where they enable serial communications up to 250kbps over 1500m . Using the the Zigbee 802.15.4 stack these XBee modules provide a simple serial command set for control of the transceiver.

The Pro modules have the same pins and command set as the cheaper standard modules. The difference is they use a bit more power but have a huge range of up to 1500m.

Networking can be done between two devices (point to point) or between one device and many (point to multipoint or star).

These can be used to connect a computer to a number of Arduino devices in the field at the same time or to get two microcontrollers talking wirelessly.

This is a series one XBee device. It will work with the other Series one XBee radios we sell and you can mix and match the Pro and standard versions on the same network.


  • 3.3V @ 215mA
  • 250kbps Max data rate
  • 60mW output (+18dBm)
  • 1 mile (1500m) range
  • Built-in antenna
  • Fully FCC certified
  • 6 10-bit ADC input pins
  • 8 digital IO pins
  • 128-bit encryption
  • Local or over-air configuration
  • AT or API command set
