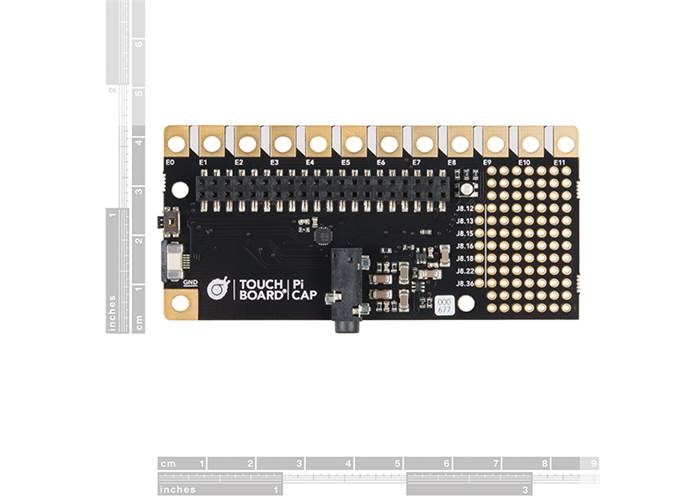

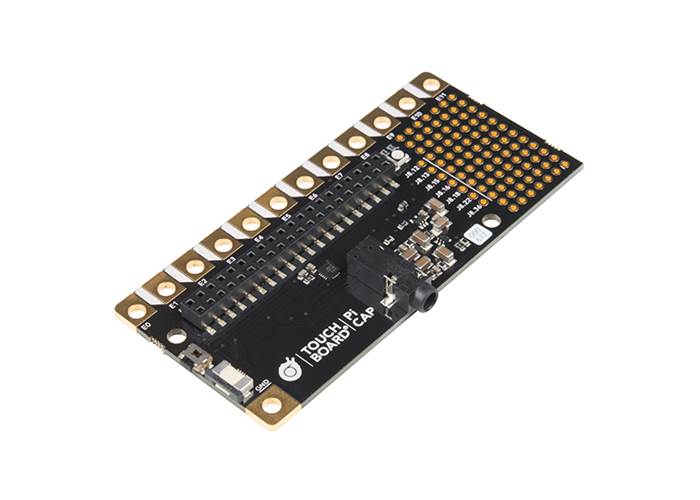

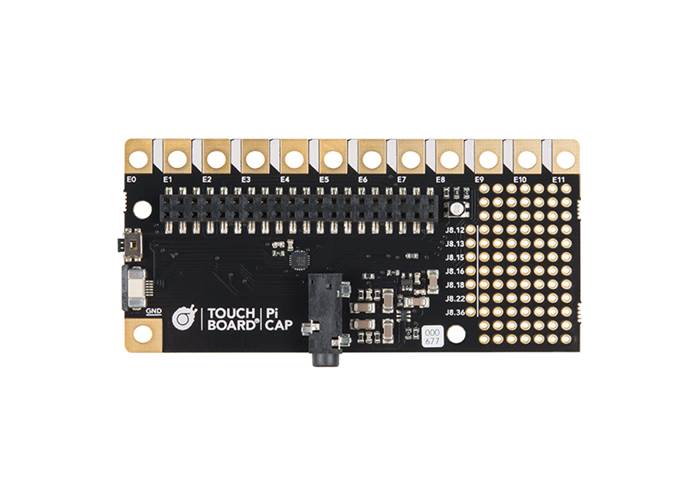

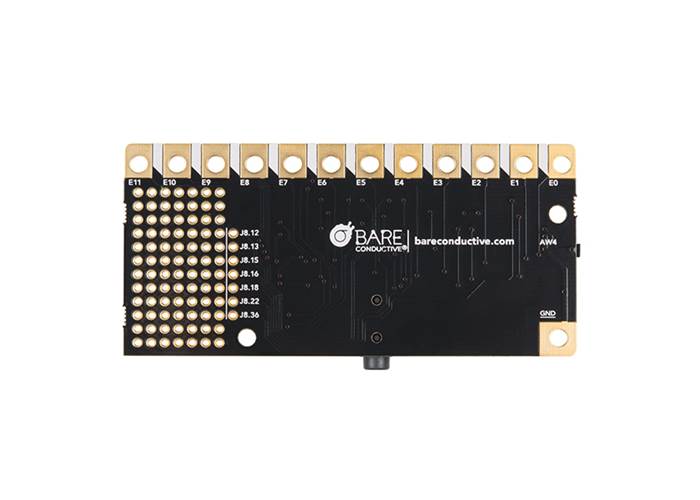

Bare Conductive Pi Cap

This is the Bare Conductive Pi Cap, a small shield-like device that adds precise capacitive touch, distance sensing and high quality audio to your Raspberry Pi A+, B+, Zero and later (any Raspberry Pi with a 40 pin GPIO connector).

Discontinued

No Stock Available

Our Code: SKU-003828

Supplier Link: [SparkFun MPN:14065]


Description

This is the Bare Conductive Pi Cap, a small shield-like device that adds precise capacitive touch, distance sensing and high quality audio to your Raspberry Pi A+, B+, Zero and later (any Raspberry Pi with a 40 pin GPIO connector). Connect Electric Paint or anything conductive to one of the 12 electrodes to control sounds, video and more. Connecting the physical world to the digital world is easy with Bare Conductive’s fully featured libraries and extensive online tutorials.

The Pi Cap software is in the official Raspbian repository, so installing all the software you need is as easy as Pi. This also means you’ll get updates through apt-get, just like you do with the core Raspberry Pi packages.

Dimensions: 85mm x 40mm x 7mm


Specifications

  • High quality audio output
  • Extensive tutorials and easy startup experience
  • Powerful Python and C++ libraries so that you can include sensors in your project
  • User-programmable RGB LED and multi function button
  • Prototyping area with GPIO breakout to add additional sensors or buttons
  • Works with Raspberry Pi A+, B+, Zero and later (Any Raspberry Pi with a 40 pin GPIO connector)
