Pimoroni Display-O-Tron HAT

The Pimoroni Display-O-Tron HAT is a “shield” for the Raspberry Pi that provides you with a 16x3 character LCD as well as a full ASCII character set you can define eight of your own custom characters for special icons, graphs, or decoration for your Pi.

Discontinued

Back orders: 0 Available

Our Code: SKU-003827

Supplier: [SparkFun MPN:14040]


Description

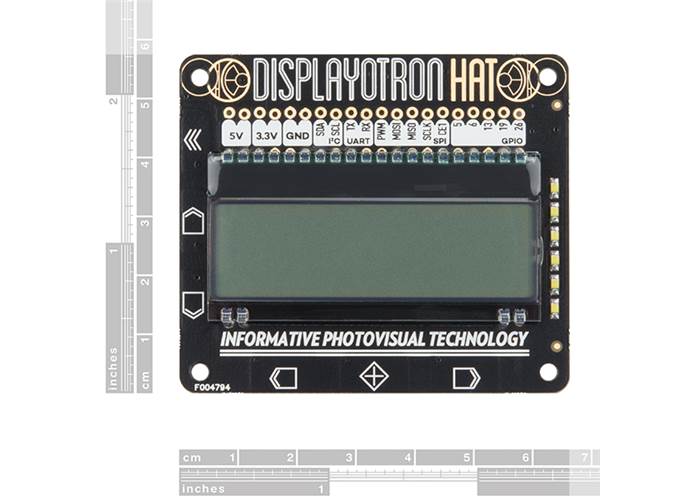

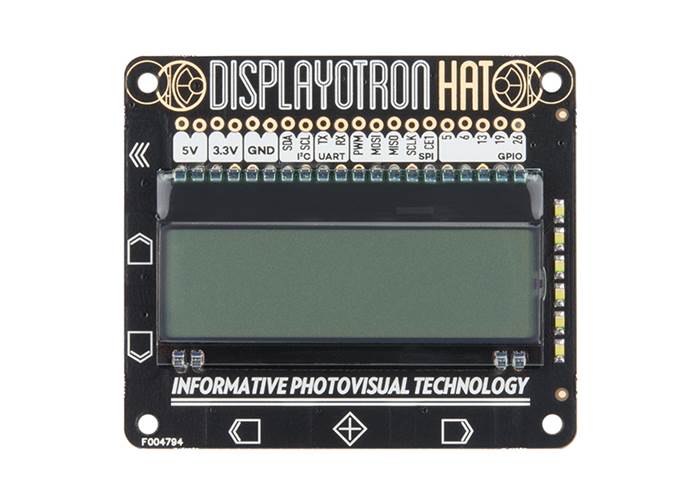

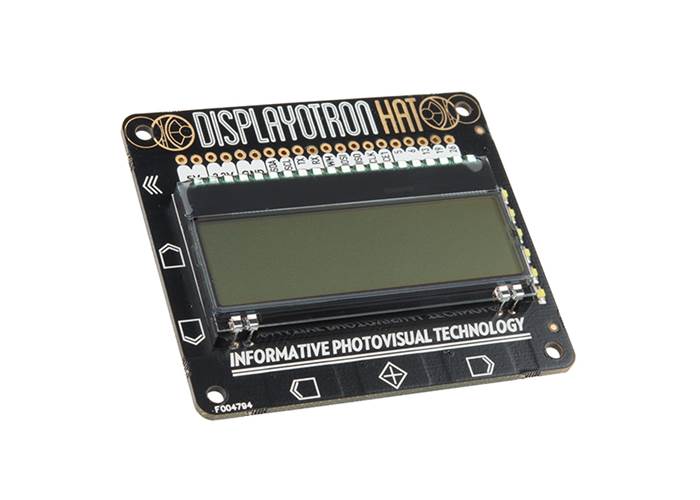

The Pimoroni Display-O-Tron HAT is a “shield” for the Raspberry Pi that provides you with a 16x3 character LCD as well as a full ASCII character set you can define eight of your own custom characters for special icons, graphs, or decoration for your Pi. This HAT has been equipped with multiple capacitive touch pads, a six-zone RGB backlight, and GPIO breakout pins.

Apart from the large black on white LCD screen (with dazzling six-zone RGB backlight) and six capacitive touch navigation buttons, the Display-O-Tron features a six-element LED bar graph which is ideal for monitoring changing statistics such as CPU load or memory usage.

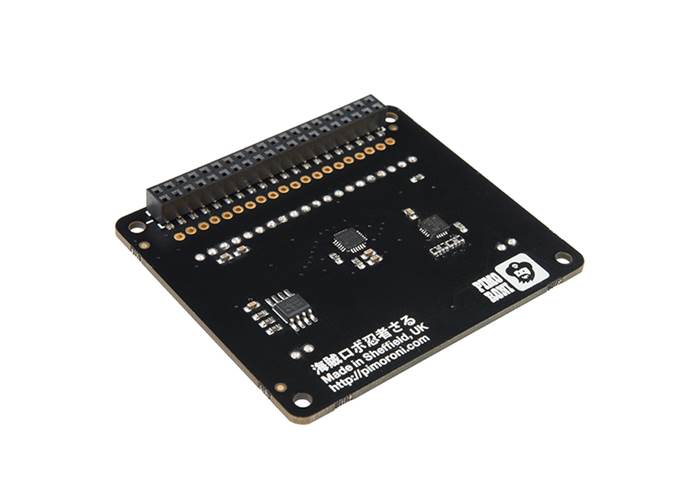

Each Pimoroni Display-O-Tron HAT easily snaps on top of a Raspberry Pi equipped with a 40-pin (2x20) GPIO. Pimoroni has created a GitHub repository bundling the Display-O-Tron software with a set of examples to get you started into an easy-to-use Python module to get started right away.


Specifications

  • Fully assembled (apart from optional GPIO header)
  • Super slim 16x3 character LCD display
  • Six capacitive touch input buttons 8 Handy six element LED bargraph
  • Six-zone RGB backlight with diffuser
  • GPIO breakout for 5V, 3V3, GND, SDA/SCL, TX/RX, PWM, MOSI/MISO/SCLK/CE1, and GPIO #5, #6, #13, #19, #26
  • Full ASCII set plus eight custom characters
