XBee Explorer Regulated by SparkFun

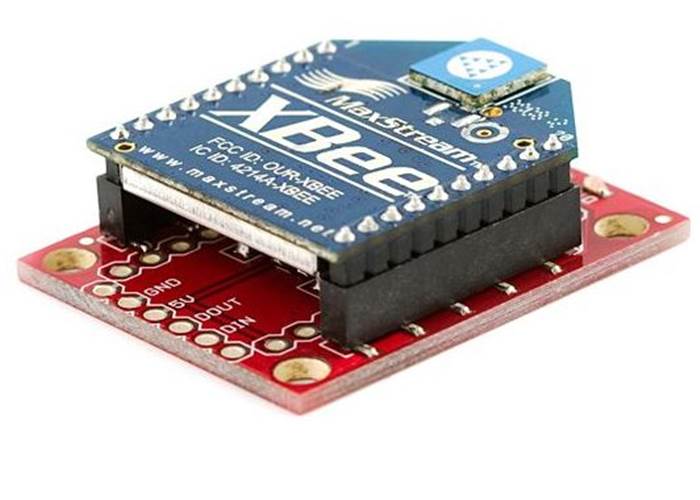

The XBee Explorer (Regulated) by SparkFun Electronics allows any XBee module to be fitted to your project. The Explorer takes care of the 3.3V regulation, signal conditioning, and basic activity indicators (Power, RSSI and DIN/DOUT activity LEDs). This is the Explorer board only. XBee modules sold seperately.

Not currently available

Our Code: COM-40012

Supplier Link: [SparkFun MPN:WRL-09132]

You get the red board only. XBee modules sold below.

The XBee Explorer Regulated takes care of the 3.3V regulation, signal conditioning, and basic activity indicators (Power, RSSI and DIN/DOUT activity LEDs). It translates the 5V serial signals to 3.3V so that you can connect a 5V (down to 3.3V) system to any XBee module. The board was conveniently designed to mate directly with Arduino Pro boards for wireless bootloading and USB based configuration.

This unit works with all XBee modules including the Series 1 and 2, standard and Pro versions. Plug an XBee into this breakout and you will have direct access to the serial and programming pins on the XBee unit and will be able to power the XBee with 5V.

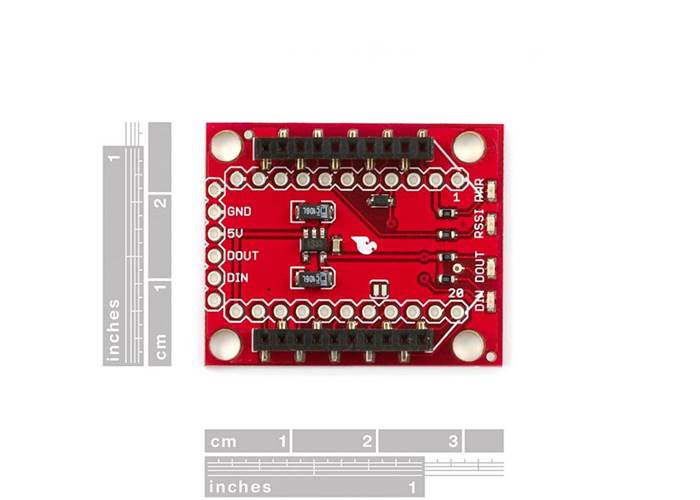

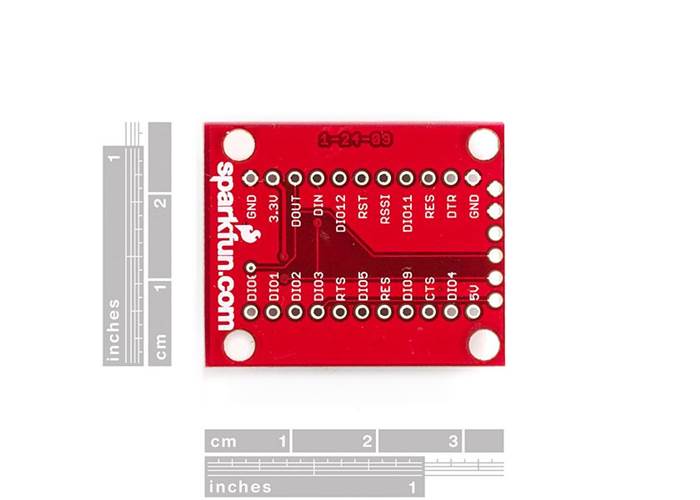

This board comes fully populated with 3.3V regulator (12V max input), XBee socket, four status LEDs, and level shifting. In the latest revision the diode level shifter is replaced with a more robust MOSFET level shifter. This board does not include and XBee module. XBee modules sold below.
