Pololu 20D mm Metal Gearmotor Bracket Pair for 25:1 motor

DISCONTINUED. These aluminium gearmotor brackets let you securely mount Pololu’s 20D mm metal gearmotors to your project. The brackets are sold in pairs, and each bracket includes two M3 screws for securing the motor to the bracket.

Discontinued

Our supplier is out of stock

Our Code: MEC-30022

Supplier Link: [Pololu MPN:1082]

This bracket fits the now discontinued 25:1 metal gearmotor 20Dx44L mm.

Overview

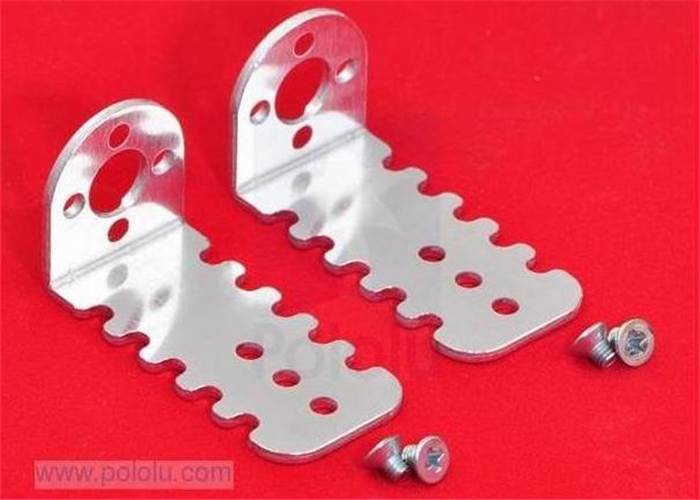

These light-weight brackets (under 5 g each) are specifically designed for the Pololu 20D mm metal gearmotors, such as the 25:1 metal gearmotor 20Dx44L mm. Each bracket features three mounting holes and ten mounting slots for M3 or #4-size screws, giving you a variety of mounting options. A total of four M3 screws (two for each bracket) are included for securing the motor to the bracket.

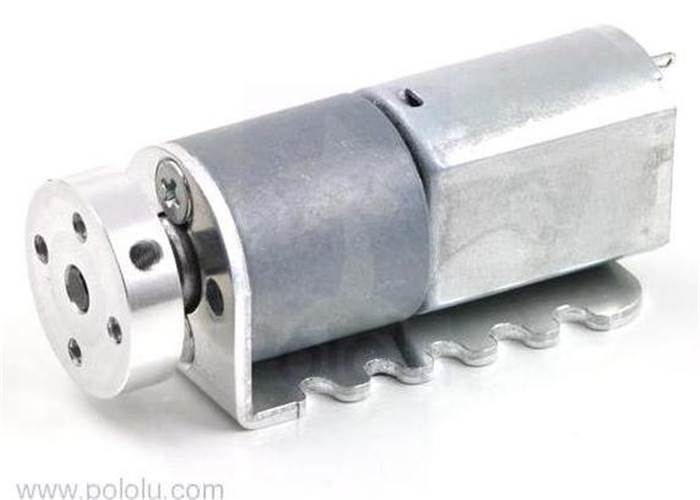

The hub pictured to the right works nicely with this bracket.

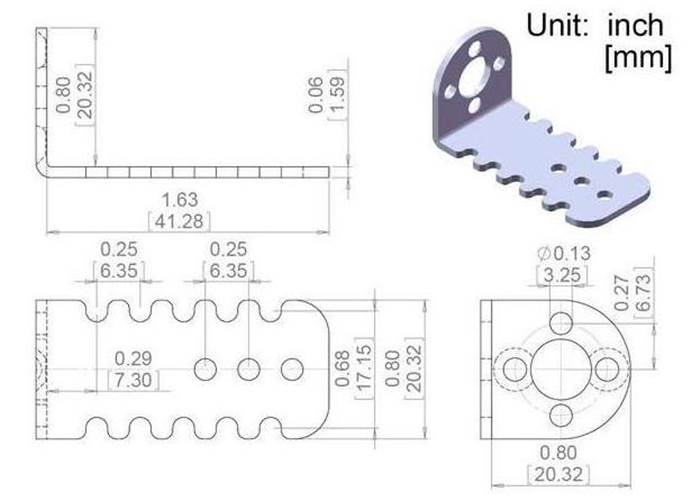

Mechanical drawing for the Pololu 20D mm metal gearmotor bracket.
