Shaft Collar - Clamp (1/4", 2 Pack)

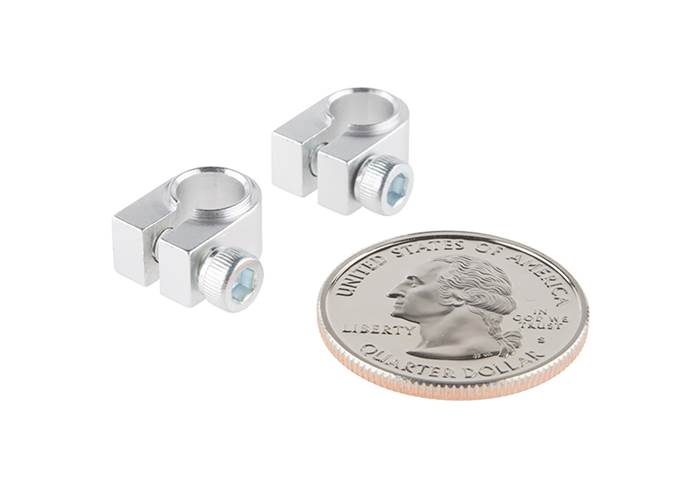

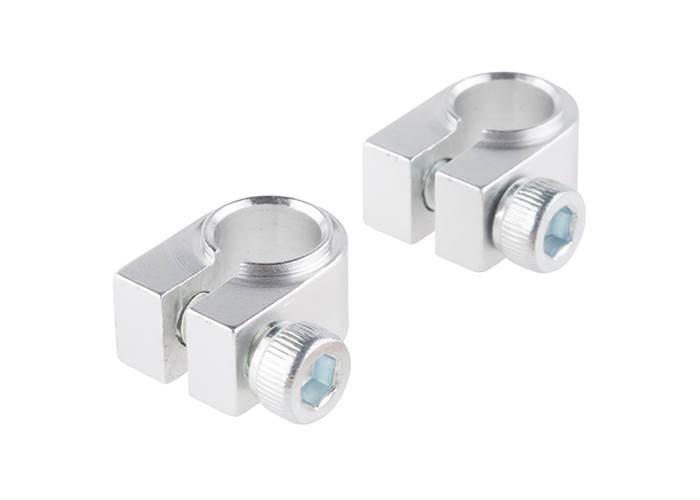

These collars clamp to a ¼” shaft and feature a lip edge which helps eliminate friction when used with a ball bearing. Simply slide them on and tighten the 6-32 x 0.375” screw. These clamp collars have a bore of 0.25”, a width of 0.375”, and a thickness of 0.25”.

Discontinued

Our supplier is out of stock

Our Code: SKU-002045

Supplier Link: [SparkFun MPN:13161]


Description

These collars clamp to a ¼” shaft and feature a lip edge which helps eliminate friction when used with a ball bearing. Simply slide them on and tighten the 6-32 x 0.375” screw. These clamp collars have a bore of 0.25”, a width of 0.375”, and a thickness of 0.25”.

Actobotics is a robotics building system based around extruded aluminium channels, gears, precision shafts, and ball bearings. Thanks to the two standardized hole patterns, nearly all Actobotics components can be intuitively connected together. The wide range of components makes building complex electromechanical prototypes or finished projects a reality.


Dimensions

  • Bore - 0.25”
  • Width - 0.375”
  • Thickness - 0.25”
  • Screw - 6-32 x 0.375”
