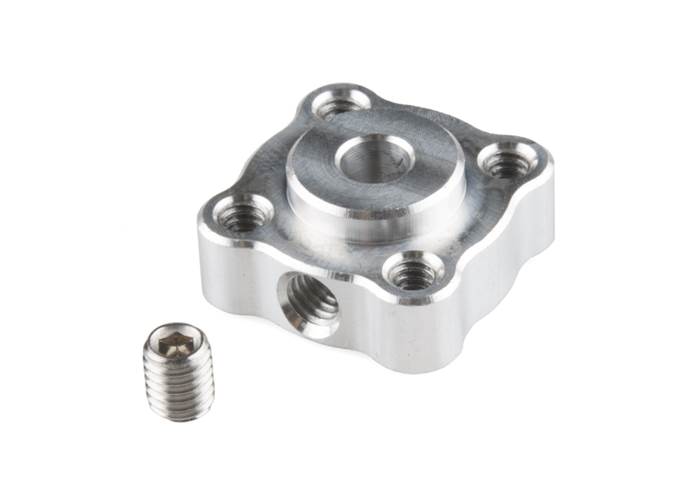

Set Screw Hub - 5mm Bore

Set screw hubs offer a cheap way to attach hub mount gears or wheels to a shaft. The hub offers 4 equally spaced 6-32 tapped holes utilising the 0.77" hub pattern and is precision machined from 6061 T6 aluminium. The set-screw is 10-32 and uses a 3/32” hex key. This hub has a 5mm bore.

Discontinued

Our supplier is out of stock

Our Code: SKU-001577

Supplier Link: [SparkFun MPN:12404]


Description

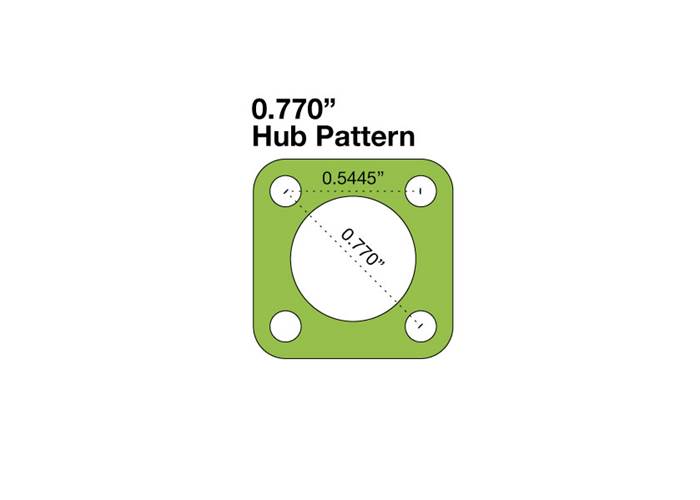

Set screw hubs offer a cheap way to attach hub mount gears or wheels to a shaft. The hub offers 4 equally spaced 6-32 tapped holes utilising the 0.77" hub pattern and is precision machined from 6061 T6 aluminium. The set-screw is 10-32 and uses a 3/32” hex key. This hub has a 5mm bore.

Actobotics is a robotics building system based around extruded aluminium channels, gears, precision shafts, and ball bearings. Thanks to the two standardized hole patterns, nearly all Actobotics components can be intuitively connected together. The wide range of components makes building complex electromechanical prototypes or finished projects a reality.
