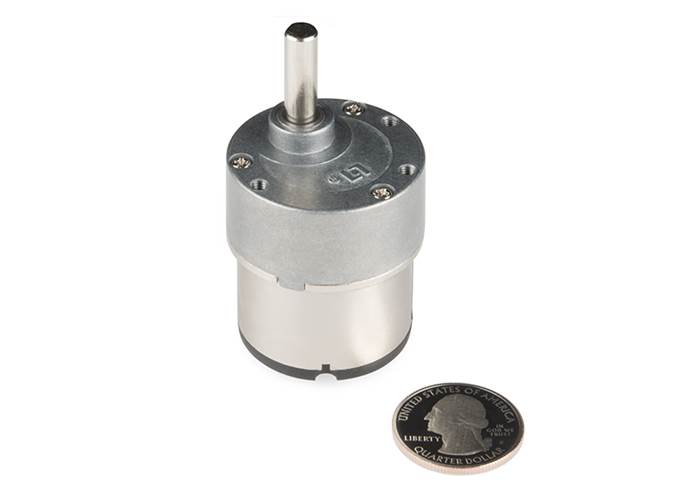

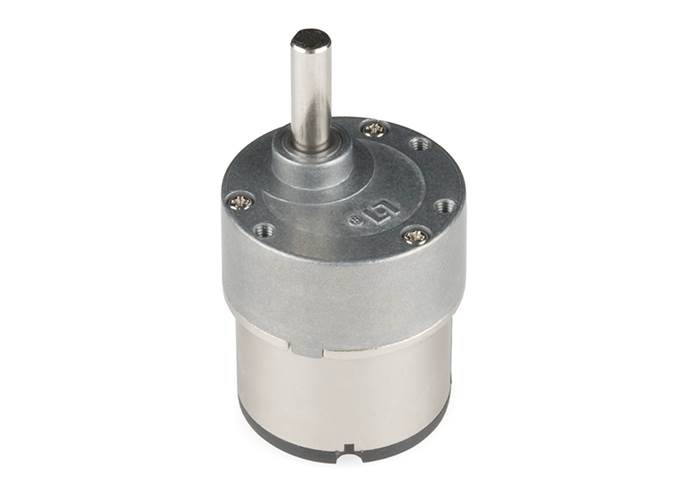

Standard Gearmotor - 81 RPM (3-12V)

These standard gearmotors are incredibly tough and feature full metal gears to help you drive wheels, gears, or almost anything else that needs to turn. They have a gear ratio of 50:1 and operate up to 12 volts and deliver a stall torque of 57 oz-in. and a max speed of 81 RPM.


Description

These standard gearmotors are incredibly tough and feature full metal gears to help you drive wheels, gears, or almost anything else that needs to turn. They have a gear ratio of 50:1 and operate up to 12 volts and deliver a stall torque of 57 oz-in. and a max speed of 81 RPM. Each standard gearmotor sports a 6mm diameter D-shaft.


Specifications

  • Voltage: 3 - 12 Volts
  • Gear Ratio: 50:1
  • Stall Torque: 57 oz-in. (@ 12V)
  • Speed: 81 RPM (@ 12V)
  • No Load Current: 195 mA (@ 12V)
  • Stall Current: 0.5A (@ 12V)
  • Insulation Resistance: 10 MOhm
  • Dielectric Strength: 300VDC
  • DC Reversible
  • Shaft Size: 6mm Diameter x 0.715” Length
  • Weight: 4.2 oz.
