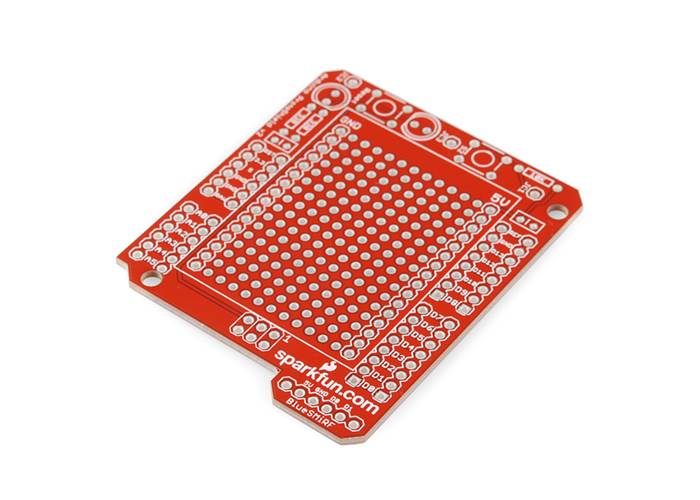

Arduino ProtoShield - Bare PCB

By popular request, we’re selling the always-handy ProtoShield PCB on its own! Originally spawned with collaboration between the folks at SFE and ITP @ NYU , the ProtoShield mates with an Arduino development board and gives the user a small soldering area, two general LED footprints, access to a ...

Discontinued

Our supplier is out of stock

Our Code: SKU-001082

Supplier Link: [SparkFun MPN:11665]


Description

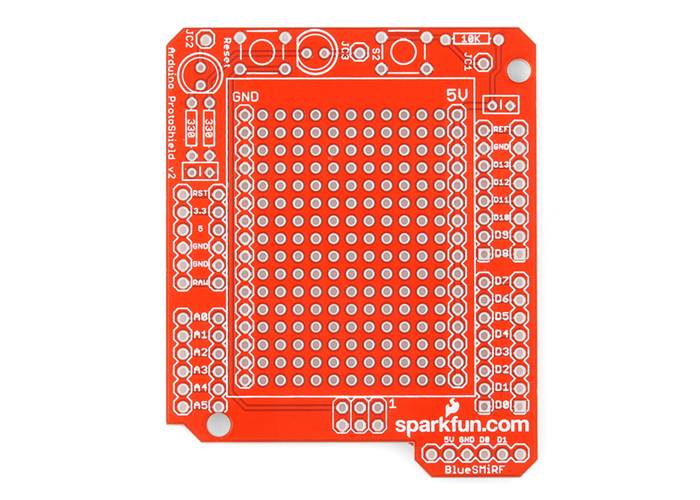

By popular request, we’re selling the always-handy ProtoShield PCB on its own! Originally spawned with collaboration between the folks at SFE and ITP @ NYU, the ProtoShield mates with an Arduino development board and gives the user a small soldering area, two general LED footprints, access to a BlueSMiRF socket, a general pushbutton switch footprint, and most important of all - the Arduino reset switch is brought to the top level.

Now you don’t need to buy the whole ProtoShield kit if you just need a piece of prototyping board that will fit on top of your Arduino. You might want to grab a stackable header kit, though, which you can find in the related items below.

Note: Though this board is compatible with the Arduino R3 it does not posses the additional pins that the R3 offers. Make sure you pick your headers accordingly.
