Smart SMD Tester

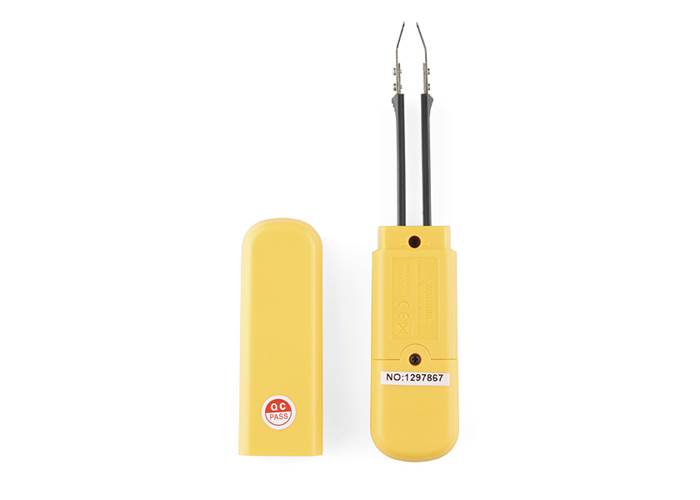

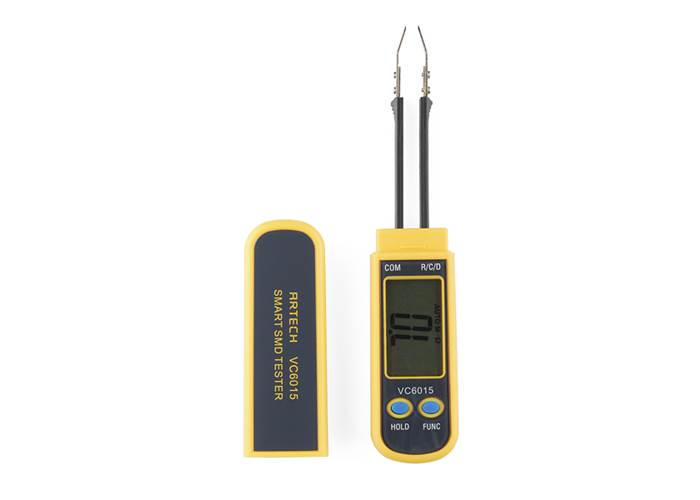

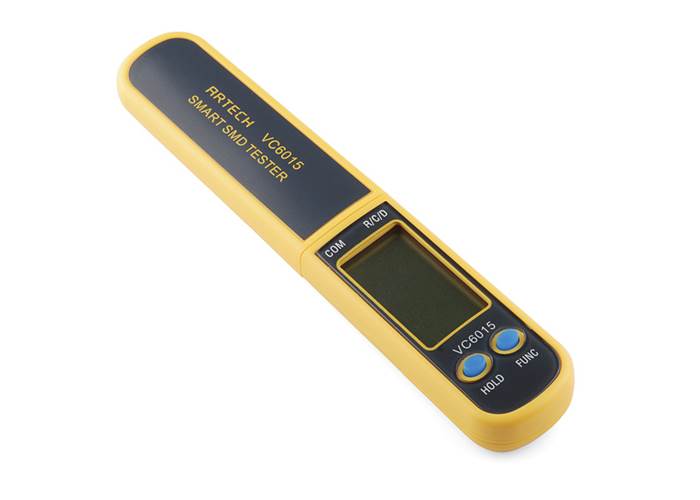

This smart SMD tester is essentially a pair of multimeter tweezers. This allows you to troubleshoot circuits with small SMD parts without having to fumble with large probes or long wires.

Not currently available

Our Code: SKU-000804

Supplier Link: [SparkFun MPN:10829]

Description

This smart SMD tester is essentially a pair of multimeter tweezers. This allows you to troubleshoot circuits with small SMD parts without having to fumble with large probes or long wires. Test resistors, capacitors and diodes one-handed!

Specifications

Resistance Range: 300Ω/3KΩ/30KΩ/300KΩ ±(1.0%+5) 3M/30MΩ ±(2%+5)
Capacitance Range: 3n/30n/300n/3µ/30µ/300µF ±(3%+5) 3000µ/30000µF ±(5%+5)
Powered by One CR2032 Button Cell Battery
Unit Symbol Display
Weighs only 68g
Auto Range
Auto Scan
