Circular LED Bargraphs - Red

Discontinued

Back orders: 0 Available

Our Code: SKU-000729

Supplier: [SparkFun MPN:10595]

These circular LED displays are a lot of fun. Essentially, these are what you would get if you could ‘wrap’ one of our LED bargraphs around a circle.


Description

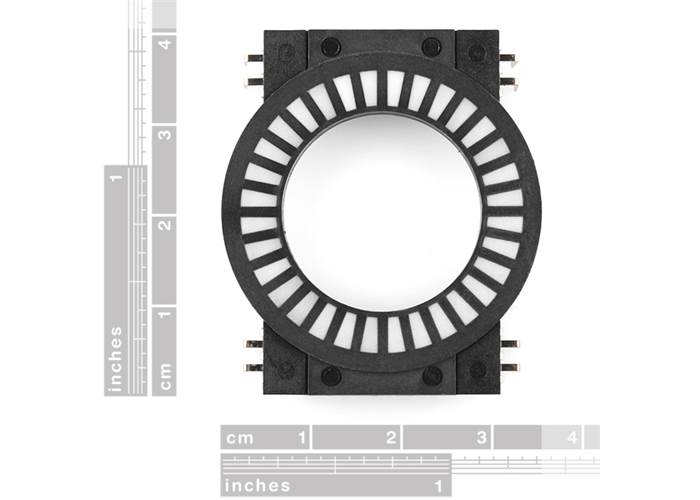

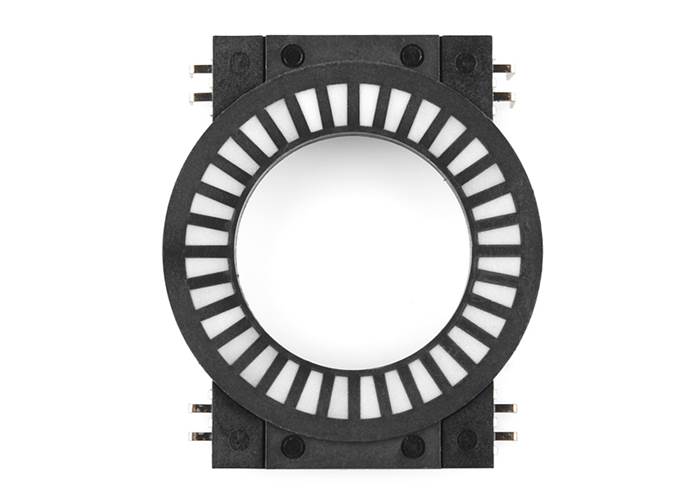

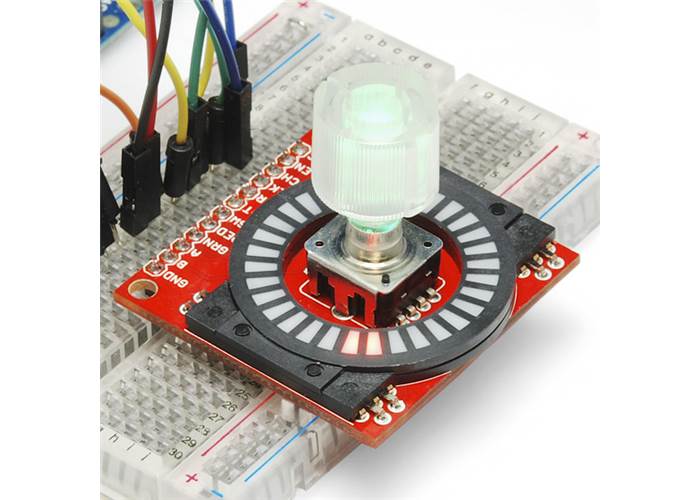

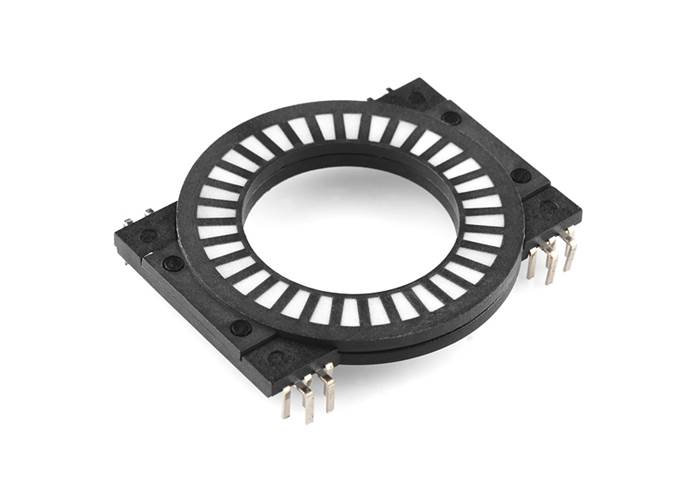

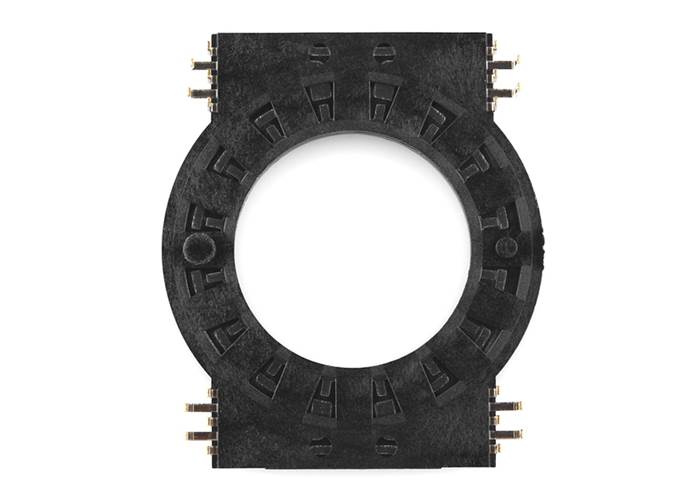

These circular LED displays are a lot of fun. Essentially, these are what you would get if you could ‘wrap’ one of our LED bargraphs around a circle. They consist of 16 red LEDs arranged so that each quarter of the circle has a common ground and four anode pins, resulting in 20 pins total on the device. Because they’re simply a bunch of cleverly packaged LEDs, they’re just as easy to use as our LED bargraphs. These are great for indicating the position of a rotary encoder!


Specifications

  • 16 Red LEDs
  • Max Forward Voltage: 2.4V
  • Dominant Wavelength: 624nm
  • Continuous Forward Current: 25mA
