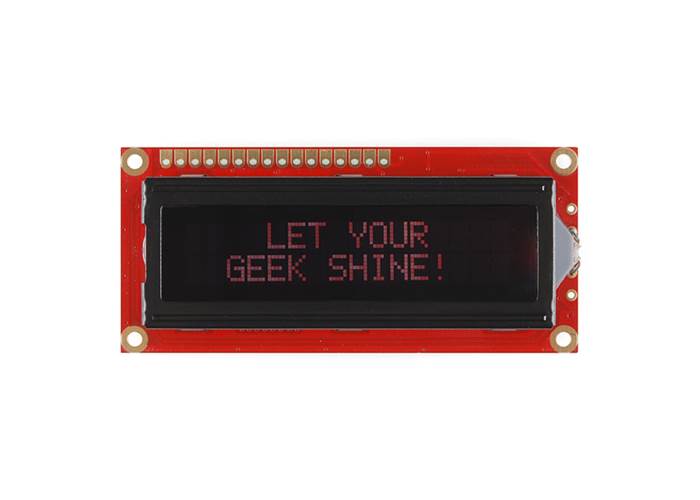

Basic 16x2 Character LCD - Red on Black 5V

This is a basic 16 character by 2 line display with a Black background and a Red backlight. Utilizes the extremely common HD44780 parallel interface chipset ( datasheet ). Interface code is freely available. You will need ~11 general I/O pins to interface to this LCD screen.

Our Code: SKU-000120

Supplier Link: [SparkFun MPN:791]


Description

This is a basic 16 character by 2 line display with a Black background and a Red backlight. Utilizes the extremely common HD44780 parallel interface chipset (datasheet). Interface code is freely available. You will need ~11 general I/O pins to interface to this LCD screen. Includes red LED backlight. These modules are the thin type.


Dimensions:3.15" x 1.425" x 0.300"
