RoundyPi

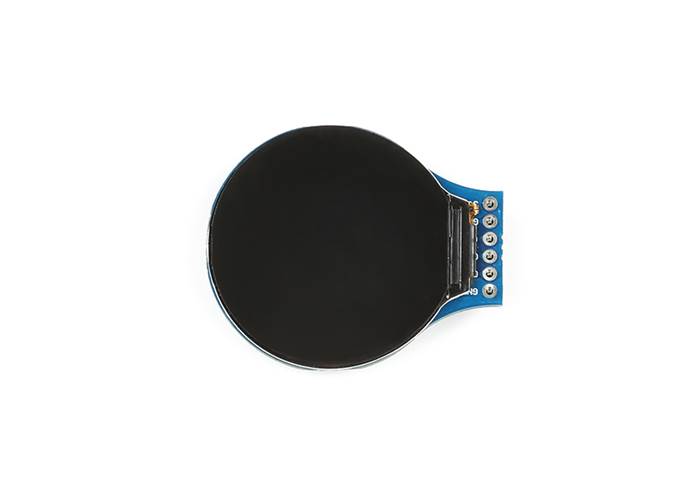

RoundyPi is a round LCD display based on RP2040 along with a compact and stylish 1.28-inch display module of 240×240 resolution, 65K RGB colors, clear and colourful displaying effect, expanding its engagement with your project.

Not currently available

Our Code: SKU-009446

Supplier Link: [SparkFun MPN:19896]


Description

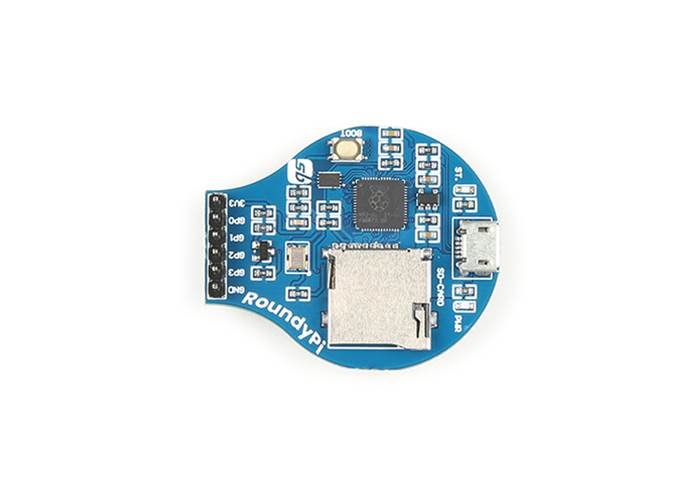

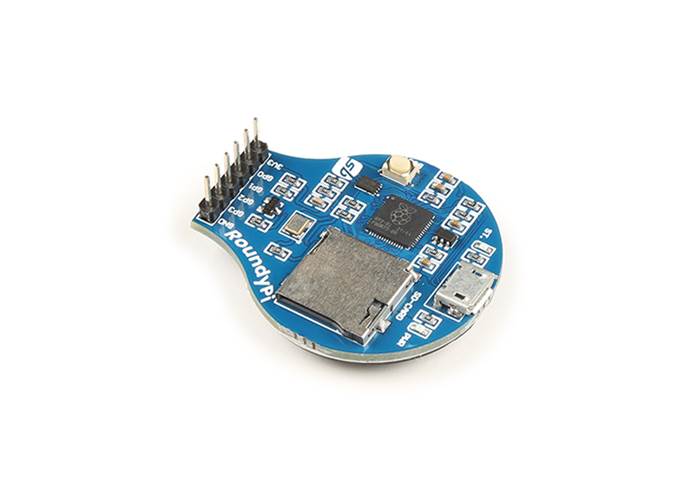

RoundyPi is a round LCD display based on RP2040 along with a compact and stylish 1.28-inch display module of 240×240 resolution, 65K RGB colors, clear and colourful displaying effect, expanding its engagement with your project. RoundyPi comes with an embedded GC9A01 Driver and SPI Interface that minimise the required IO pins.

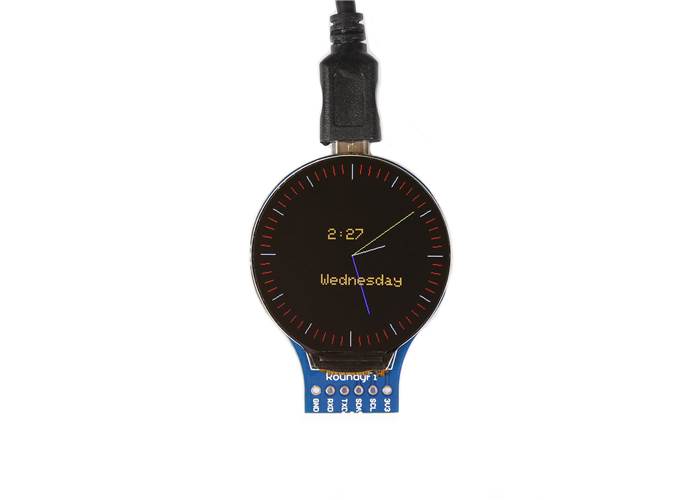

The RoundyFi makes creating colour LCD projects on a circular screen quite easy with Raspberry Pi support and examples for getting you started.


Specifications

  • 1.28 inch LCD
    • GC9A01 Driver
    • 240 x 240 Pixel Resolution
    • 65K RGB Colour
  • RP2040 MCU
  • 3.3V Operating Voltage
  • USB Port (USB MicroB)
    • Data and Power Transmission
  • Interface Pins
    • 4 GPIO
    • 1 GND
    • 1 Power
  • SPI Interface
