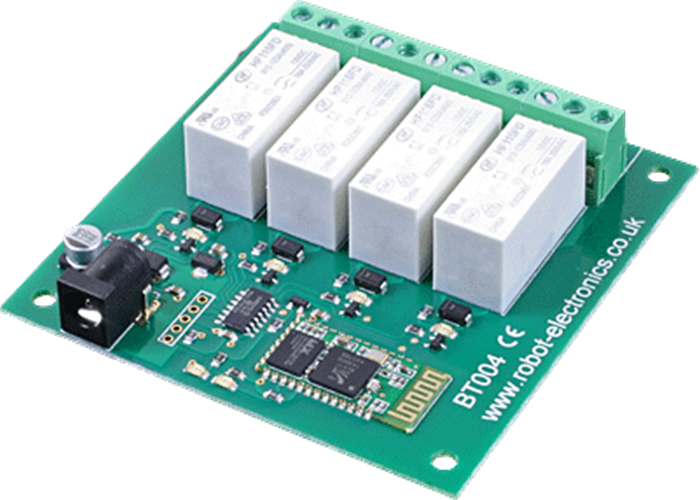

4 Channel 16 Amp Relay Module with Bluetooth (BT004)

The "BT004" allows you to control 4, 16 Amp relays over an Bluetooth connection using a built in web page or via simple TCP/IP based commands. Screw terminals on normally open, normally closed and common relay pins allow for easy connection.

AUD$ 88.95

In stock in Australia

We can ship more in 7 days

Our Code: MCU-60154

Overview

The BT004 provides four volt free contact relay outputs with a current rating of up to 16Amp each controlled over a HC06 Bluetooth serial port. The module is powered from a 12vdc supply which can be regulated or unregulated. The DC input jack is 2.1mm with positive core polarity, DC supplies are required to supply at least 500mA at 12vdc. The relays are SPCO (Single Pole Change Over) types. The normally open, normally closed and common pins are all available on the screw terminals.

Specifications

  • Controlled over Bluetooth using simple binary or ASCII commands.
  • Relays - 4
  • Power - 12V DC adaptor, supplied separately.
  • Relay current - Up to 16Amp @24vdc or 250vac
  • Connections - Screw Terminals for N/O N/C and Common contacts.

Full BT004 Documentation

Free Android App available to remotely control this module.
