Cluster HAT

This is a pretty straight-forward HAT for bringing simple cluster computing to the Raspberry Pi A+ and B+ lines. The Cluster HAT from 8086 allows for up to 4 Raspberry Pi Zero or Zero W boards to be connected to a Raspberry Pi A+ or B+ based board (A+/B+/2/3/4).

AUD$ 82.95

Special Order

We can ship 212 more in 7-10 days

Our Code: SKU-007500

Supplier Link: [SparkFun MPN:18155]


Description

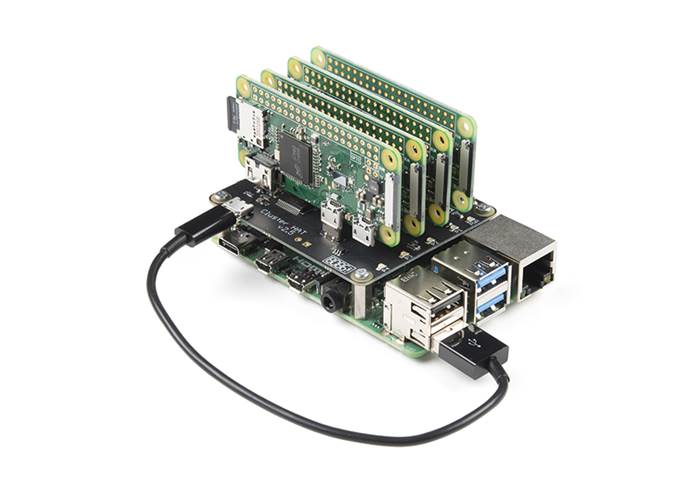

This is a pretty straight-forward HAT for bringing simple cluster computing to the Raspberry Pi A+ and B+ lines. The Cluster HAT from 8086 allows for up to 4 Raspberry Pi Zero or Zero W boards to be connected to a Raspberry Pi A+ or B+ based board (A+/B+/2/3/4). With the Pi Zeros in USB Gadget Mode, the system functions as a small-scale computer cluster. The Zeros plug directly into the HAT via on-board USB 2.0 MicroB connectors.

Note: This is just the HAT, USB interface cable, and mounting hardware. All Raspberry Pis must be purchased separately.

Includes:

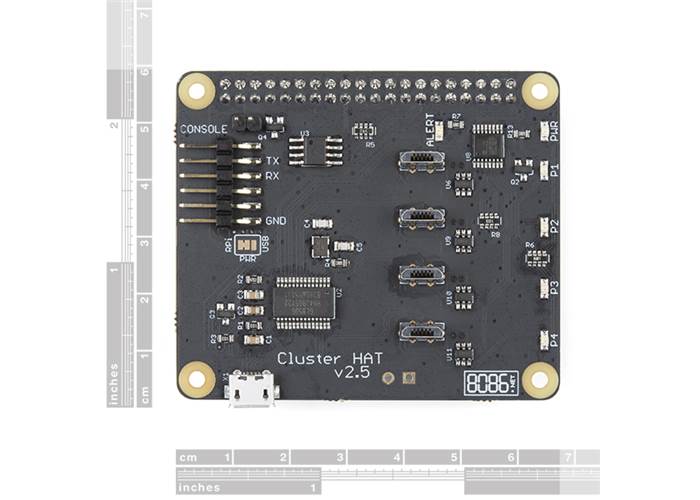

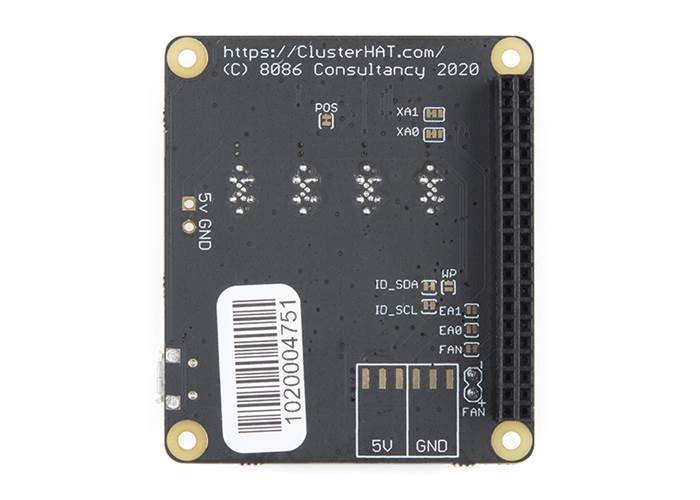

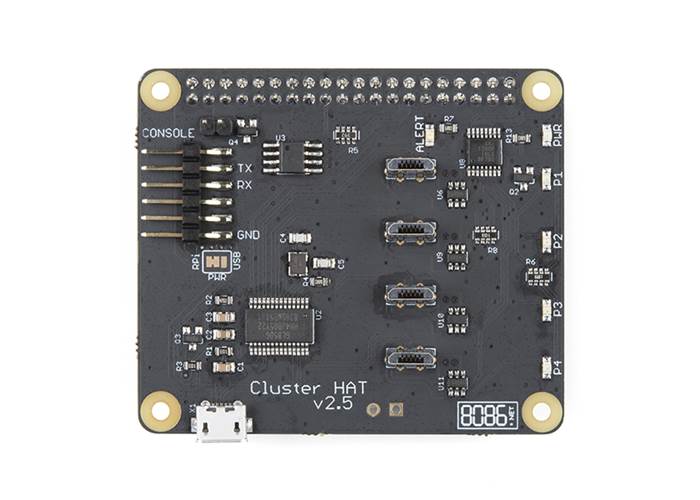

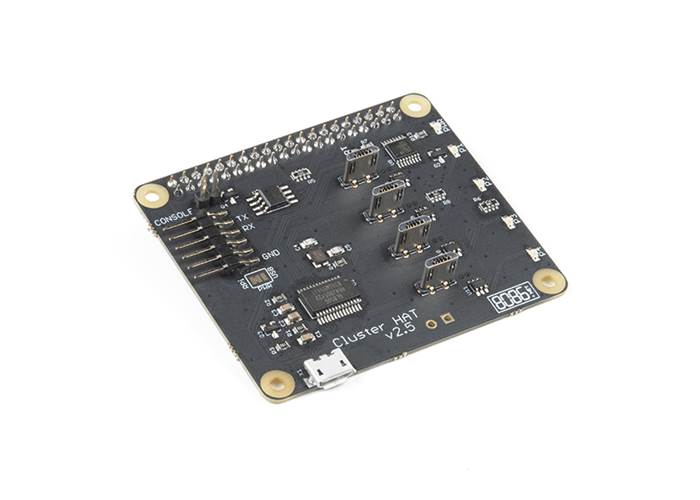

  • Cluster HAT

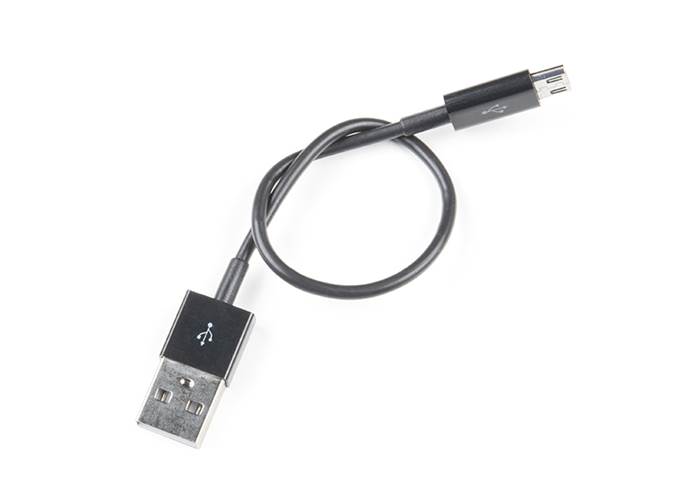

  • USB A to Micro B Cable (plugs HAT into host Pi)

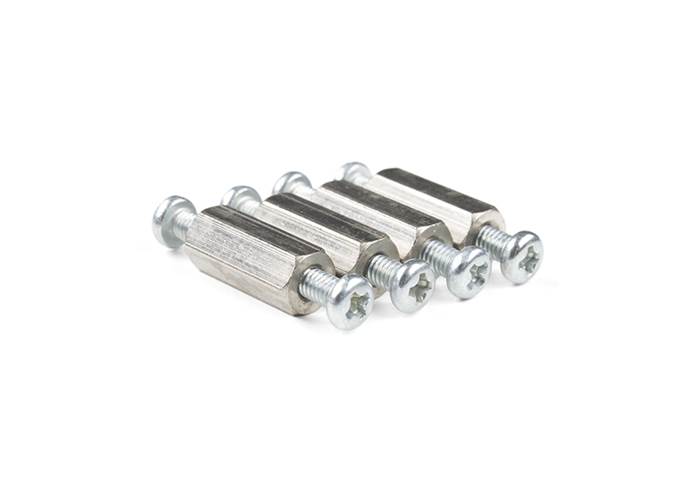

  • Mounting hardware

Specifications

  • USB Gadget Mode Functionality: Ethernet and Serial Console.
  • Onboard 4 port USB 2.0 hub.
  • Raspberry Pi Zeros are powered via Controller Pi GPIO (USB optional).
  • Individual Raspberry Pi Zero power controlled via Controller Pi GPIO (I2C).
  • Connector for Controller Serial Console (FTDI Basic).
  • Controller Pi can be rebooted without interrupting power to Pi Zeros, network recovers on boot.
