SparkFun MicroMod RP2040 Processor

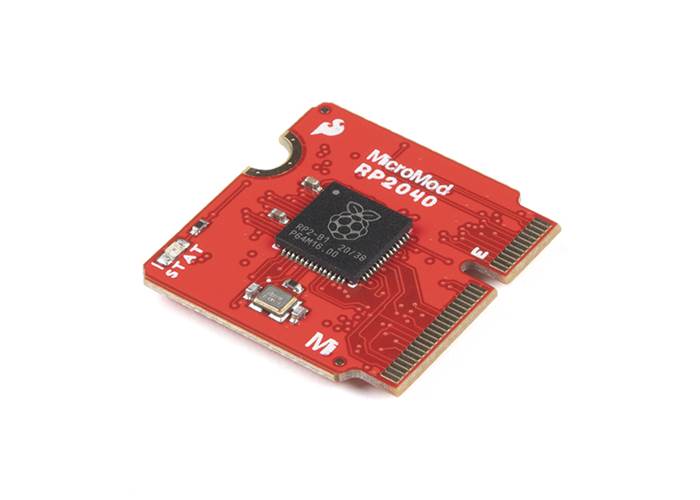

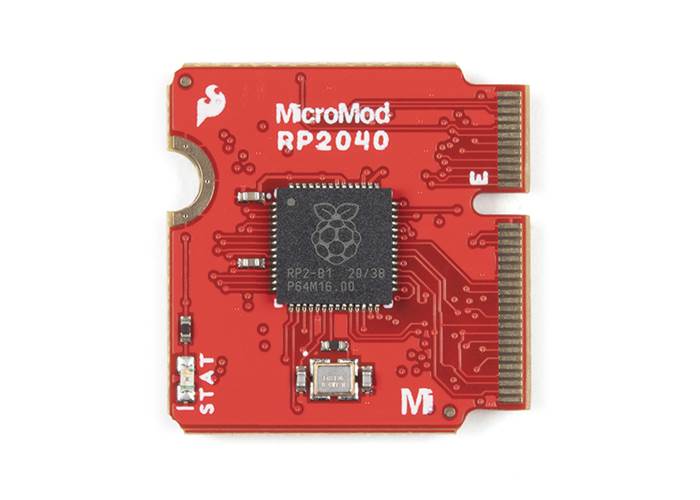

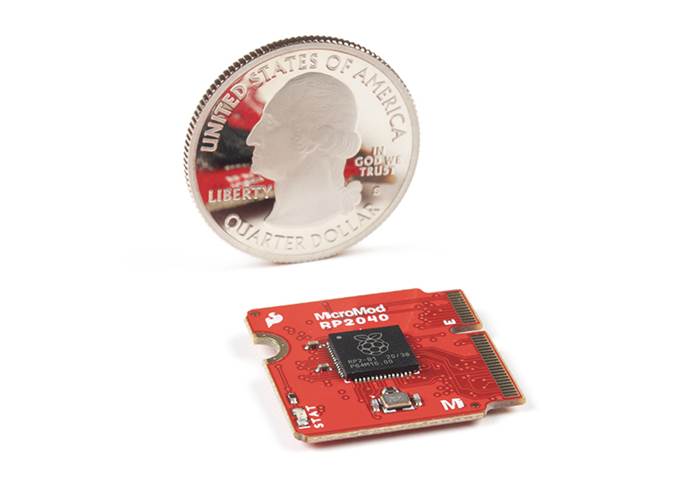

The SparkFun MicroMod Pi RP2040 Processor Board is a low-cost, high-performance board with flexible digital interfaces featuring the Raspberry Pi Foundation's RP2040 microcontroller. With the MicroMod M.2 connector, connecting your MicroMod Pi RP2040 Processor Board is a breeze.

AUD$ 22.95

Special Order

We can ship 31 more in 7-10 days

Our Code: SKU-007279

Supplier Link: [SparkFun MPN:17720]


Description

The SparkFun MicroMod Pi RP2040 Processor Board is a low-cost, high-performance board with flexible digital interfaces featuring the Raspberry Pi Foundation's RP2040 microcontroller. With the MicroMod M.2 connector, connecting your MicroMod Pi RP2040 Processor Board is a breeze. Simply match up the key on your processor's beveled edge connector to the key on the M.2 connector and secure it with a screw (included with all Carrier Boards).

The RP2040 utilizes dual ARM Cortex-M0+ processors (up to 133MHz):

  • 264kB of embedded SRAM in six banks
  • 6 dedicated IO for SPI Flash (supporting XIP)
  • 30 multifunction GPIO:
    • Dedicated hardware for commonly used peripherals
    • Programmable IO for extended peripheral support
    • Four 12-bit ADC channels with internal temperature sensor (up to 0.5 MSa/s)
  • USB 1.1 Host/Device functionality

The RP2040 is supported with both C/C++ and MicroPython cross-platform development environments, including easy access to runtime debugging. It has UF2 boot and floating-point routines baked into the chip. The built-in USB can act as both device and host. It has two symmetric cores and high internal bandwidth, making it useful for signal processing and video. While the chip has a large amount of internal RAM, the board includes an additional external flash chip.

Important: The SparkFun MicroMod RP2040 Processor is available for pre-order. We expect to have the first round of physical stock ready to ship by mid February. Orders will be fulfilled in the order they are received. If you are ordering this product alongside "Live/in-stock" products and want to receive these products ASAP, be sure to designate your order for split shipments in checkout.

MicroMod is a modular interface ecosystem that connects a microcontroller “processor board” to various “carrier board” peripherals. Utilising the M.2 standard, the MicroMod standard is designed to easily swap out processors on the fly. Pair a specialised carrier board for the project you need with your choice of compatible processor!



Specifications

RP2040 General Features

  • Dual Cortex M0+ processors, up to 133 MHz
  • 264 kB of embedded SRAM in 6 banks
  • 6 dedicated IO for QSPI flash, supporting execute in place (XIP)
  • 30 programmable IO for extended peripheral support
  • SWD interface
  • Timer with 4 alarms
  • Real time counter (RTC)
  • USB 1.1 Host/Device functionality
  • Supported programming languages
    • MicroPython
    • C/C++

Specific Peripherals made available on MicroMod RP2040

  • 1x USB dedicated for programming and debug (Host capable)
  • 2x UARTs
  • 2x I2C
  • 2x SPI
  • 29x GPIO
  • 2x Digital Pins
  • 3x Analogue Pins
  • 16x PWM

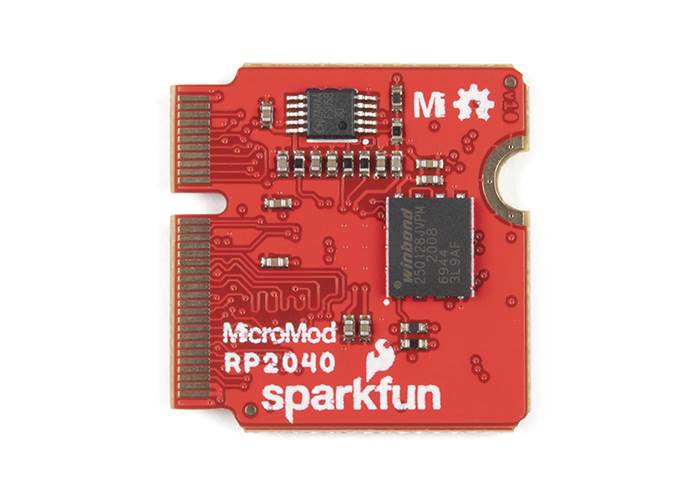

  • 128Mbit/16MB (external) flash memory
  • Status LED
  • VIN Level ADC

Resources

MicroMod Pi RP2040 Processor Documentation

MicroMod Documentation:
