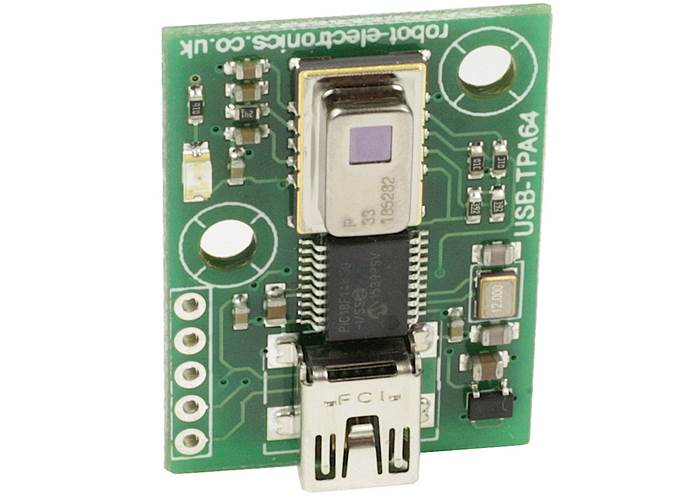

Devantech USB-TPA64 64 Pixel Thermal Imaging Sensor

The Devantech USB-TPA64 thermal imaging sensor measures temperatures from 0°c to +80°c using an 8 x 8 (64 Pixel) array providing an economical, low power and low computation way to detect objects that have different temperatures to their surroundings - like people. Connect using a USB interface.

AUD$ 106.95

In stock in Australia

We can ship more in 7 days

Our Code: SEN-010090

The Devantech USB-TPA64 thermal imaging sensor measures temperatures from 0°c to +80°c using an 8 x 8 (64 Pixel) array providing an economical, low power and low computation way to detect objects that have different temperatures to their surroundings - like people. The USB-TPA64 uses a USB connection to communicate with a computer. The TPA64 variant uses I2C.

Utilising the fantastic AMG8833 thermopile array from Panasonic, the USB-TPA64 offers a complete temperature imaging solution.

Video above is taken from our C# example. The top image is raw data painted to the screen, the bottom are after bilinear and bicubic interpolation. The sensor even shows a heatspot for the camera in the top right!

  • Temperature detection of two-dimensional area: 8 × 8 (64 pixels)
  • Temperature range of 0°c to +80°c
  • Temperature accuracy of +/- 2.5°c
  • Human detection at up to 7m
  • Viewing angle 60°, optical axis gap 5.6°
  • Weight is only 4g
  • Size 24mm x 32mm
