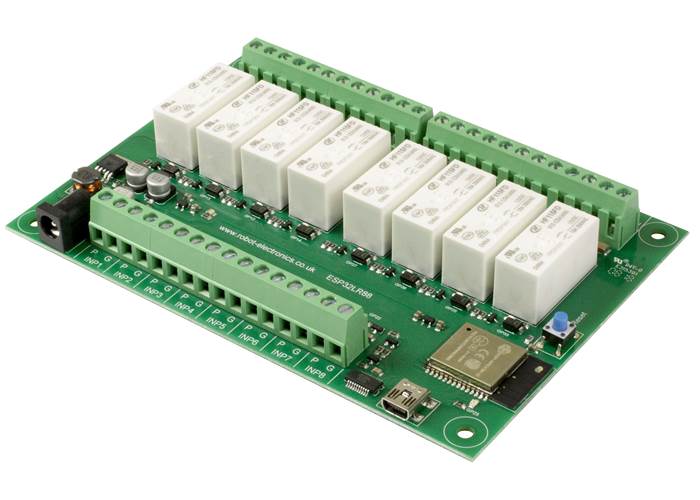

Programmable 8 Channel 16 Amp Relay Module with WiFi (ESP32LR88)

The ESP32LR88 is a WIFI connected relay module using the popular ESP32 and can be programmed like an Arduino. It provides 8 relays capable switching up to 16Amps for driving solenoids or inductive loads and 8 digital inputs with pull-ups than can interface directly with volt free contacts. A built in web page can be used to control the relays via any web browser.

AUD$ 129.95

In stock in Australia

We can ship more in 7 days

Our Code: MCU-060252

Overview

The ESP32LR88 is a WIFI connected relay module using the popular ESP32 and can be programmed like an Arduino. It provides 8 relays capable switching up to 16Amps and 8 digital inputs with pull-ups than can interface directly with volt free contacts. The normally open relay contacts have snubbers fitted across
them, and can drive inductive loads such as contactors and solenoids.

Power for the board is 12v dc, which can be provided by a standard universal wall power supply. A 1A or greater supply should be selected.

Built around the ESP-WROOM-32, the module is fully customisable around open source software.
Free Android and iPhone Apps are available to remotely control this module.

Control Protocols

1. Simple plain text commands sent to the module.
2. HTML commands
3. MQTT

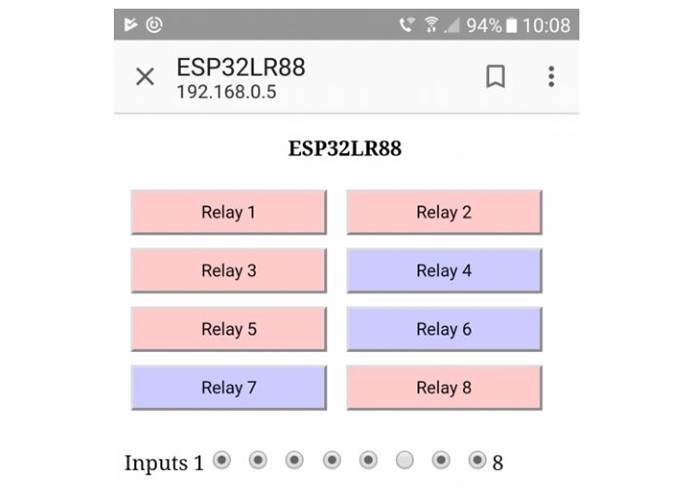

4. A built in webpage

Specifications

  • Digital Switching I/O's - 8
  • Relays - 8 x 16A
  • Power - 12V DC adaptor, supplied separately.
  • WIFI setup from a USB port
  • Configuration & Test interface - HTTP (webpage).
  • Control interface - TCP/IP.
  • Relay current - Up to 16Amp @24vdc or 250vac
  • Connections - Screw Terminals for N/O N/C and Common contacts.
