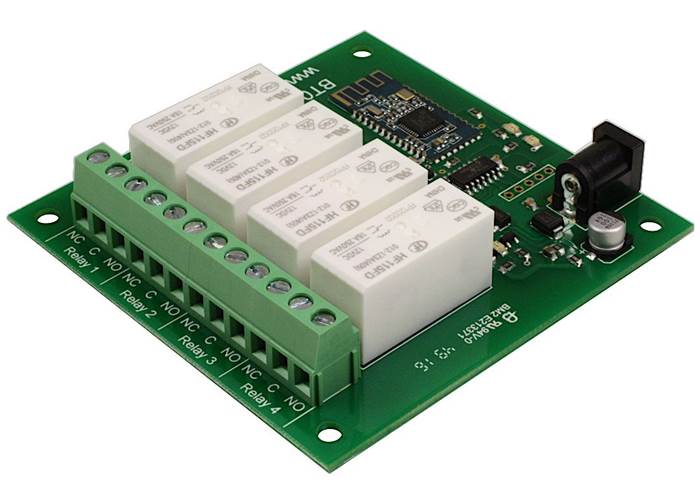

4 Channel 16 Amp Relay Module with Bluetooth (BT004BLE)

The "BT004BLE" allows you to control 4, 16 Amp relays over an Bluetooth connection using a built in web page or via simple TCP/IP based commands. Screw terminals on normally open, normally closed and common relay pins allow for easy connection. The BT004BLE is ideal for connection to Android or IOS devices, however we recommend the BT004 for Windows PC devices.

AUD$ 85.95

In stock in Australia

Shipping from $7.90

+lots more from our supplier in 7 days

Our Code: MCU-060251


The BT004BLE provides four volt free contact relay outputs with a current rating of up to 16Amp each controlled over a HM10 Bluetooth serial port. The module is powered from a 12vdc supply which can be regulated or unregulated. The DC input jack is 2.1mm with positive core polarity, DC supplies are required to supply at least 500mA at 12vdc. The relays are SPCO (Single Pole Change Over) types. The normally
open, normally closed and common pins are all available on the screw terminals.


Relays - 4
Power - 12V DC adaptor, supplied separately.
Relay current - Up to 16Amp @24vdc or 250vac
Connections - Screw Terminals for N/O N/C and Common contacts.

Full BT004BLE Documentation

Free Android App available to remotely control this module.
