Power HD Digital Micro High-Speed Servo DSM44

The DSM44 digital servo from Power HD is a micro servo with digital control electronics for enhanced performance and metal gears for increased durability. It is a great tiny actuator for robotic or RC mechanisms that need to be light, quick, and strong. Servo horns and associated hardware are included. Key specs at 6 V: 0.07 sec/60°, 22 oz-in (1.6 kg-cm), 6 g.

AUD$ 27.95

In stock in Australia

We can ship more in 7 days

Our Code: MEC-30113


Overview

The DSM44 digital servo from Power HD is a micro servo with digital control electronics for increased performance. It is one of the fastest and lightest micro servos we carry, making it a great tiny actuator for robot mechanisms that need to be light, quick, and strong. The output shaft is supported by a ball bearing for decreased friction, and most of the gears are metal for increased durability. The lead is terminated with a standard “JR”-style connector, which is Futaba-compatible. Servo horns and associated hardware are included, though the hardware might vary from what is shown in the picture below.

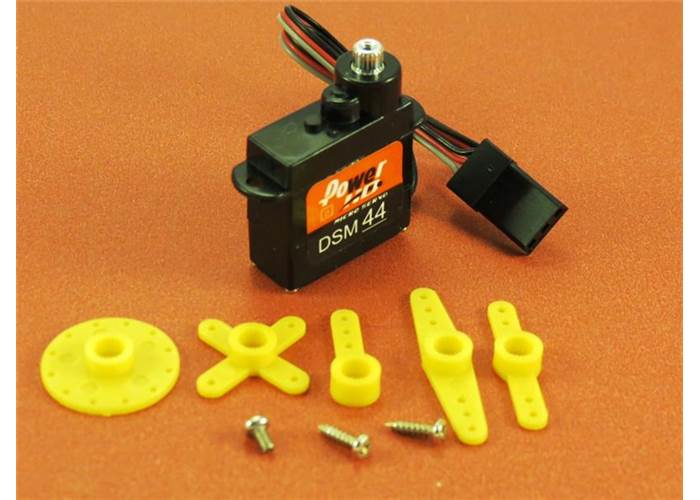

Power HD High-Speed Digital Micro Servo DSM44 - included hardware




Specifications

Dimensions

Size: 20 x 8.7 x 27 mm
Weight: 6 g

General specifications

Digital?: Y
Speed @ 6V: 0.07 sec/60°
Stall torque @ 6V: 1.6 kg·cm
Speed @ 4.8V: 0.09 sec/60°
Stall torque @ 4.8V: 1.2 kg·cm
Lead length: 16 cm
Hardware included?: Y
Maximum storage temperature: 60 °C
Maximum operating temperature: 50 °C
