SparkFun Adjustable LiPo Charger

Out of Local Stock

Back orders: Ship 38 units in 7 days

Our Code: SKU-004298

Supplier: [SparkFun MPN:14380]

The SparkFun Adjustable LiPo Charger is a single-cell lithium polymer (LiPo) and lithium ion battery charger. Because it’s adjustable, this charger will be able to safely charge most of our single-cell batteries with ease.


Description

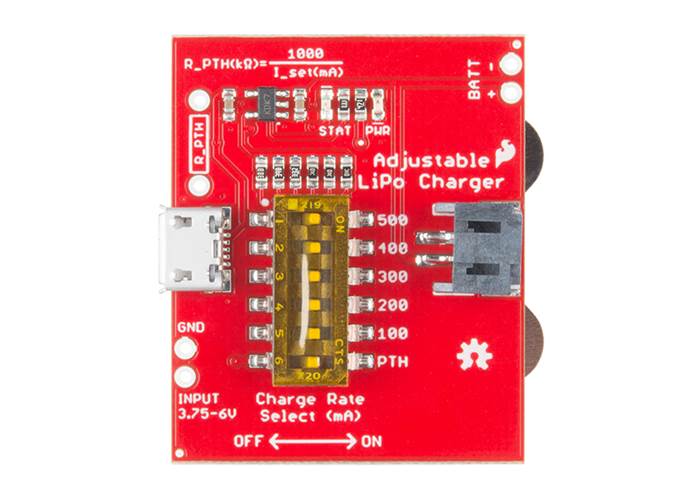

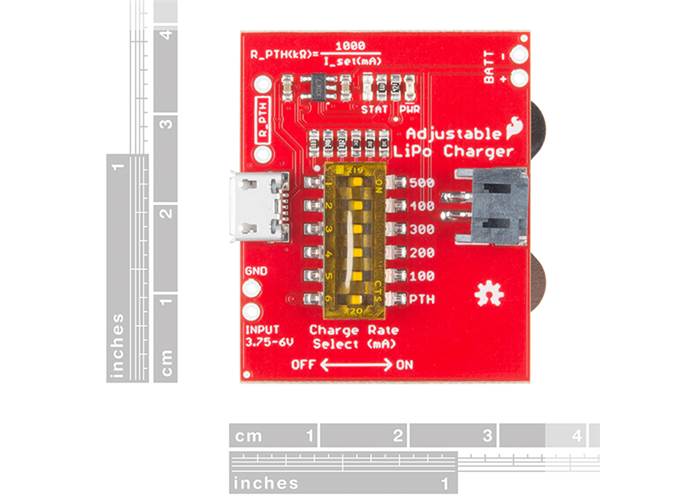

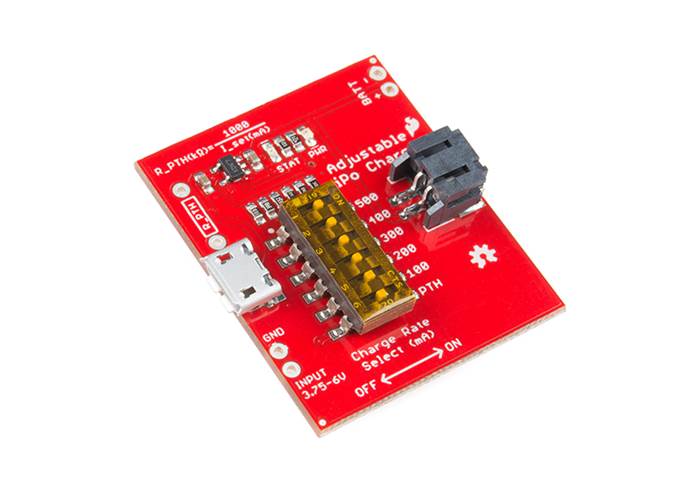

The SparkFun Adjustable LiPo Charger is a single-cell lithium polymer (LiPo) and lithium ion battery charger. Because it’s adjustable, this charger will be able to safely charge most of our single-cell batteries with ease. With its onboard charge rate selector, you will be able to set the maximum amount of current to charge your battery from 15mA to 500mA.

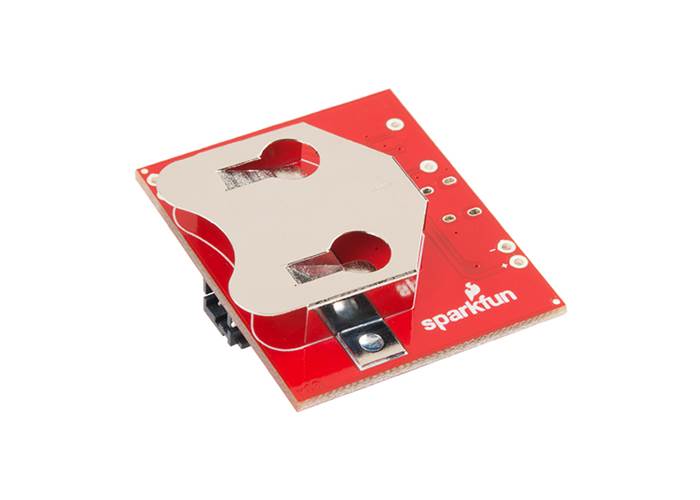

Once the board is configured for the battery, you can connect power from either a microUSB cable or the pins below the USB connector labelled GND and INPUT. Once power is connected, you can install a single LiPo battery to one of the three battery connectors, the JST connector, PTH pins marked BATT, or the 2450 coin cell holder on the back of the board. The input voltage for the MCP73831 charger IC is between 3.75V and 6V. To fully charge a LiPo battery, it is recommended to have a voltage of around 5V. The charge IC will regulate the voltage down to safely charge the LiPo battery.

Note: The switches on the Adjustable LiPo Charger come shipped with all the switches in the ON position. Before configuring the board, all the switches should be moved to the OFF position.

Get Started with the SparkFun Adjustable LiPo Charger Guide


Specifications

  • Operating Voltage: 3.75V to 6V
  • Adjustable Current: 15mA–500mA
  • Three Battery Input Options
    • JST Connector
    • PTH Pins
    • Coin Cell Holder (2450)
  • Charge Status LED
  • Custom Charge Rate Settings
